Remove Passenger's Side Wiper Arm Cover

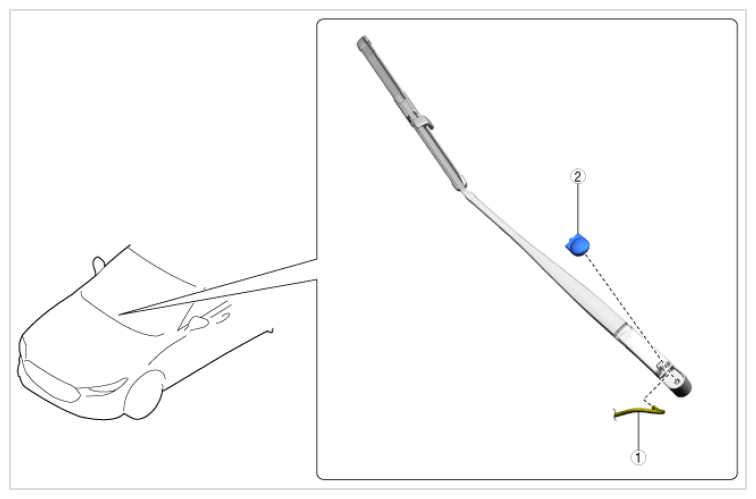

  1. Remove using the procedure shown in the figure below.
G16707176Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Windshield washer hose
2 Passenger's side wiper arm cover
