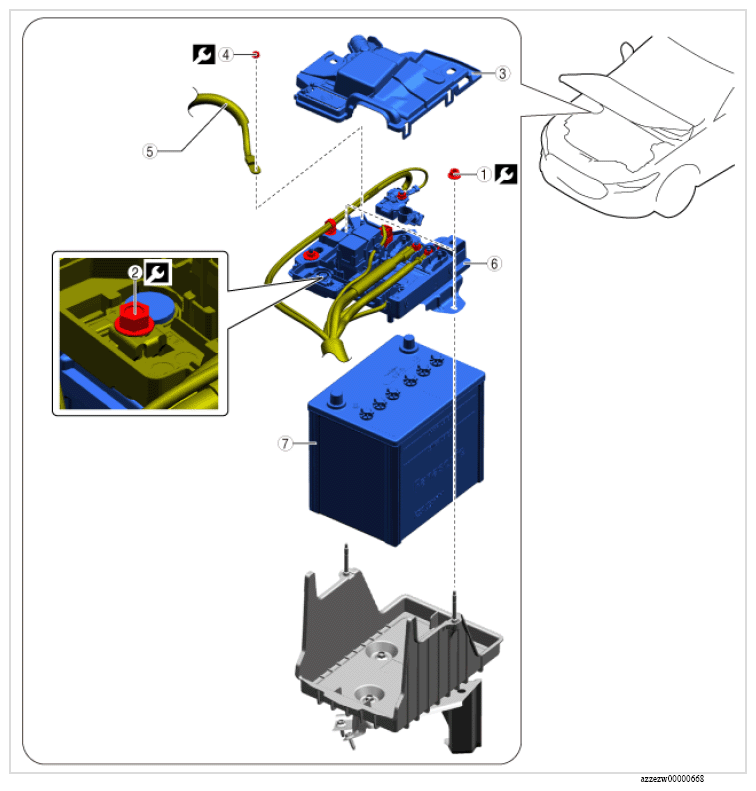

Remove Lead-Acid Battery: Notes
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Nut | 6 N.m {61 kgf.cm, 53 in.lbf} |
| 2 | Bolt | 5 N.m {51 kgf.cm, 44 in.lbf} |
| 3 | Lead-acid battery cap | - |
| 4 | Nut | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 5 | Starter wiring harness | - |
| 6 | Lead-acid battery (plus) terminal component | - |
| 7 | Lead-acid battery (See LEAD-ACID BATTERY REMOVAL NOTE ) |
- |
