Remove USB Power Socket

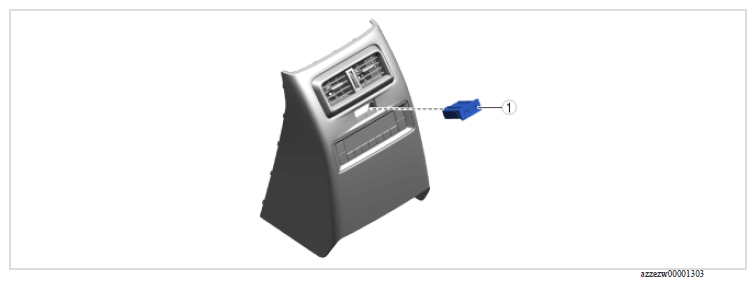

  1. Remove using the procedure shown in the figure.
G16713421Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 USB power socket
