Remove Driver Side Front Seat: Notes

WARNING:

Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the AIR BAG SYSTEM SERVICE WARNINGS and/or AIR BAG SYSTEM SERVICE CAUTIONS Service Information before handling a seat (side air bag integrated).
If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat may operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, try moving it back and forth to verify that the sliding mechanisms on both sides are locked. (with manual seat)

CAUTION:

After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever. (with manual seat)

Courtesy of MAZDA MOTORS CORP.

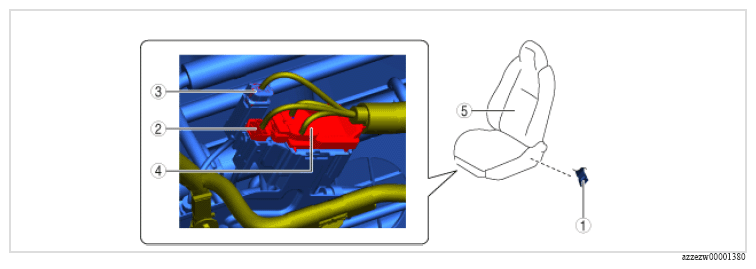

PART NAME DESCRIPTION

Step	Part name	Applicable condition
1	Front seat belt lower anchor (See Front seat belt lower anchor removal note ).	-
2	Connector	With position memory system
3	Connector	With side air bag
4	Connector (See Connector disconnection note ).	-
5	Driver side front seat	-
