Tie-rod End Assembly Note

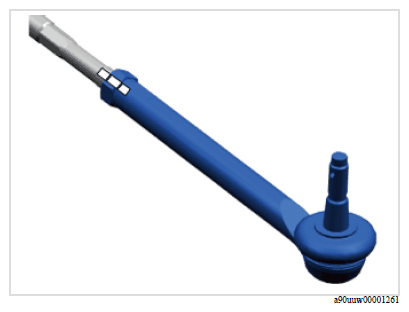

- Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.
- The figure shows the left side (same as right side).

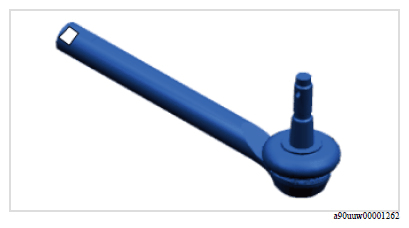

NOTE:- When newly replacing a tie-rod end, place alignment marks on the new part in the same position as the Installed tie-rod end.

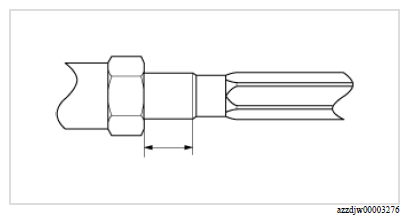

- Verify that dimension shown in the figure is within the standard.
- The figure shows the left side (same as right side).
SYMBOL AND CONTENT DESCRIPTIONSymbol Content 3.7-16.7 mm {0.15-0.65 in} - If not within the standard, make adjustments so that dimension is within the standard.
