Wiper and washer switch removal note

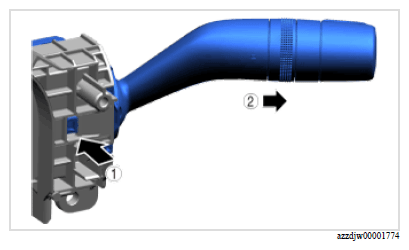

  1. Remove the wiper and washer switch as shown in the figure.
G16712229Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
