Door Glass Removal/Installation: Removal

Perform the door glass preparation. (See DOOR GLASS PREPARATION .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Remove the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)

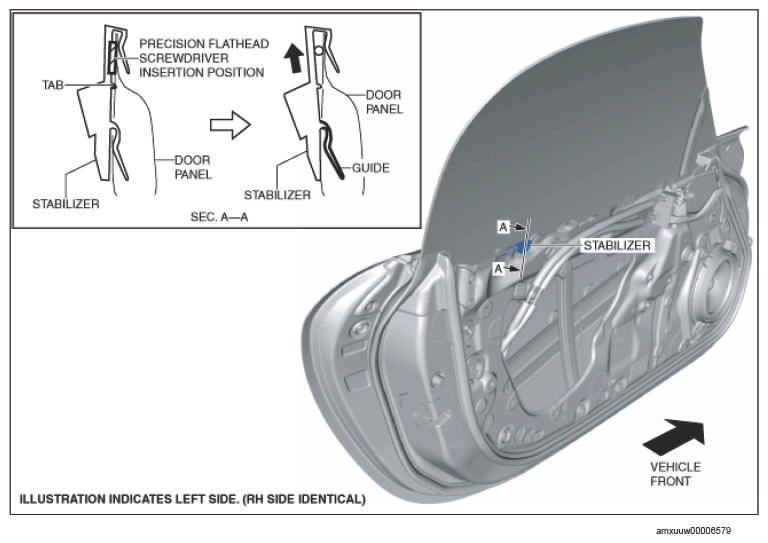

Insert a precision flathead screwdriver into the position shown in the figure and detach the stabilizer tab.

Courtesy of MAZDA MOTORS CORP.

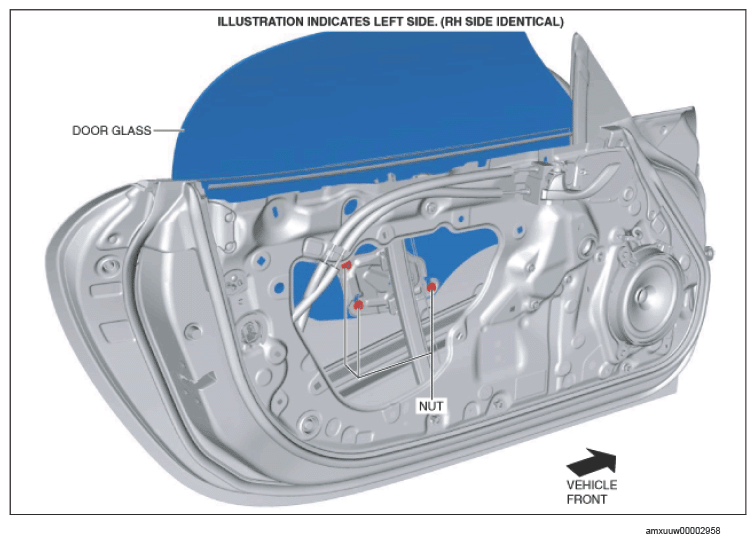

Remove the nuts.

Courtesy of MAZDA MOTORS CORP.

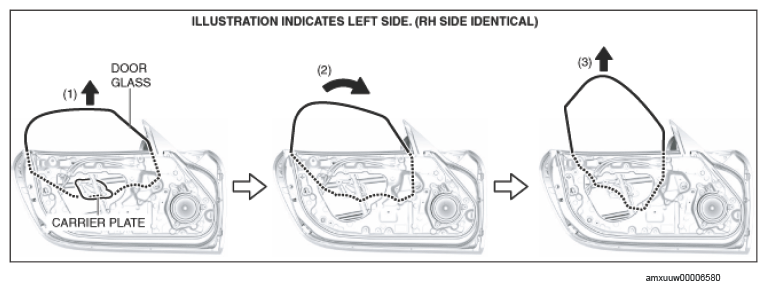

Lift up the door glass in the direction of arrow (1) avoiding the carrier plate shown in the figure, and while tilting it in the direction of arrow (2), move it in the direction of arrow (3) to remove it from the door.

Courtesy of MAZDA MOTORS CORP.
