Steering Gear And Linkage Assembly: Notes

Special Service Tool (SST)

49 JP02 001 Adjustable wrench

Courtesy of MAZDA MOTORS CORP.

49 T025 001 Boot clamp crimpers

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Boot band

Quantity: 2

Location of use: Boot

Oil and Chemical Type

Grease

Type: MOLYWHITE LSG

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Assemble in the order shown in the figure.
Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

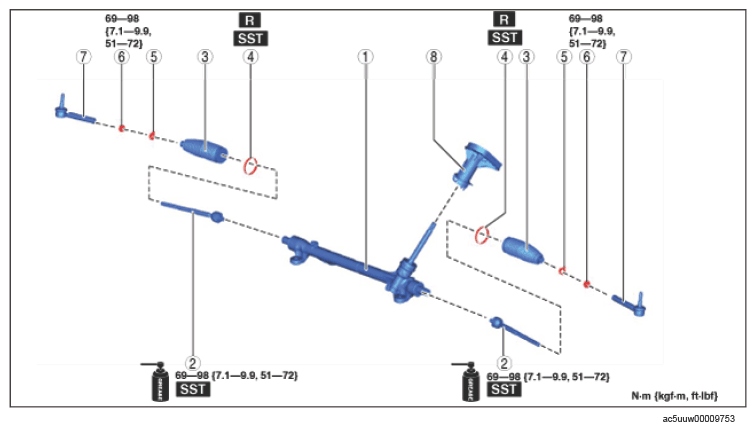

Fig 1: Steering Gear And Linkage Assembly Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

STEERING GEAR AND LINKAGE ASSEMBLY COMPONENT OPERATIONS

Component No.	Refer to
1	Steering gear
2	Tie Rod (See Tie Rod Assembly Note .)
3	Boot
4	Boot band (See Boot Band Assembly Note .)
5	Boot clamp
6	Locknut
7	Tie-rod end (See Tie-rod End Assembly Note .)
8	Dust cover
