Not P Position Switch Inspection

NOTE:
  • The not P position switch is built into the selector lever component.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    4. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)

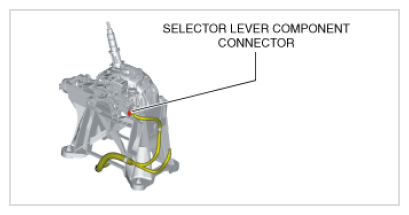

  3. Disconnect the selector lever component connector.
    G16331823Courtesy of MAZDA MOTORS CORP.

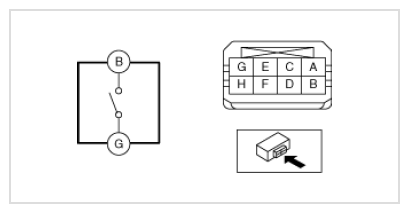

  4. Verify that the continuity between selector lever component terminals B and G.
G16331824Courtesy of MAZDA MOTORS CORP.
NOT P POSITION SWITCH SPECIFICATION

Test condition Continuity
Selector lever is in the P position. No continuity
Selector lever is not in the P position. Continuity
