Drive Selection Switch Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [VIN L] )
  3. Measure the resistance between drive selection switch terminals B and C under the following conditions.

    Resistance when drive selection switch pressed to - side (backward) and held

    • 0 ohms

    Resistance when drive selection switch pressed to SPORT side (forward) and held

    • 465.3-474.7 ohms

    Resistance when any switch not pressed

    • 2643.3-2696.7 ohms

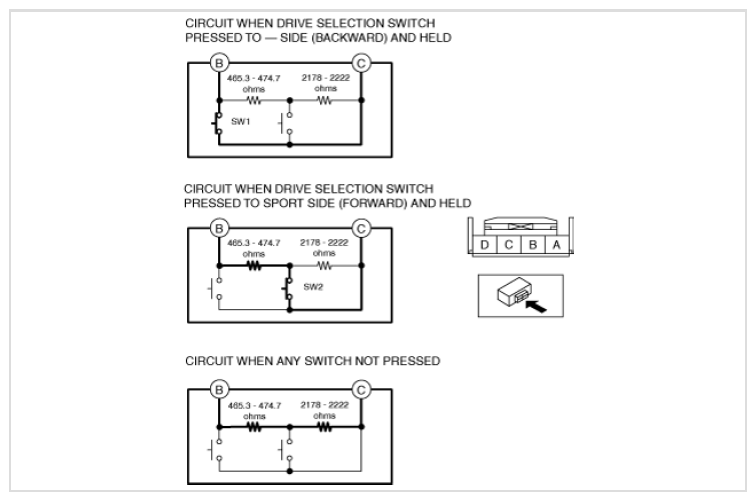

    G16328053Courtesy of MAZDA MOTORS CORP.
