Remove Body Control Module (BCM) Bracket

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

Remove using the procedure shown in the figure below.

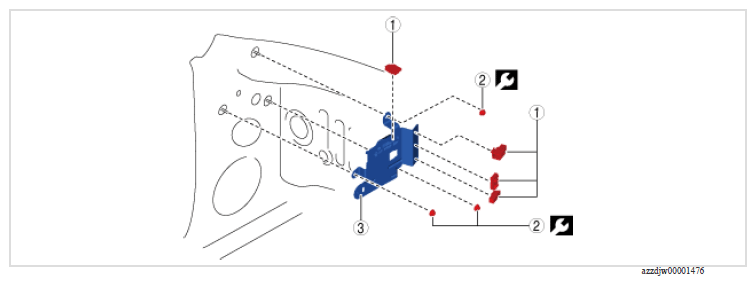

Fig 1: Body Control Module Bracket, Clip And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Clip	-
2	Nut	10.5 N.m {107 kgf.cm, 93 in.lb}
3	Body control module (BCM) bracket	-
