Body control module (BCM) removal note

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

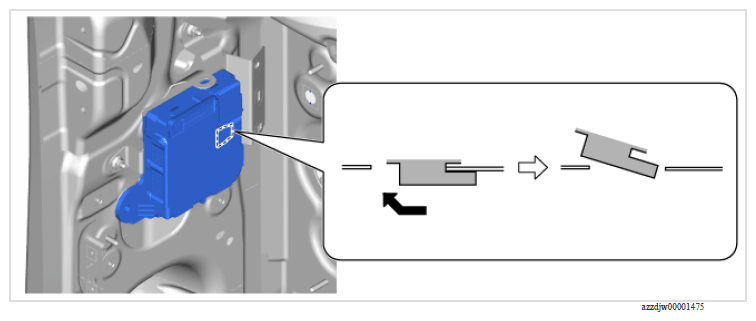

  1. Remove the Body Control Module (BCM) as shown in the figure below.
G16716053Courtesy of MAZDA MOTORS CORP.
