BOSCH Cis-E System
>>
Description
>>
Fuel Injection Layout
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Fuel Injection Layout

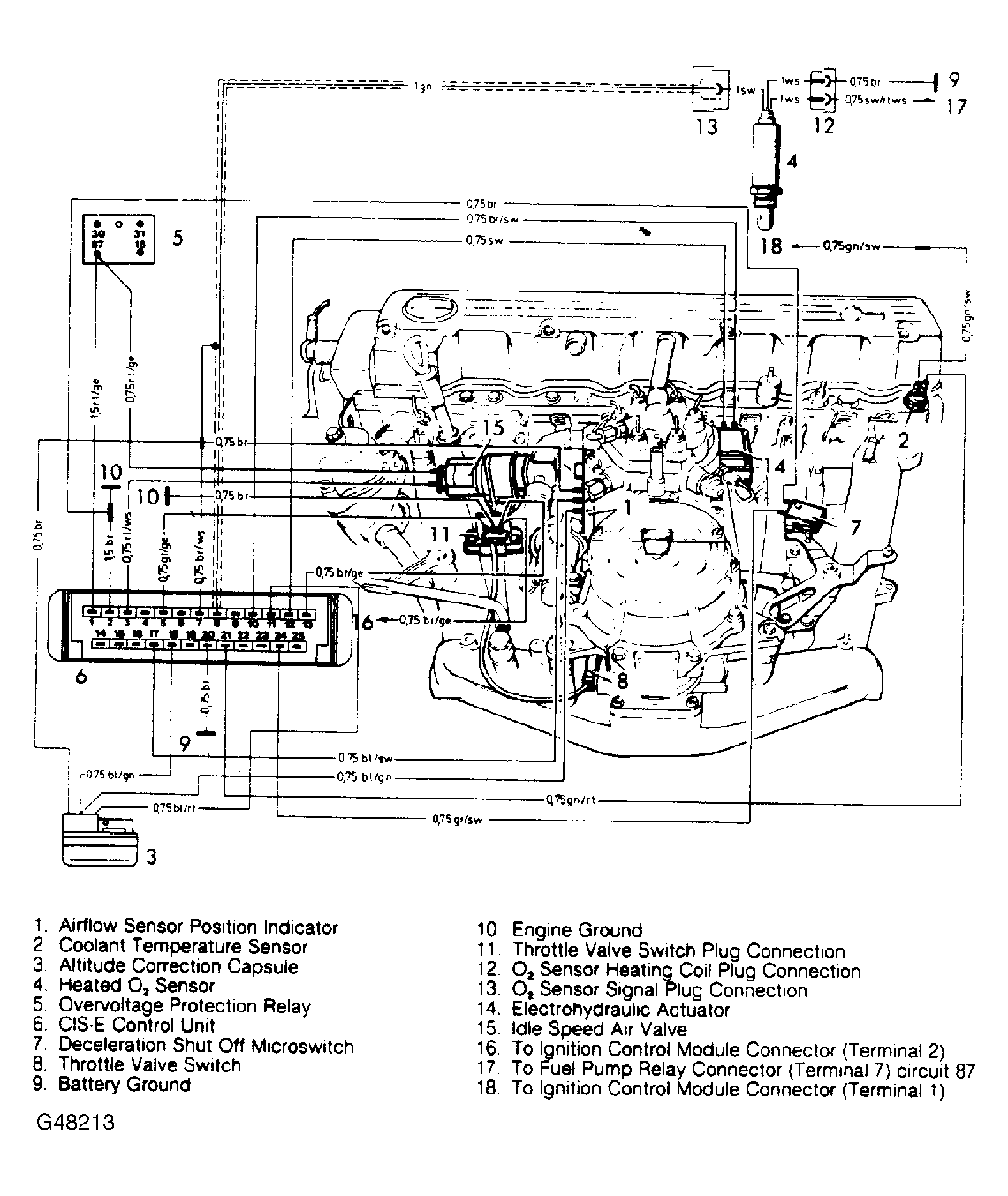

Fig 1: 190E 2.6L CIS-E Fuel Injection Layout

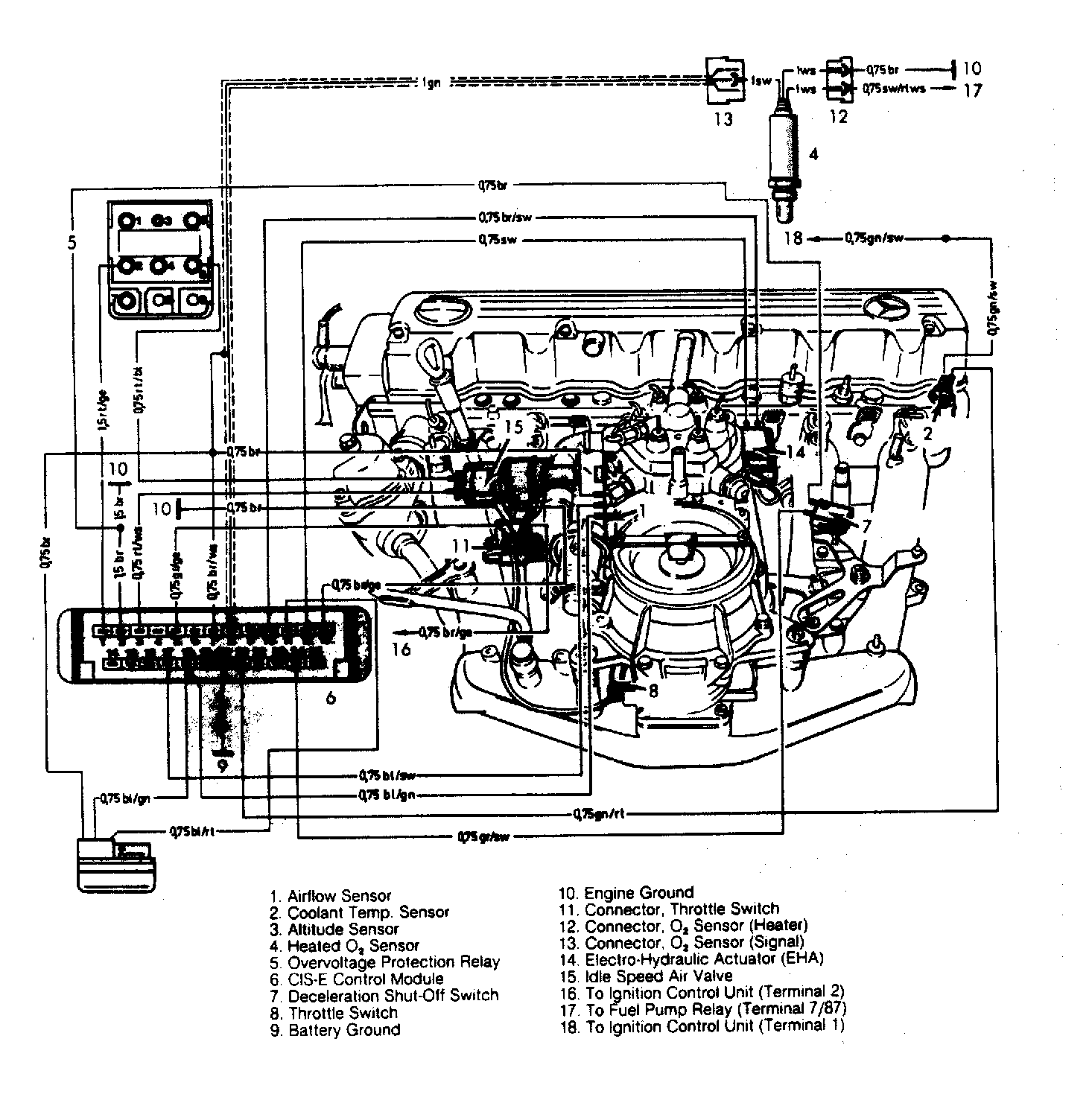

Fig 2: 300E CIS-E Fuel Injection Layout
