Trouble Shooting

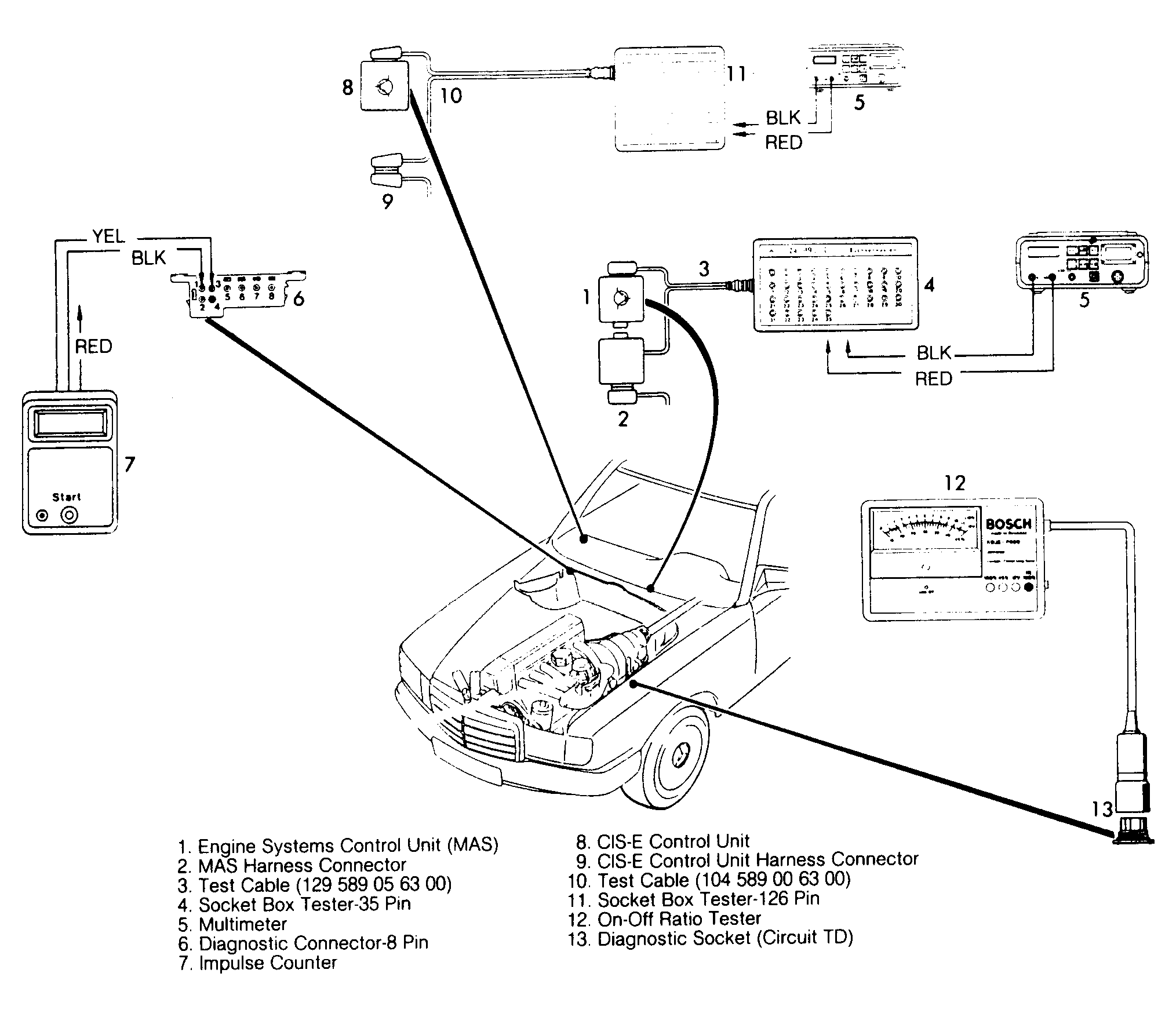

TROUBLE SHOOTING - IGNITION ON, ENGINE OFF
| On-Off Ratio % Readout | Malfunction | Test Step |
|---|---|---|
| 0 | Not Used | Not Used |
| 10 | Throttle Valve Switch Idle Contacts Open | 10.0-10.3 |
| 20 | Throttle Valve Switch Full Load Contacts Closed | 5.0-5.3 |
| 30 | Coolant Temp. Not Between 158°-212°F (70°-100°C) | 6.0-6.3 |
| 40 | Airflow Sensor Plate Deflected | 7.0-7.6 |
| 50 | Input Signals In Order | N/A |
| 60 | Speed Signal Recognized | 11.0-11.2 |
| 70 | Starter Signal Circuit No. 50 Recognized | 20.0 |
| 80 | Drive Position Selected | N/A |
| 90 | Current at EHA Unlikely | 4.0-4.4 |
| 100 | Not Used | N/A |
COOLANT TEMPERATURE SENSOR SPECIFICATIONS
| °F (°C) | Ohms | Volts at Socket |
|---|---|---|
| -4 -(20) | 15,700 | 3.24-3.94 |
| 14 (-10) | 9200 | 2.84-3.47 |
| 32 (0) | 5900 | 2.39-2.93 |
| 50 (10) | 3700 | 1.94-2.37 |
| 68 (20) | 2500 | 1.51-1.84 |
| 86 (30) | 1700 | 1.16-1.42 |
| 104 (40) | 1180 | 0.88-1.08 |
| 122 (50) | 840 | 0.66-0.80 |
| 140 (60) | 600 | 0.50-0.61 |
| 158 (70) | 435 | 0.38-0.46 |
| 176 (80) | 325 | 0.29-0.35 |
| 194 (90) | 247 | 0.22-0.26 |
MALFUNCTION DIAGNOSTIC CODES (IMPULSE READOUT OF CIS-E CONTROL UNIT)
| Code No. | Malfunction | Test Step | Possible Cause |
|---|---|---|---|
| 1 | No System Malfunction | N/A | N/A |
| 2 | TV Switch Contacts-Full Load | 5.0-5.3 | Short in ckt 31 |
| 3 | Coolant Temp. Sensor | 6.0-6.3 | Short in ckt 15, 30, &/or 31 |
| 4 | Airflow Sensor Position Indicator | 7.0-7.6 | Short in ckt 15, 30, &/or 31 |
| 5 | Oxygen Sensor | 14.0-14.3 | N/A |
| 6 | Not Used | Not Used | Not Used |
| 7 | NA Signal (RPM) | 8.0-8.1 | Open ckt |
| 8 | Altitude Pressure Signal | Vacuum Line or EZL | Control Unit |
| 9 | Electro-Hydraulic Actuator (EHA) | 4.0-4.4 | Short in ckt 15, 30, &/or 31 |
| 10 | TV Switch-Idle Contacts | 10.0-10.3 | Short in ckt 31 |
| 11 | Air Injection System | 16.0-16.4 | Pneumatic |
| 12 | Absolute Pressure Values From EZL Control Unit | Vacuum line or EZL | Control Unit |
| 13 | Intake Air Temp. Sensor | 13.0-13.3 | Short in ckt 15, 30, &/or 31 |
| 14 | Speed Signal Sensor | 11.0-11.2 | Short in ckt 15, 30, &/or 31 |
| 15 | Not Used | Not Used | Not Used |
| 16 | EGR | 21.0-22.2 | Electric/Pneumatic |
| 17 | O2 Sensor Wire Shorted to B+ or Ground | 14.0-14.3 | Short in ckt 15, 30, &/or 31 |
| 18 | Idle Speed Air Valve | 18.0-18.3 | Short in ckt 15, 30, &/or 31 |
| 19 | Not Used | Not Used | Not Used |
| 20 | Not Used | Not Used | Not Used |
| 21 | Not Used | Not Used | Not Used |
| 22 | O2 Sensor Heating Current | 14.4-14.8 | N/A |
| 23 | Purge Switchover Valve Shorted to B+ | 19.1-19.4 | Short in ckt 15, &/or 30 |
| 24 | Not Used | Not Used | Not Used |
| 25 | Start Valve Shorted to B+ | 17.0-17.2 | Short in ckt 15, &/or 30 |
| 26 | Shift Point Delay Shorted to B+ | N/A | N/A |
| 27 | Data Exchange Between CIS-E Control Unit & EZL Control Unit Interrupted | 12.0 | Check if control units are compatible |
| 28 | Coolant Temp. Sensor Intermittent | N/A | Repair wiring or unit |
| 29 | CIS-E & EZL control units read different temperature | 6.0-6.3 | Check CTS ckt to EZL |
| 30 | Not Used | Not Used | Not Used |
| 31 | Intake Air Temp. Intermittent | N/A | Repair wiring or replace unit |
| 32 | Not Used | Not Used | Not Used |
| 33 | Not Used | Not Used | Not Used |
| 34 | EZL control unit reading unlikely temp. | N/A | Short in ckt 15, 30, &/or 31, or CTS ckt shorted to EZL |
TROUBLE SHOOTING - ENGINE AT IDLE
| On-Off Ratio % Readout | Malfunction | Test Step | ||
|---|---|---|---|---|
| 0 | Open in ground ckt at diagnostic connector pin socket No. 2. Open ckt in wire to diagnostic connector pin socket No. 3 or No. 6, or on-off ratio tester is defective. Mixture adjustment possibly too rich. | (1) Repair as necessary | ||
| 10 | Airflow sensor position indicator polarity reversed or defective | 7.0-7.6 | ||
| 10 | Connector terminals of throttle valve switch reversed (idle and full load contacts) | 5.0-5.3 | ||
| 10 | Idle contacts open with microswitch closed | 10.0-10.3 | ||
| 20 | Full load contacts defective or throttle valve switch polarity reversed | 5.0-5.3 | ||
| 20 | 20% is displayed only when microswitch activated | Repair as necessary | ||
| 30 | Short or open ckt between CIS-E control unit and coolant temp. sensor | 6.0-6.3 | ||
| 30 | Defective coolant temperature sensor, or excessive deviation in temperature values in comparison with EZL ignition control unit | Repair as necessary | ||
| 40 | Open or short in airflow sensor position indicator wiring, or defective airflow sensor position indicator | 7.0-7.6 | ||
| 50 | O2 sensor not operational or defective, or open in ckt | 14.0-14.3 | ||
| 60 | Unlikely speed signal at CIS-E control unit | 11.0-11.2 | ||
| 70 | Unlikely TNA-signal (RPM) at CIS-E control unit | 8.0-8.1 | ||
| 80 | Interrupted data exchange between EZL ignition control unit & CIS-E control unit | 12.0 | ||
| 90 | Unlikely current reading at EHA | 4.0-4.4 | ||
| 95 | Deceleration fuel shut-off valve in operation | Repair as necessary | ||
| 100 | No voltage or ground at CIS-E control unit, or CIS-E control unit defective, or On-off ratio tester defective | 1.0-3.0 | ||
| 100 | Lambda adjustment too lean. O2 sensor defective (short to ground). 14.0-14.7 Needle Oscillates. No malfunctions of signals monitored | N/A | ||
|
||||
