Electrical System Test - Section 23 (Steps 15.0-18.0)

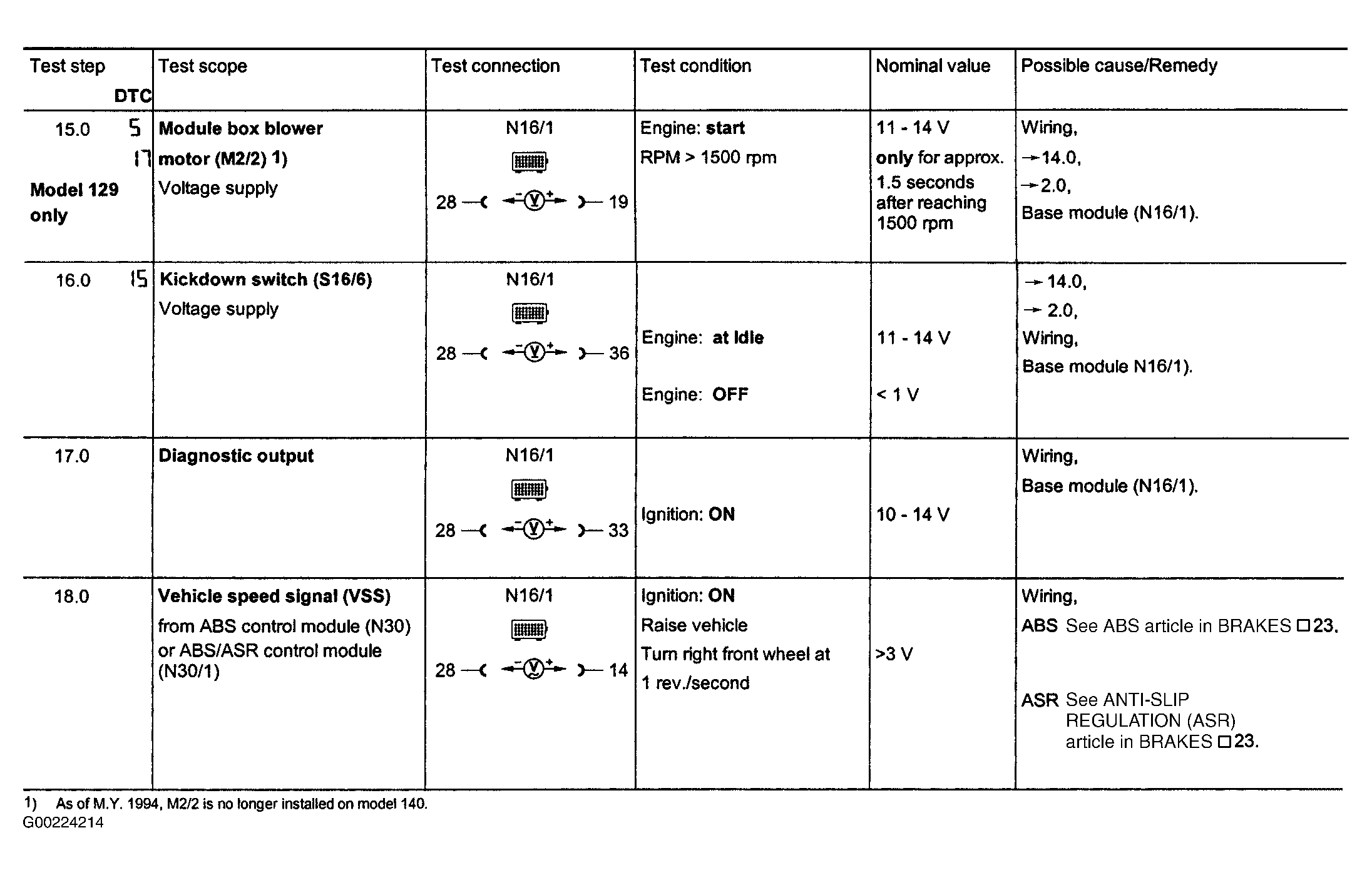

Fig 1: Electrical System Test - Section 23 (Steps 15.0-18.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
