Initial Programming Of Engine Control Module

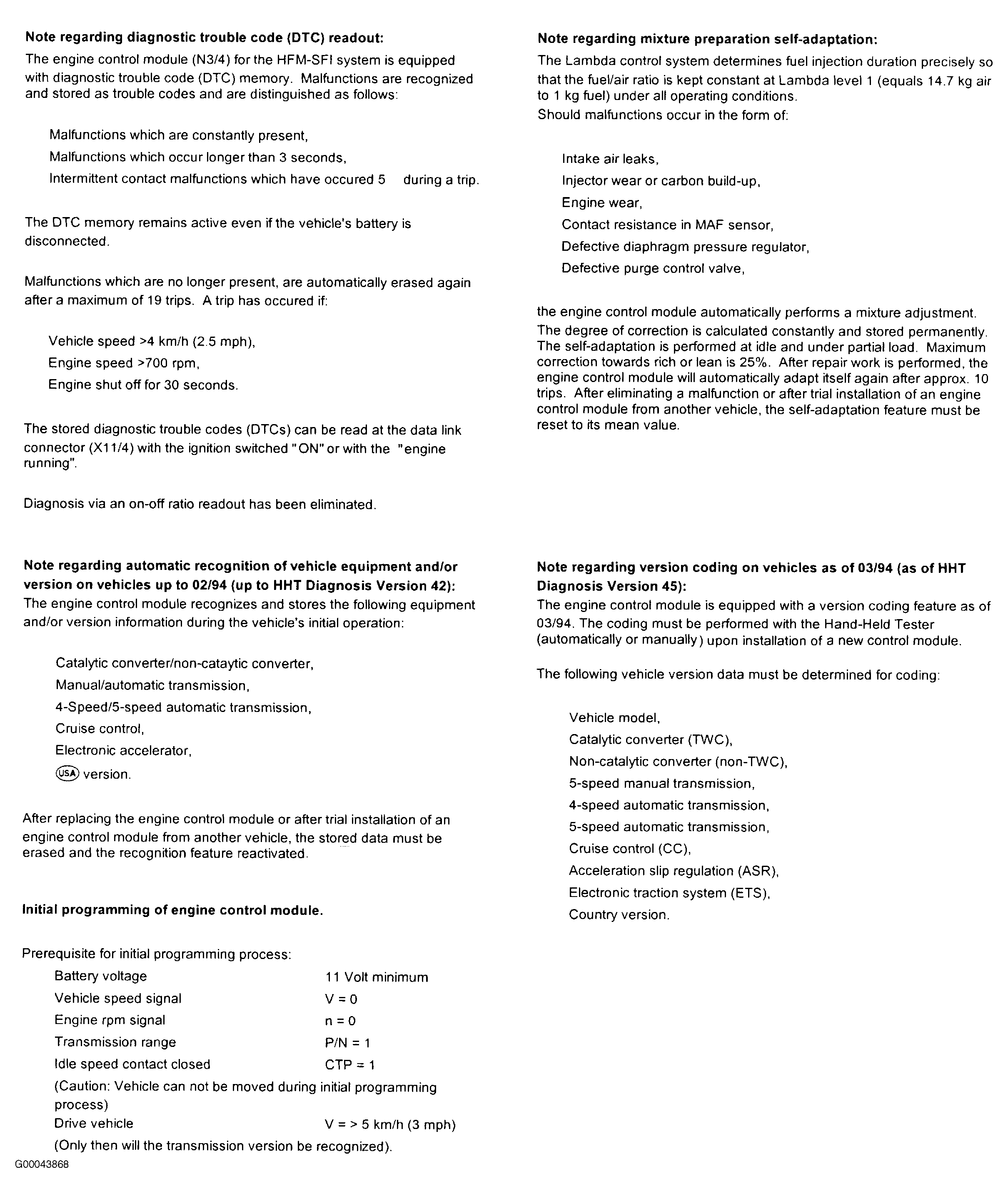

For initial programming of engine control module, see Figure.
