Diagnostic Trouble Code Memory

In Fig 1-Fig 11 the 1 and 2 digit codes in the left hand column are for generic scan tools. The 3 digit codes starting with zero or 1 are read from the Mercedes-Benz factory scan tool. To determine which illustration contains the appropriate information, see DIAGNOSTIC TROUBLE CODE IDENTIFICATION  table.

DIAGNOSTIC TROUBLE CODE IDENTIFICATION

Generic DTC Mercedes-Benz DTC See
1 - Fig 1
2 002 Fig 1
2 003 Fig 1
2 004 Fig 1
2 005 Fig 1
3 006 Fig 1
3 007 Fig 1
3 008 Fig 1
4 009 Fig 1
4 010 Fig 1
5 011 Fig 1
5 012 Fig 1
5 013 Fig 1
6 014 Fig 1
6 015 Fig 1
6 016 Fig 1
7 017 Fig 2
7 018 Fig 2
7 019 Fig 2
8 020 Fig 2
8 021 Fig 2
- 022 Fig 2
9 023 Fig 2
9 024 Fig 2
9 025 Fig 2
10 026 Fig 2
10 027 Fig 2
10 028 Fig 2
11 029 Fig 2
11 030 Fig 2
11 031 Fig 2
12 032 Fig 3
12 033 Fig 3
12 034 Fig 3
13 035 Fig 3
13 036 Fig 3
14 037 Fig 3
14 038 Fig 3
15 039 Fig 3
15 040 Fig 3
16 041 Fig 3
16 042 Fig 3
17 043 Fig 3
17 044 Fig 3
18-19 045-048 Fig 3
20 049 Fig 4
20 050 Fig 4
20 051 Fig 4
20 052 Fig 4
20 053 Fig 4
20 054 Fig 4
21 061-063 Fig 5
22 055 Fig 5
22 056 Fig 5
22 057 Fig 5
23 058 Fig 5
23 059 Fig 5
23 060 Fig 5
- 061-063 Fig 5
24 064 Fig 5
24 065 Fig 5
24 066 Fig 5
25 067 Fig 5
26 068 Fig 5
26 069 Fig 5
27 070 Fig 5
27 071 Fig 6
28 072 Fig 6
28 073 Fig 6
29 074-075 Fig 6
30 076 Fig 6
31 077 Fig 6
31 078 Fig 6
32 079 Fig 6
32 080 Fig 6
33 081 Fig 6
33 082 Fig 6
34 083 Fig 6
34 084 Fig 6
35 085 Fig 6
36 086 Fig 7
36 087 Fig 7
37 088 Fig 7
38 089 Fig 7
38 090 Fig 7
39 091 Fig 7
39 092 Fig 7
40 093-096 Fig 7
41 097 Fig 7
- 089-099 Fig 7
42 100 Fig 7
43 101 Fig 7
44 102 Fig 7
44 103 Fig 7
46-46 104-106 Fig 7
48 108 Fig 8
48 109 Fig 8
49 110 Fig 8
49 111 Fig 8
50 112 Fig 8
- 113 Fig 8
- 114 Fig 8
- 115 Fig 8
- 116 Fig 8
- 117 Fig 8
- 118 Fig 8
- 119 Fig 8
- 120 Fig 8
- 123 Fig 9
- 124 Fig 9
- 125 Fig 9
- 126 Fig 9
- 127 Fig 9
- 128 Fig 9
- 129 Fig 9
- 130 Fig 9
- 131 Fig 9
- 132 Fig 9
- 133 Fig 9
- 134 Fig 9
- 135 Fig 9
- 136 Fig 9
- 137 Fig 9
- 138 Fig 10
- 139 Fig 10
- 140 Fig 10
- 141 Fig 10
- 142 Fig 10
- 143 Fig 10
- 144 Fig 10
- 145 Fig 10
- 146 Fig 10
- 147 Fig 10
- 148 Fig 10
- 149 Fig 10
- 150 Fig 10
- 151 Fig 10
- 152 Fig 10
- 153 Fig 10
- 154 Fig 11
- 155 Fig 11
- 156 Fig 11
- 157 Fig 11
- 158 Fig 11
- 159 Fig 11
- 160 Fig 11
- 161 Fig 11
- 162 Fig 11
- 163 Fig 11
- 164 Fig 11

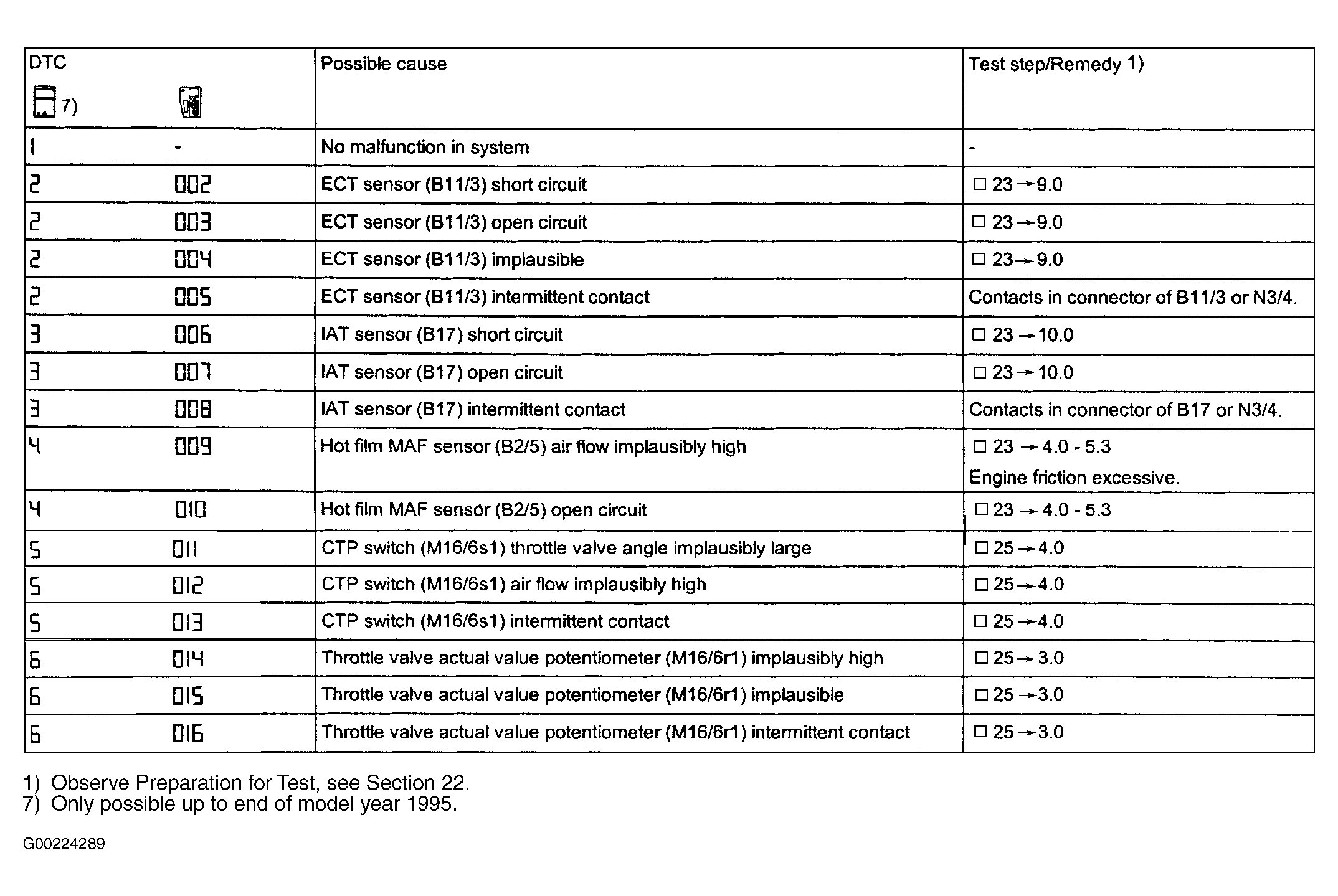

Fig 1: DTC Definitions (Generic OBD 1-6/MBZ 002-016)
G00224289Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

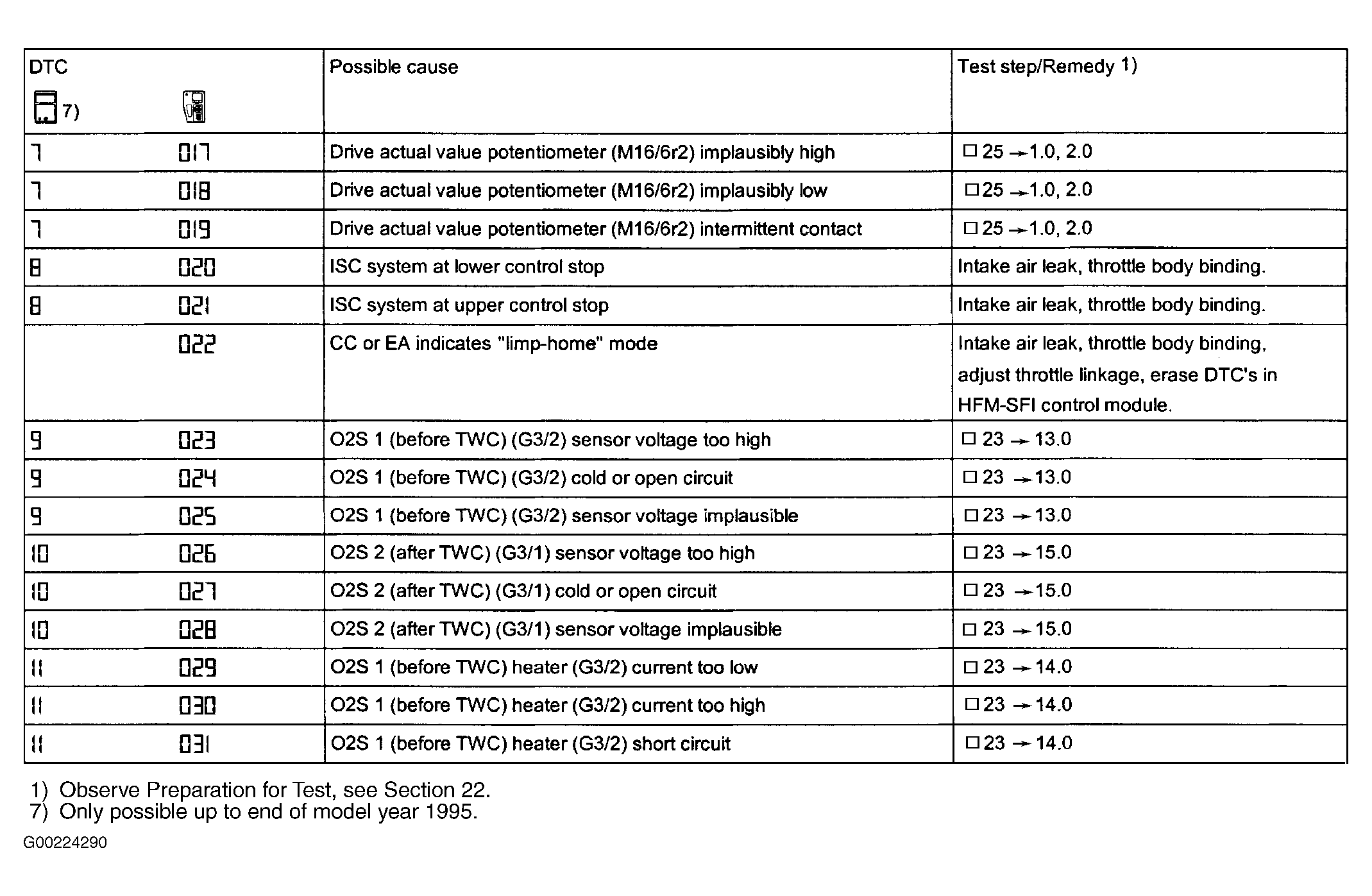

Fig 2: DTC Definitions (Generic OBD 7-11/MBZ 017-031)
G00224290Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

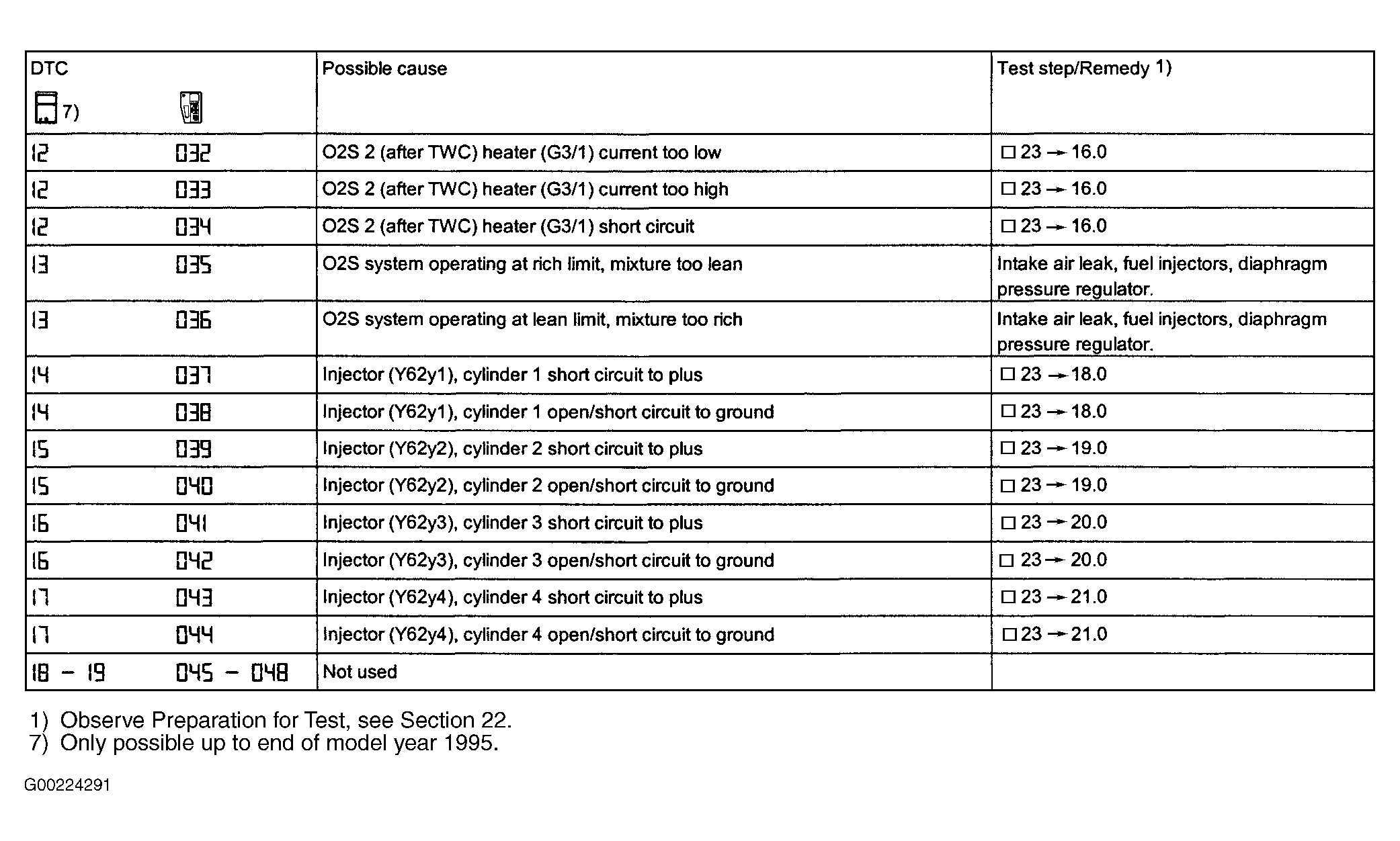

Fig 3: DTC Definitions (Generic OBD 12-19/MBZ 032-048)
G00224291Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

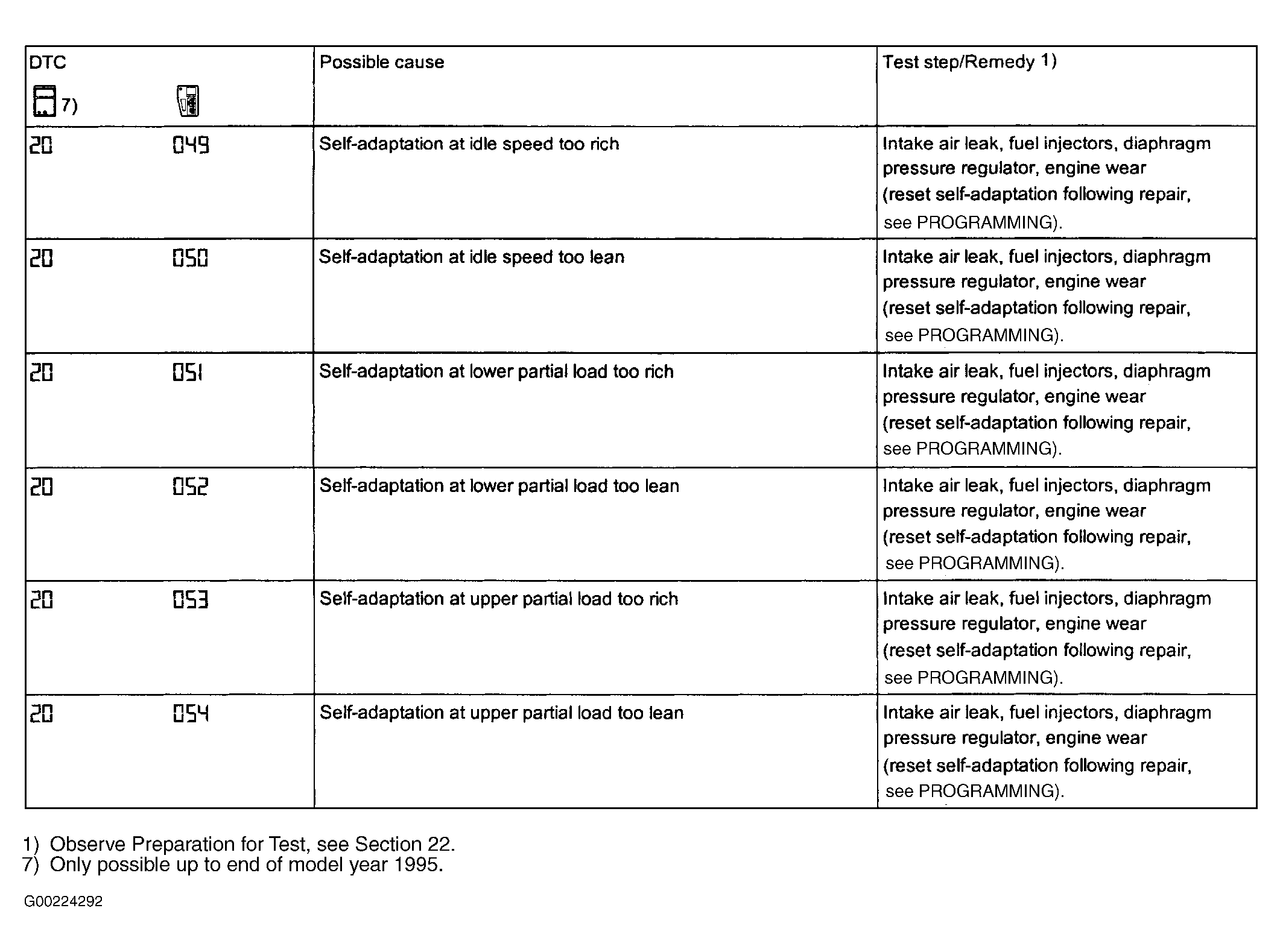

Fig 4: DTC Definitions (Generic OBD 20/MBZ 049-054)
G00224292Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

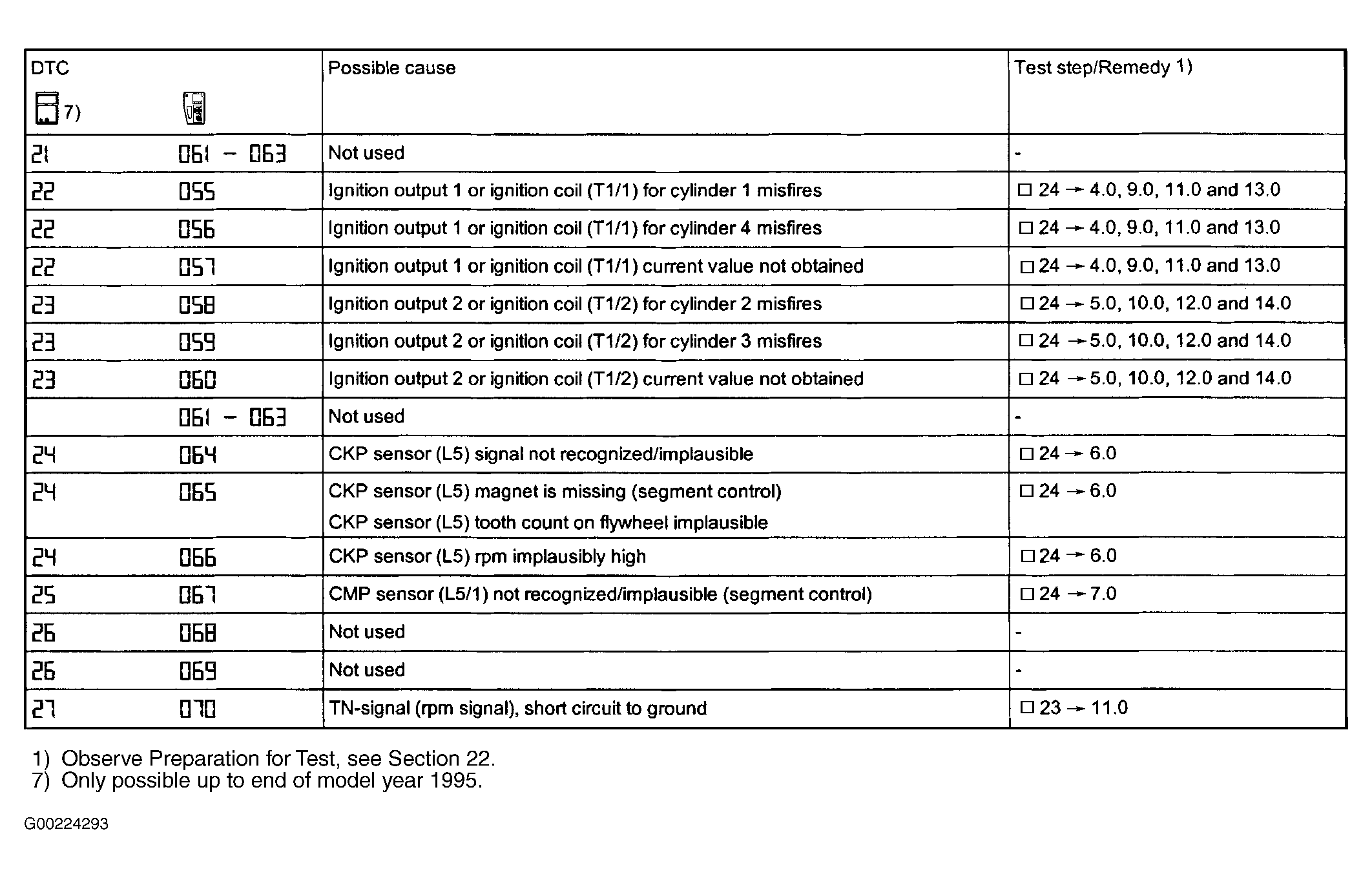

Fig 5: DTC Definitions (Generic OBD 20 cont.-27/MBZ 055-070)
G00224293Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

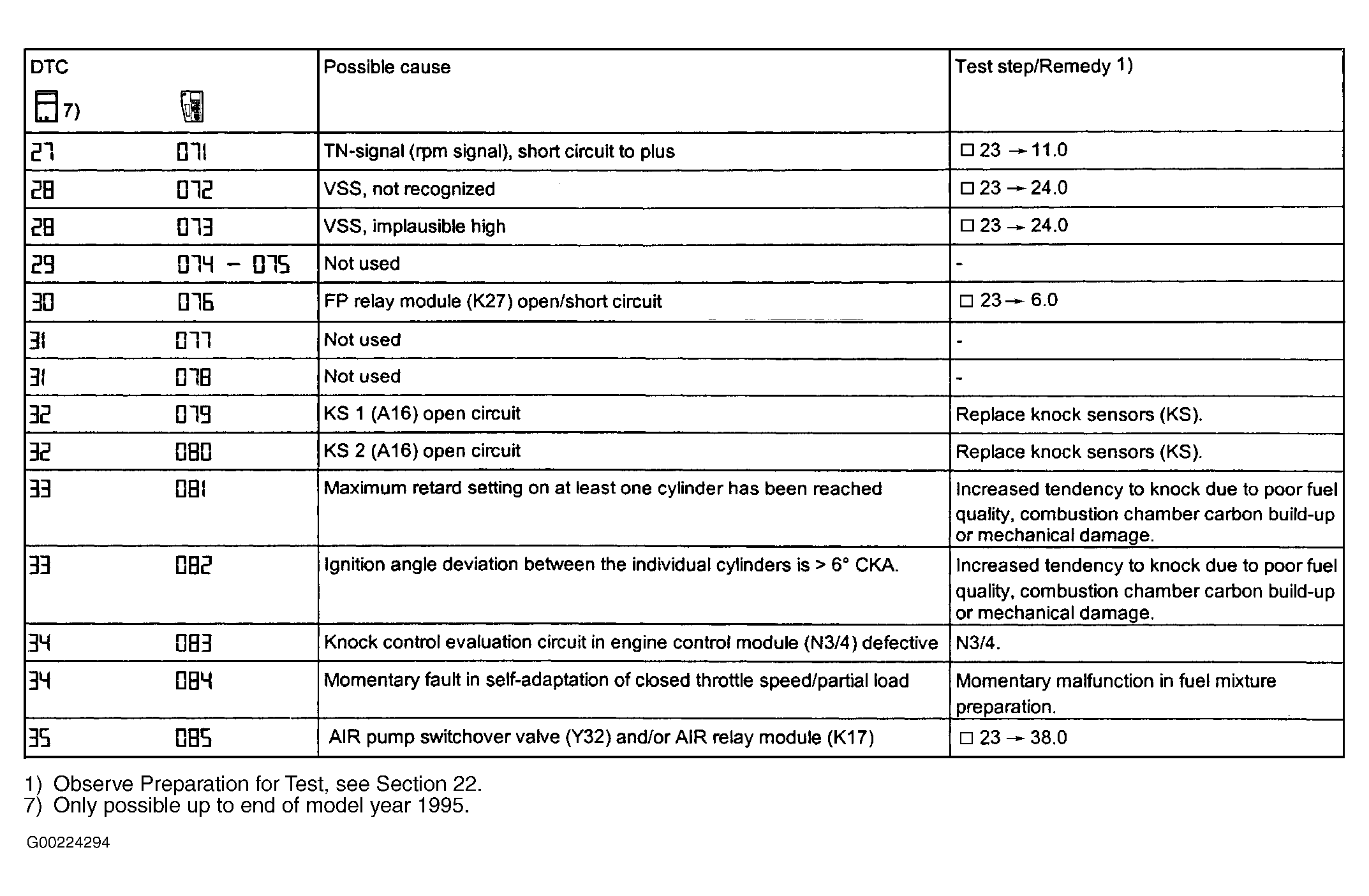

Fig 6: DTC Definitions (Generic OBD 27 cont./MBZ 070 cont.-085)
G00224294Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

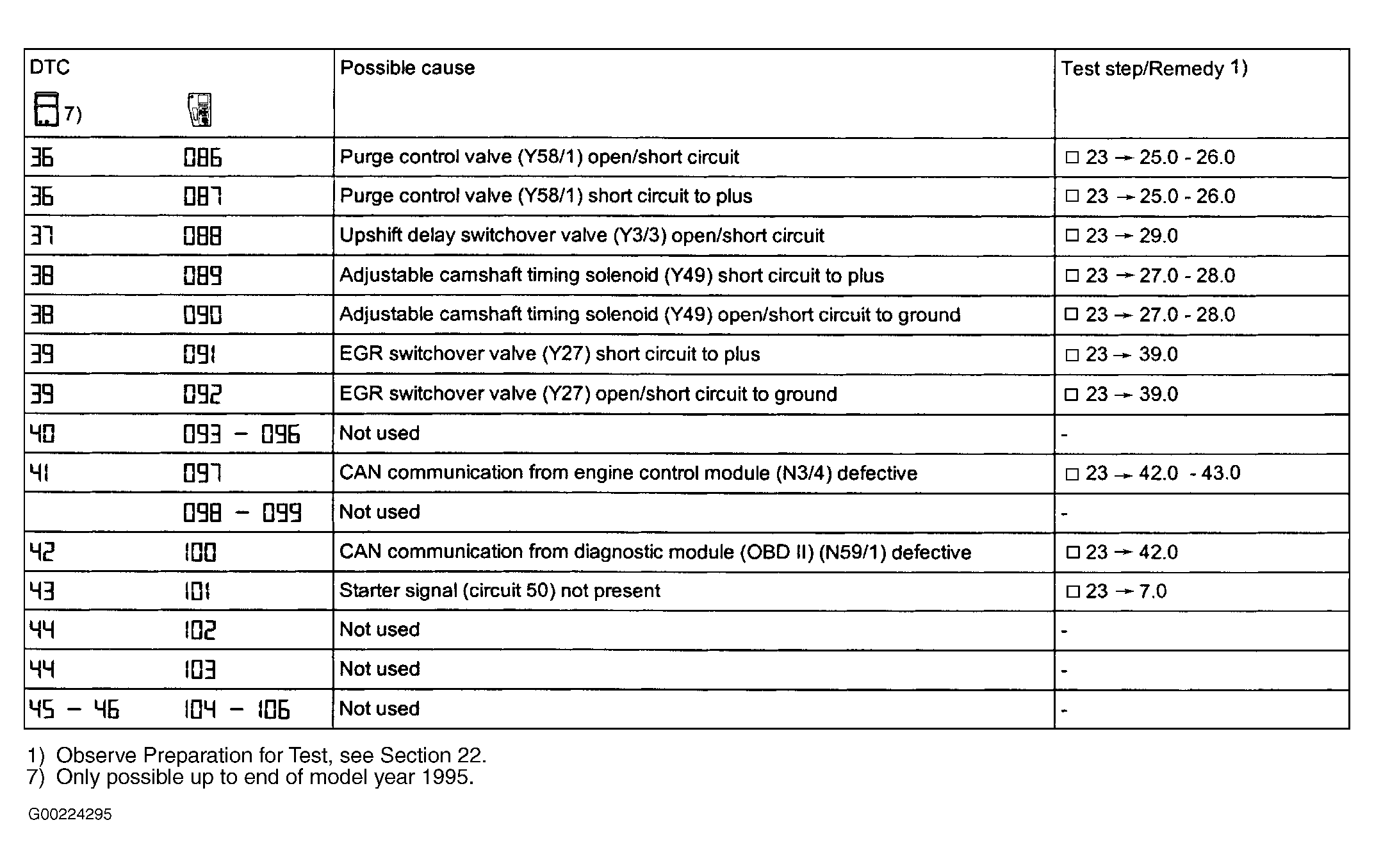

Fig 7: DTC Definitions (Generic OBD 36-46/MBZ 086-106)
G00224295Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

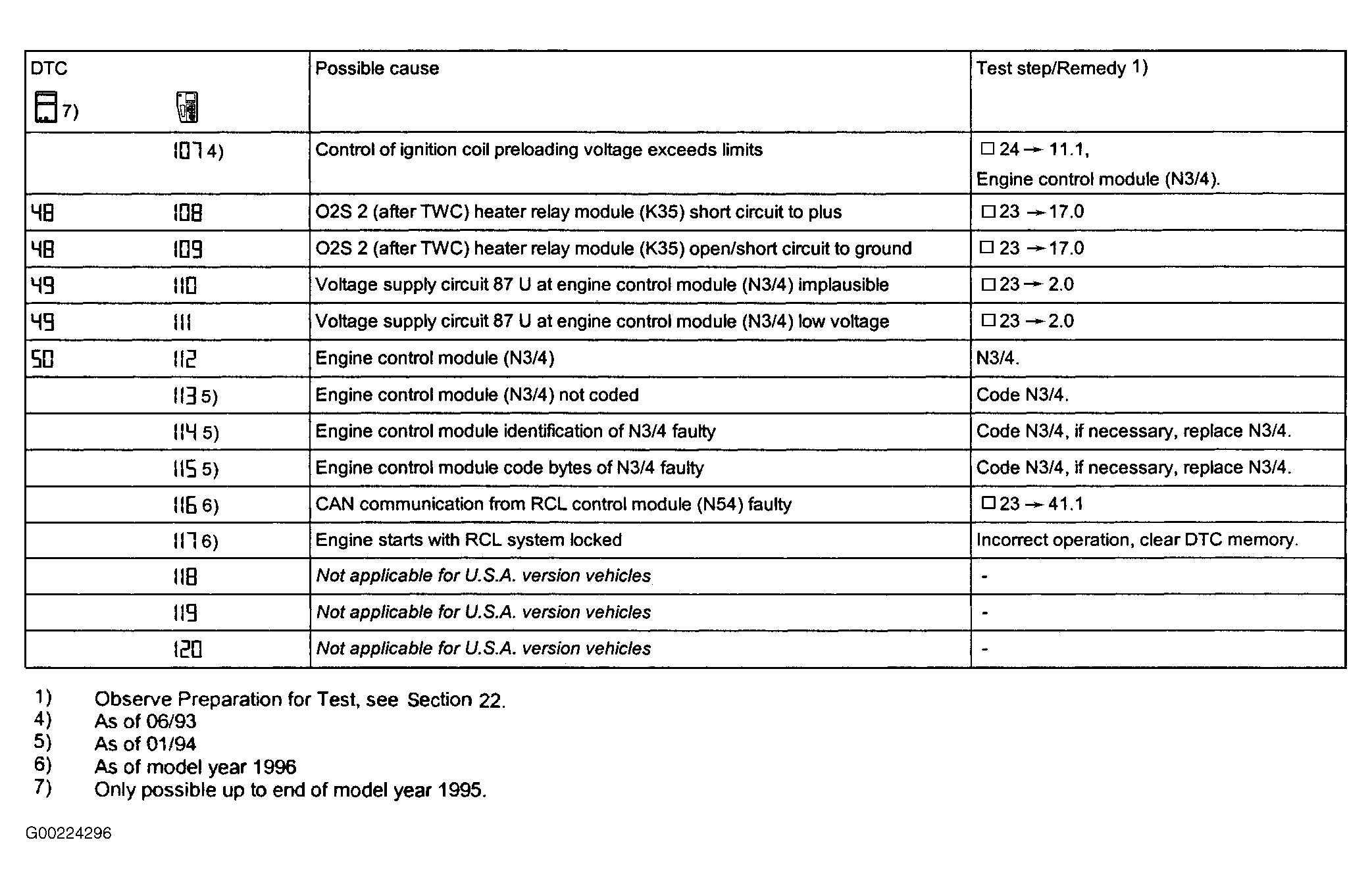

Fig 8: DTC Definitions (Generic OBD 48-50/MBZ 107-120)
G00224296Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

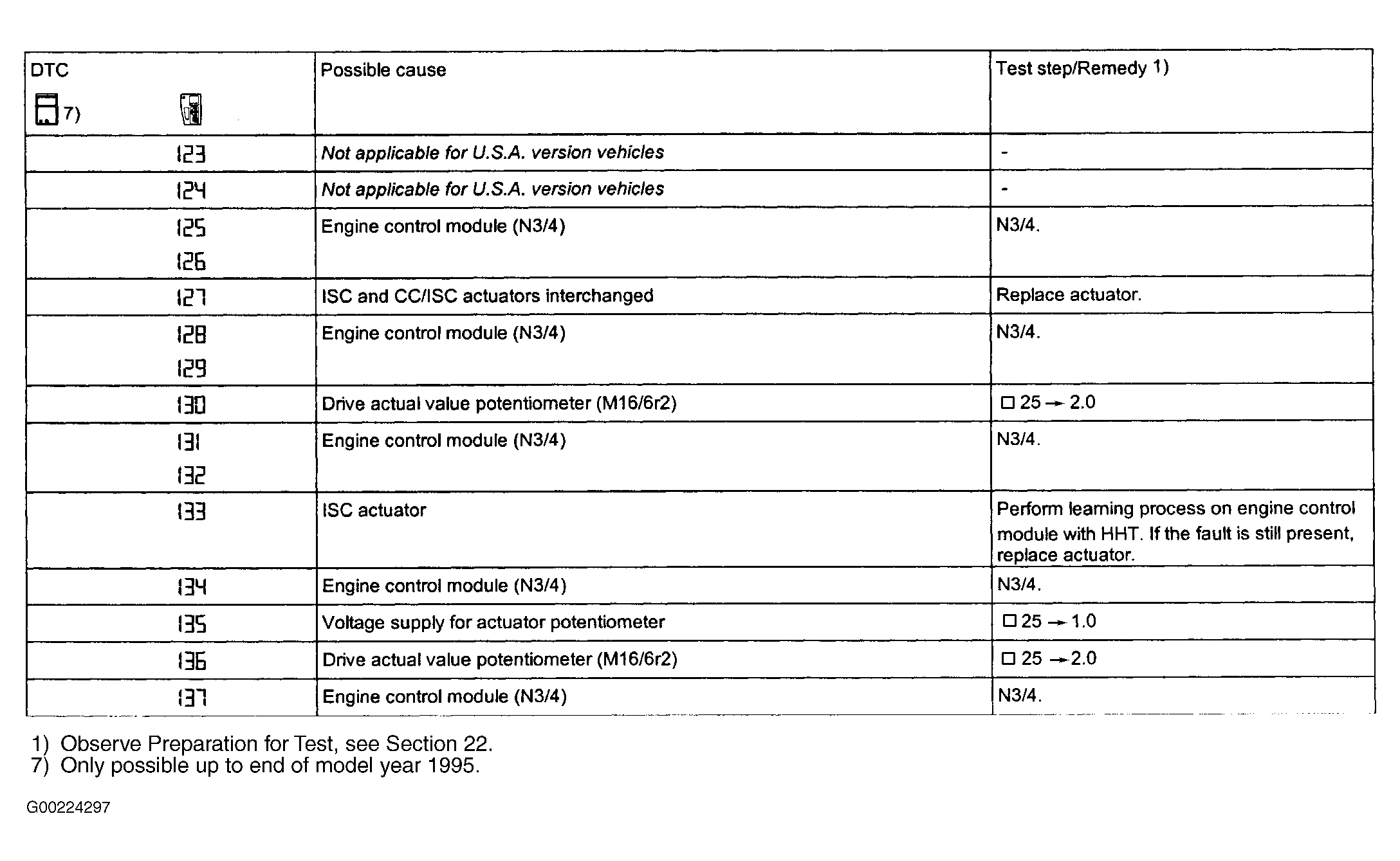

Fig 9: DTC Definitions (Generic OBD xx/MBZ 123-137)
G00224297Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

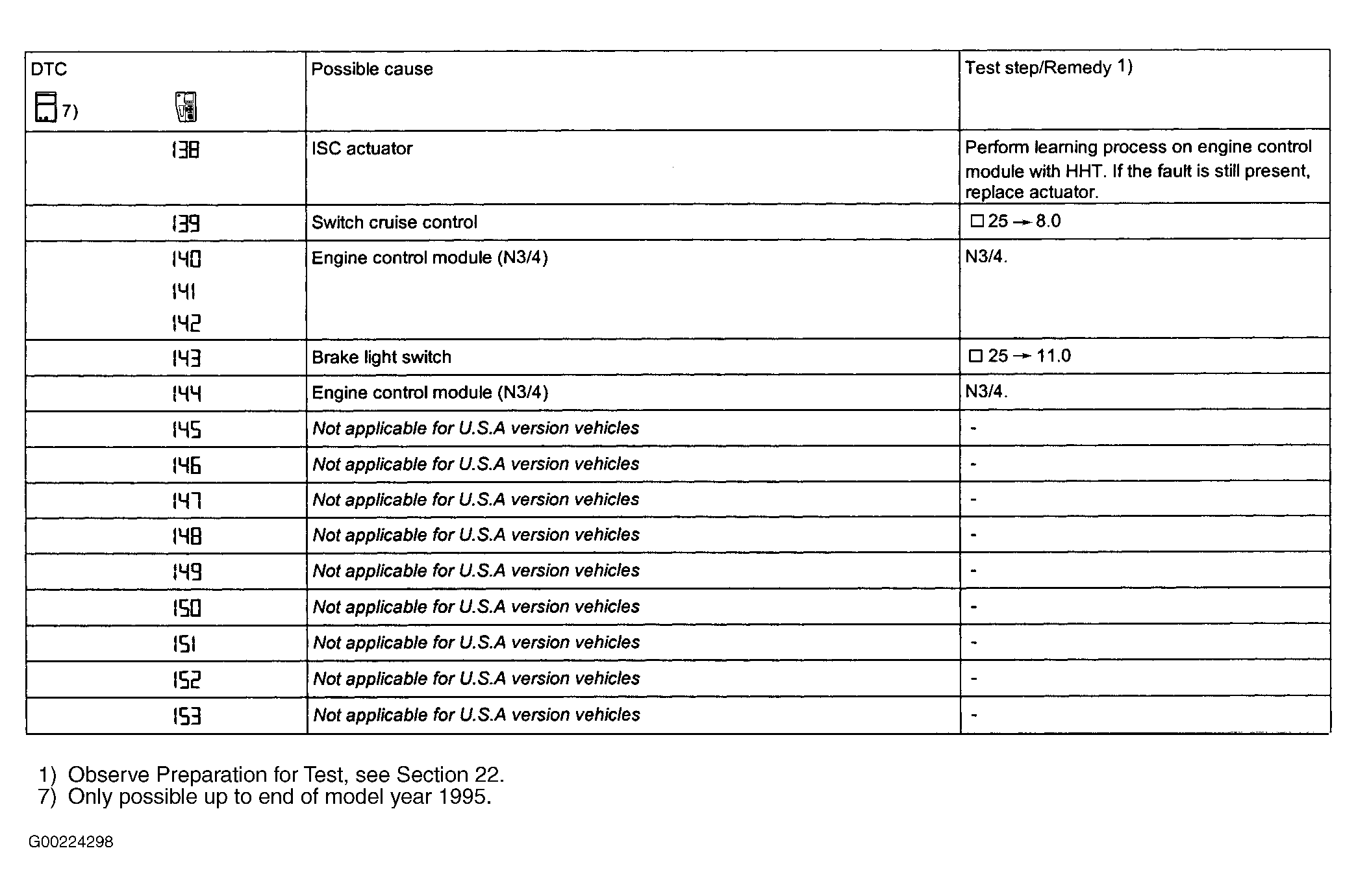

Fig 10: DTC Definitions (Generic OBD xx/MBZ 138-153)
G00224298Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

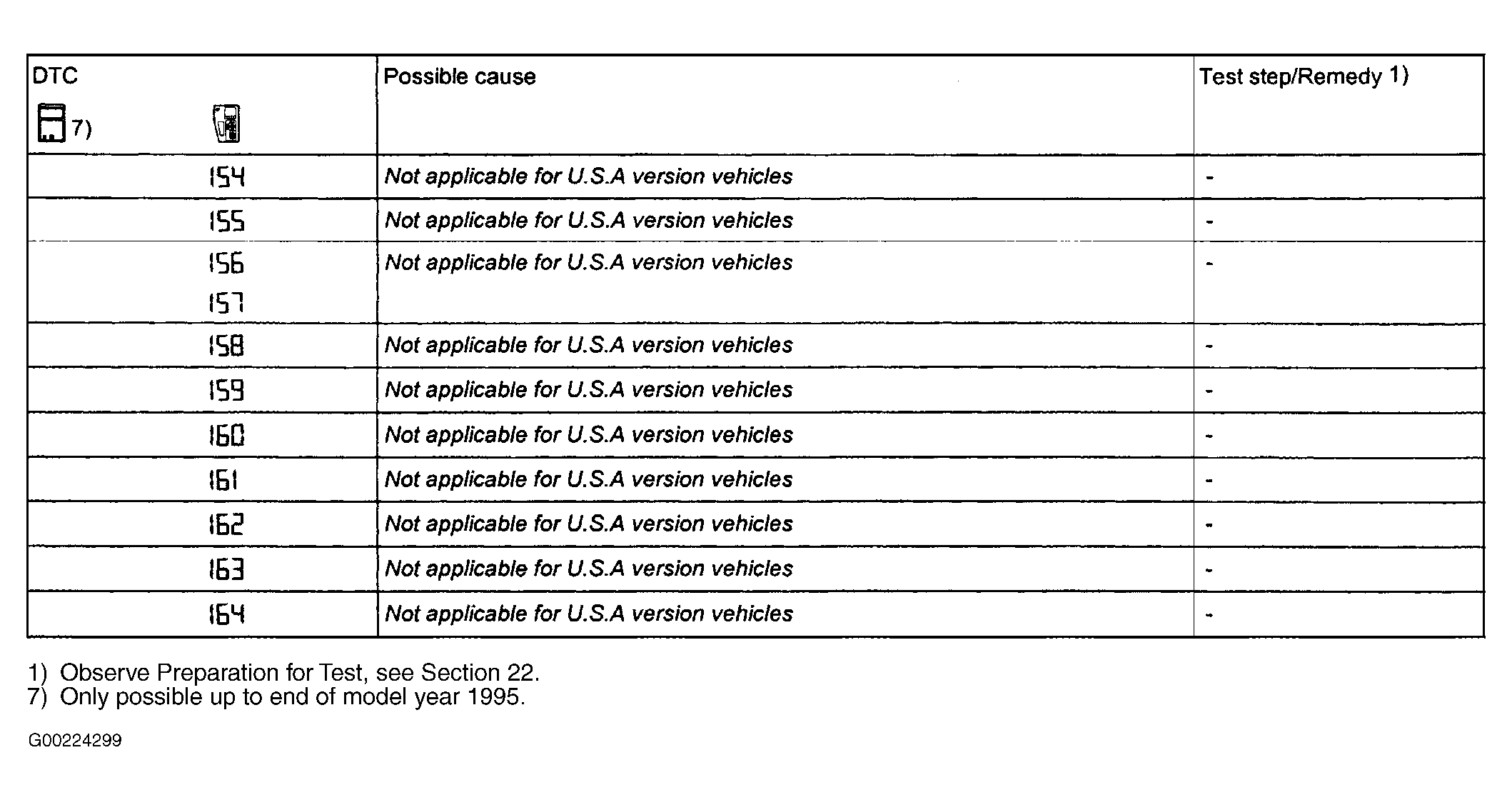

Fig 11: DTC Definitions (Generic OBD xx/MBZ 154-164)
G00224299Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
