DTC Description

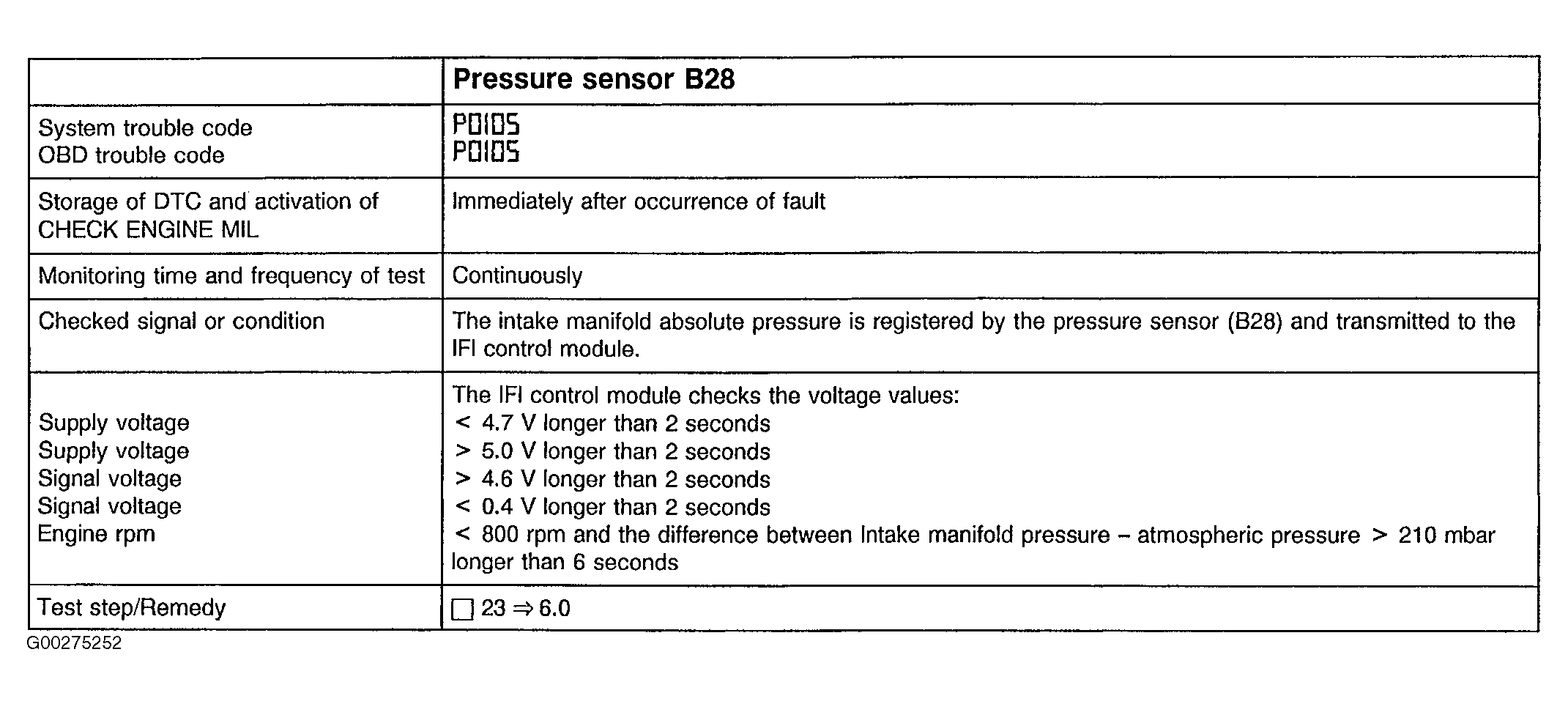

Fig 1: DTC Description For P0105: Pressure Sensor (B28)

G00275252

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

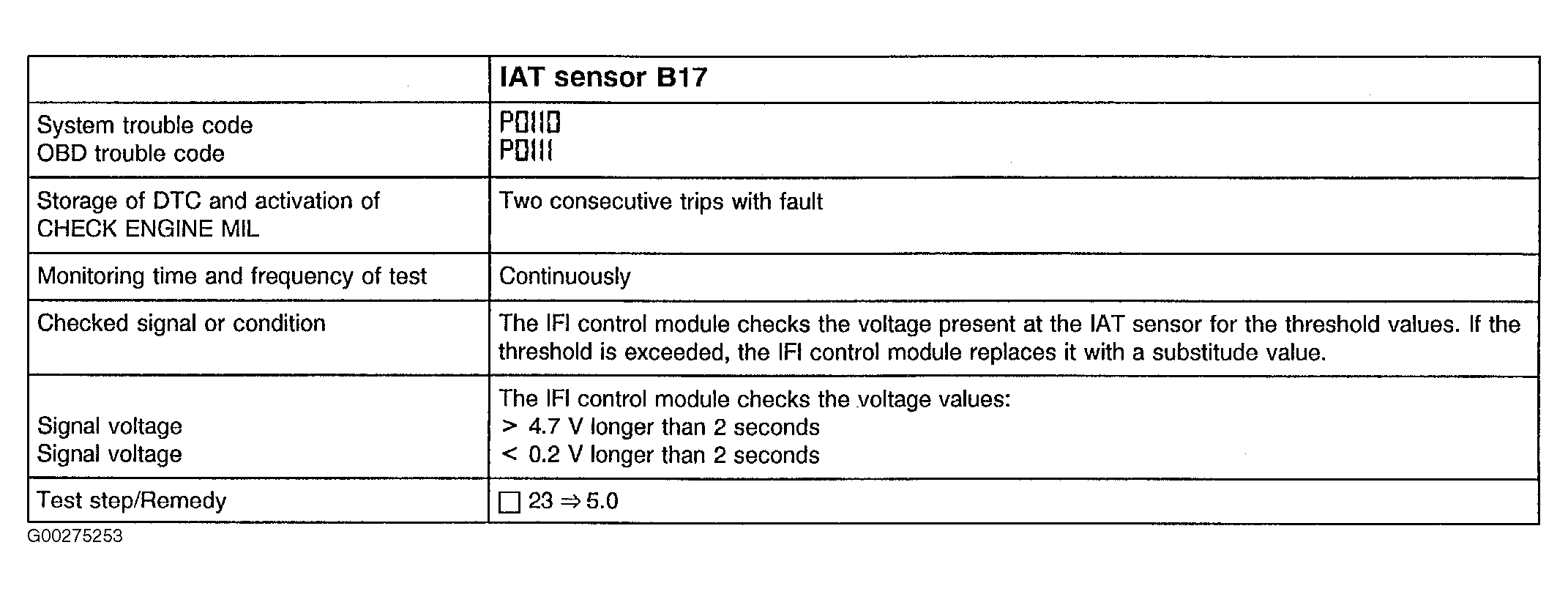

Fig 2: DTC Description For P0110 Or P0111: IAT Sensor (B17)

G00275253

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

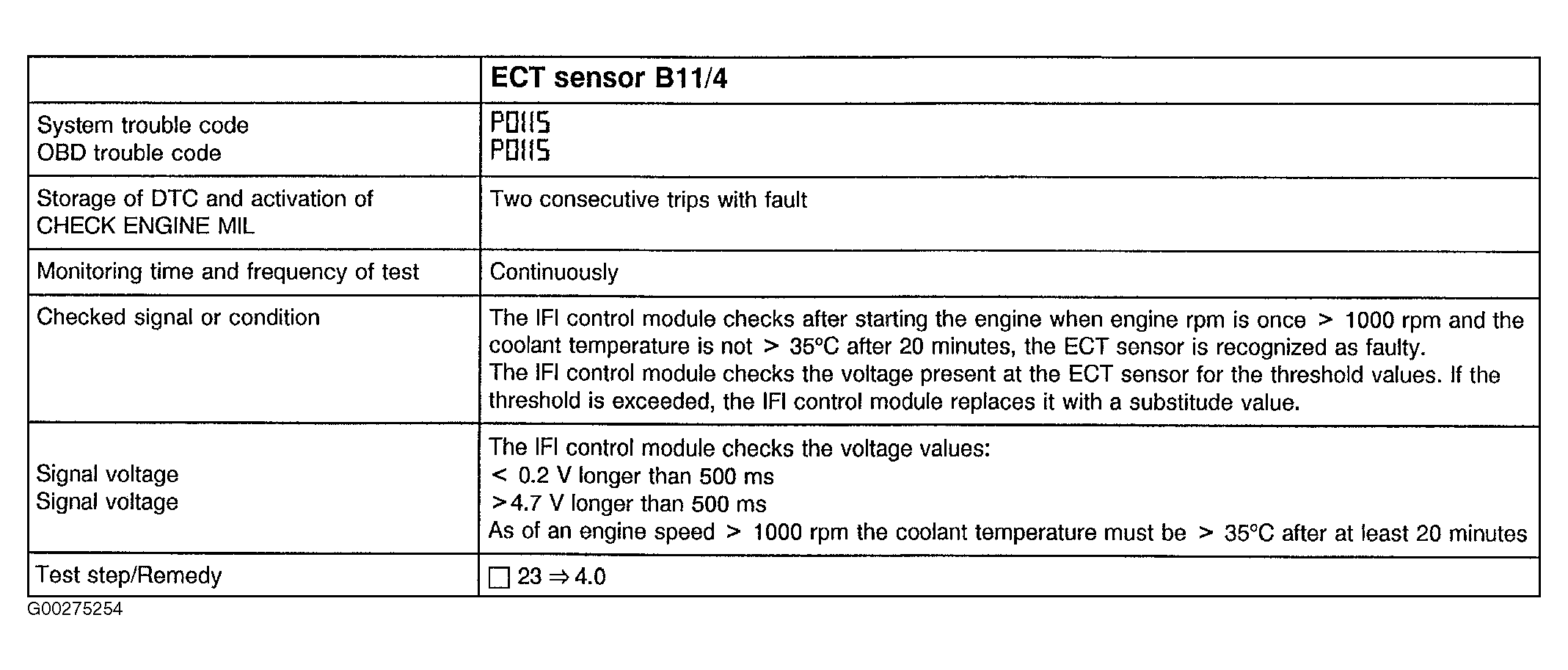

Fig 3: DTC Description For P0115: ECT Sensor (B11/4)

G00275254

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

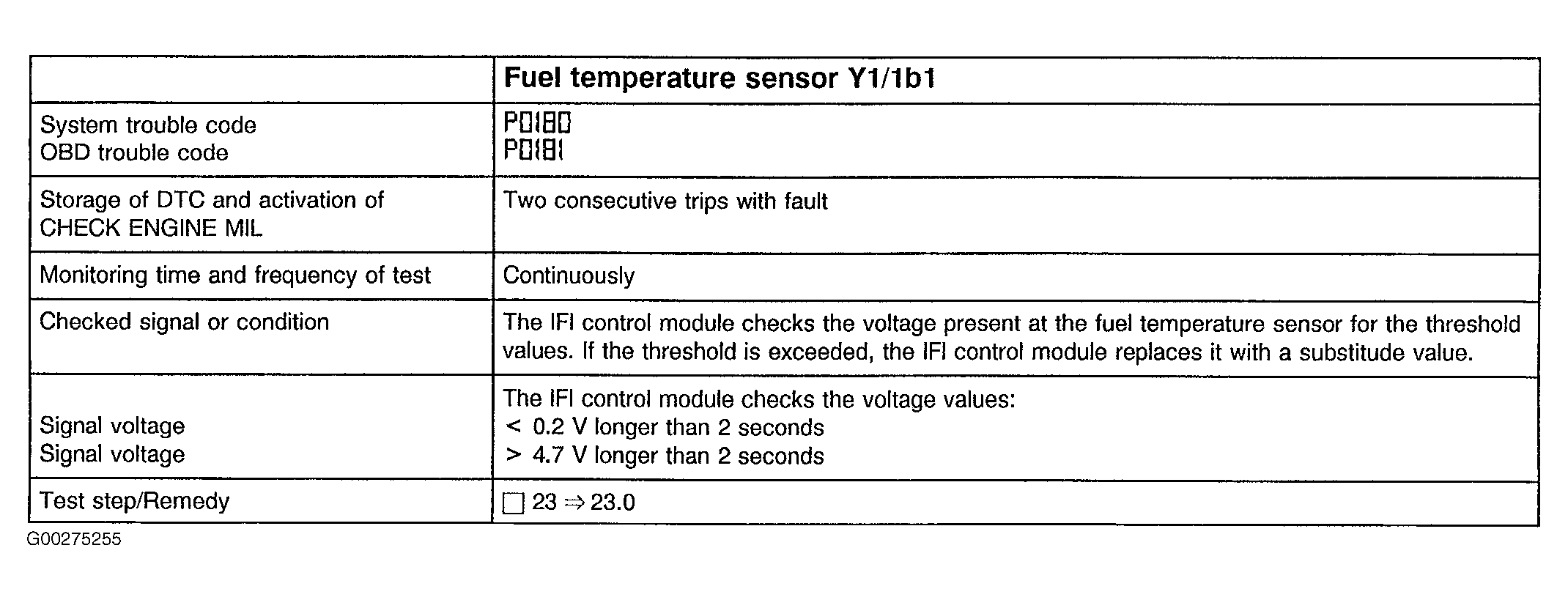

Fig 4: DTC Description For P0180 Or P0181: Fuel Temperature Sensor (Y1/1b1)

G00275255

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

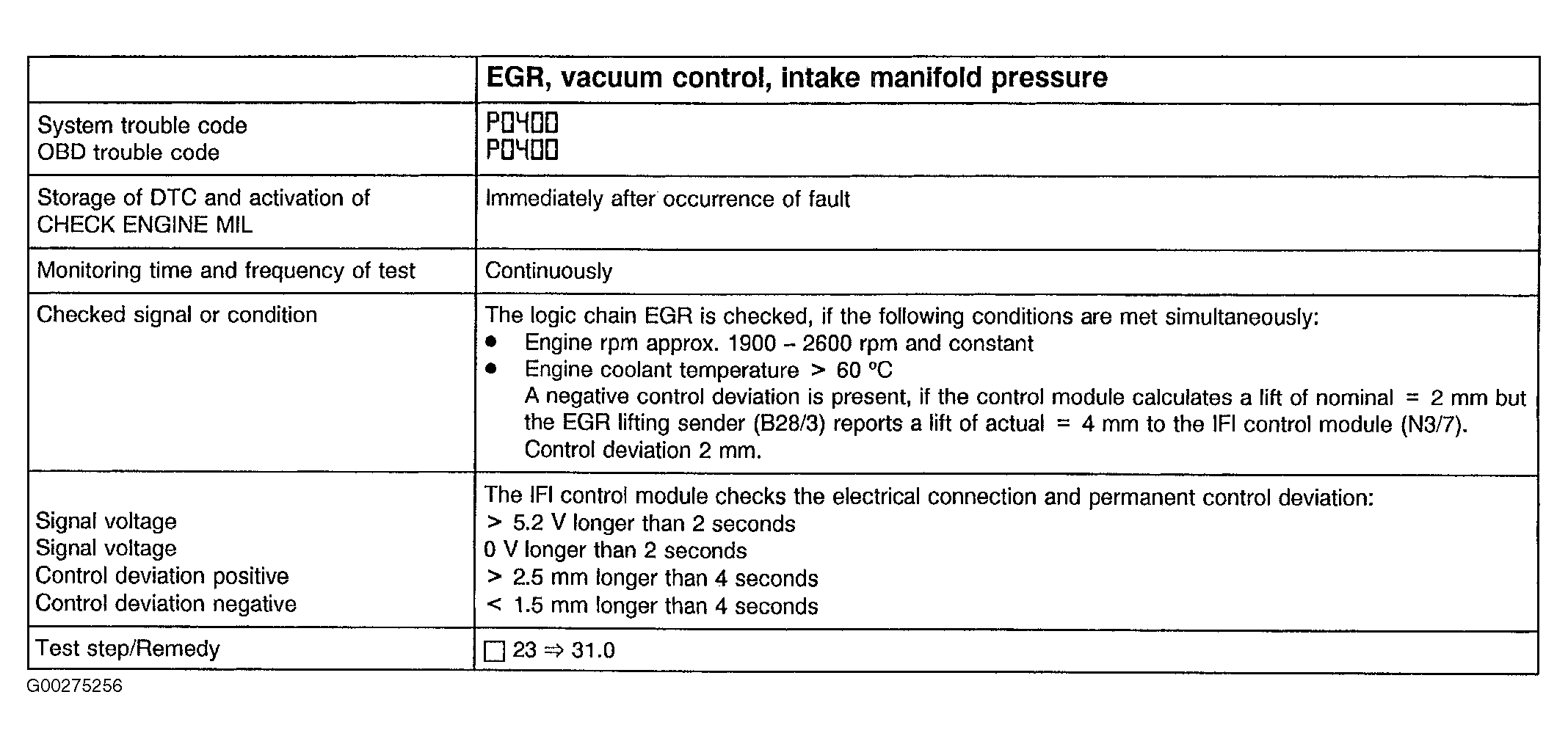

Fig 5: DTC Description For P0400: EGR, Vacuum Control, Intake Manifold Pressure

G00275256

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

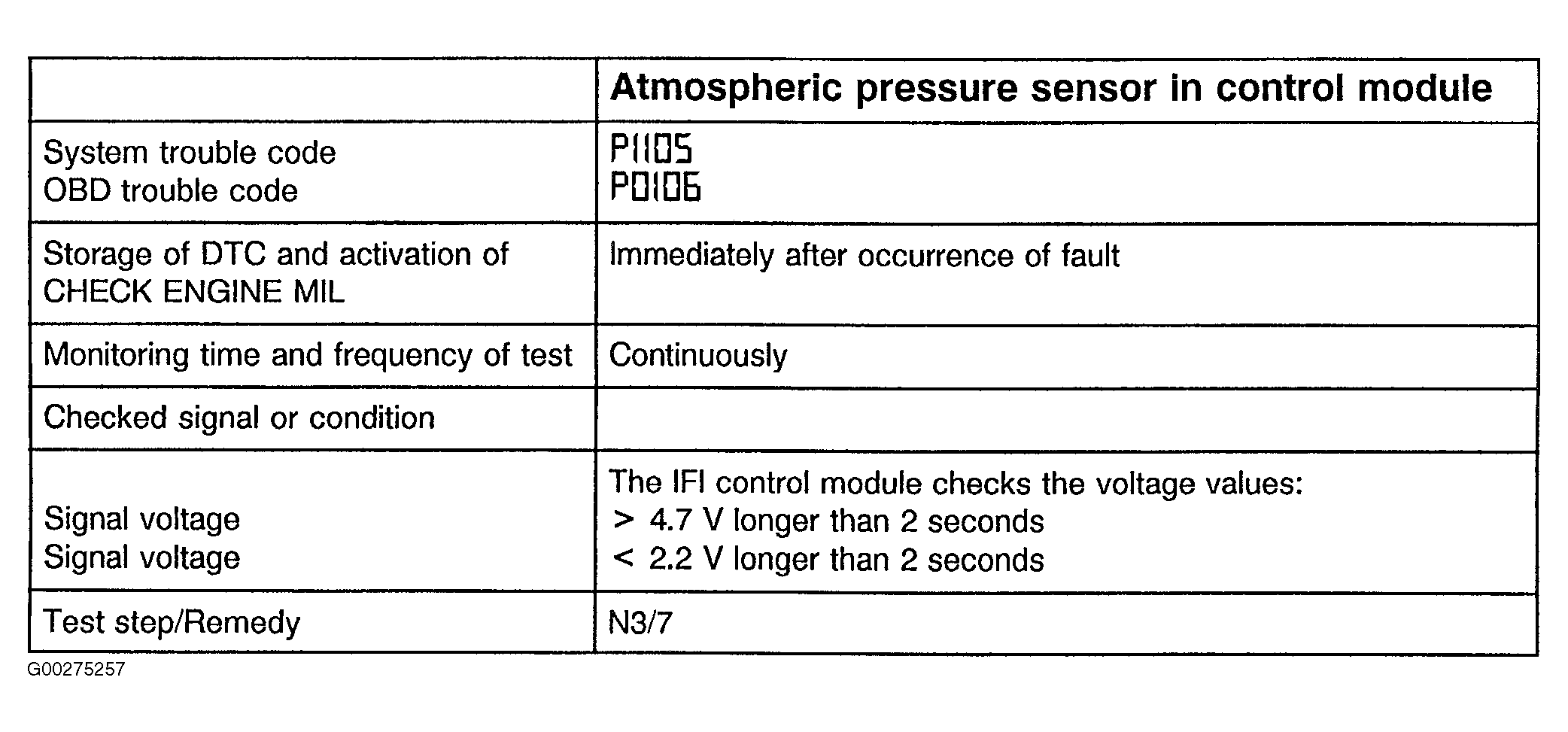

Fig 6: DTC Description For P1105 Or P0106: Atmospheric Pressure Sensor In Control Module

G00275257

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

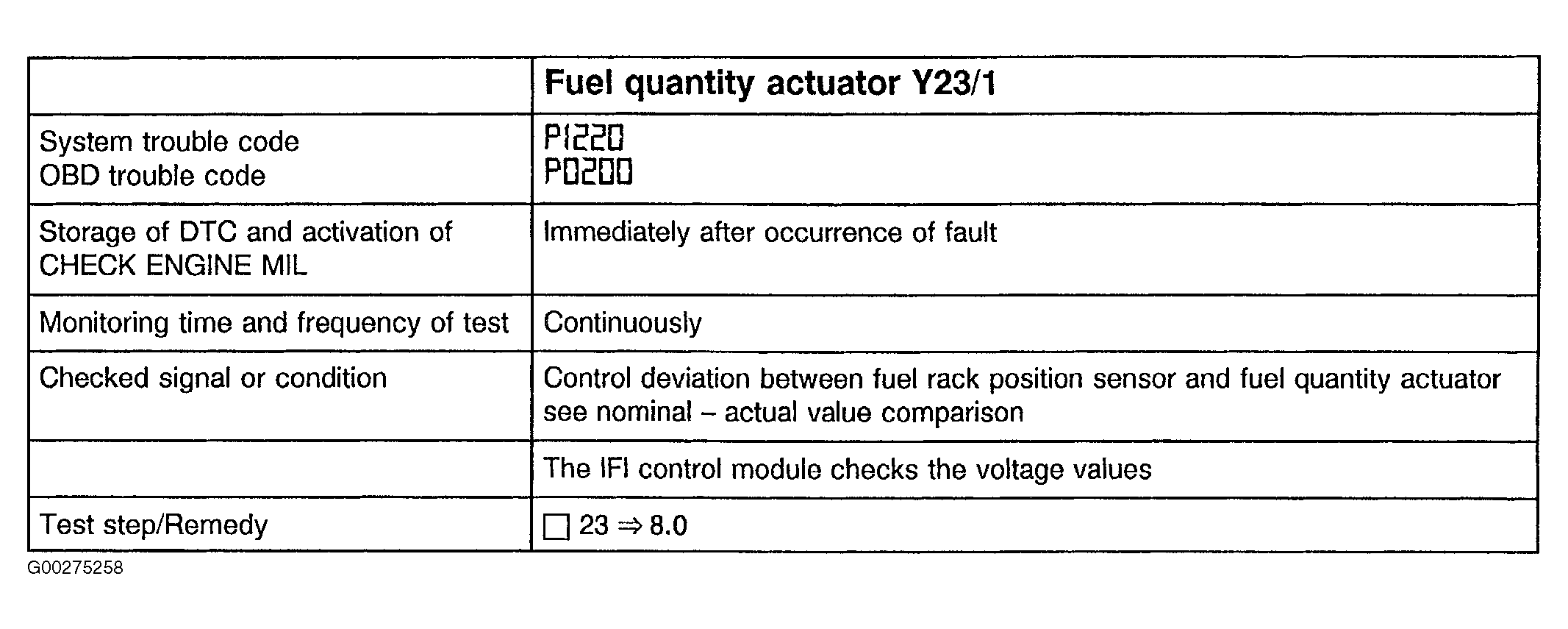

Fig 7: DTC Description For P1220 Or P0200: Fuel Quantity Actuator (Y23/1)

G00275258

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

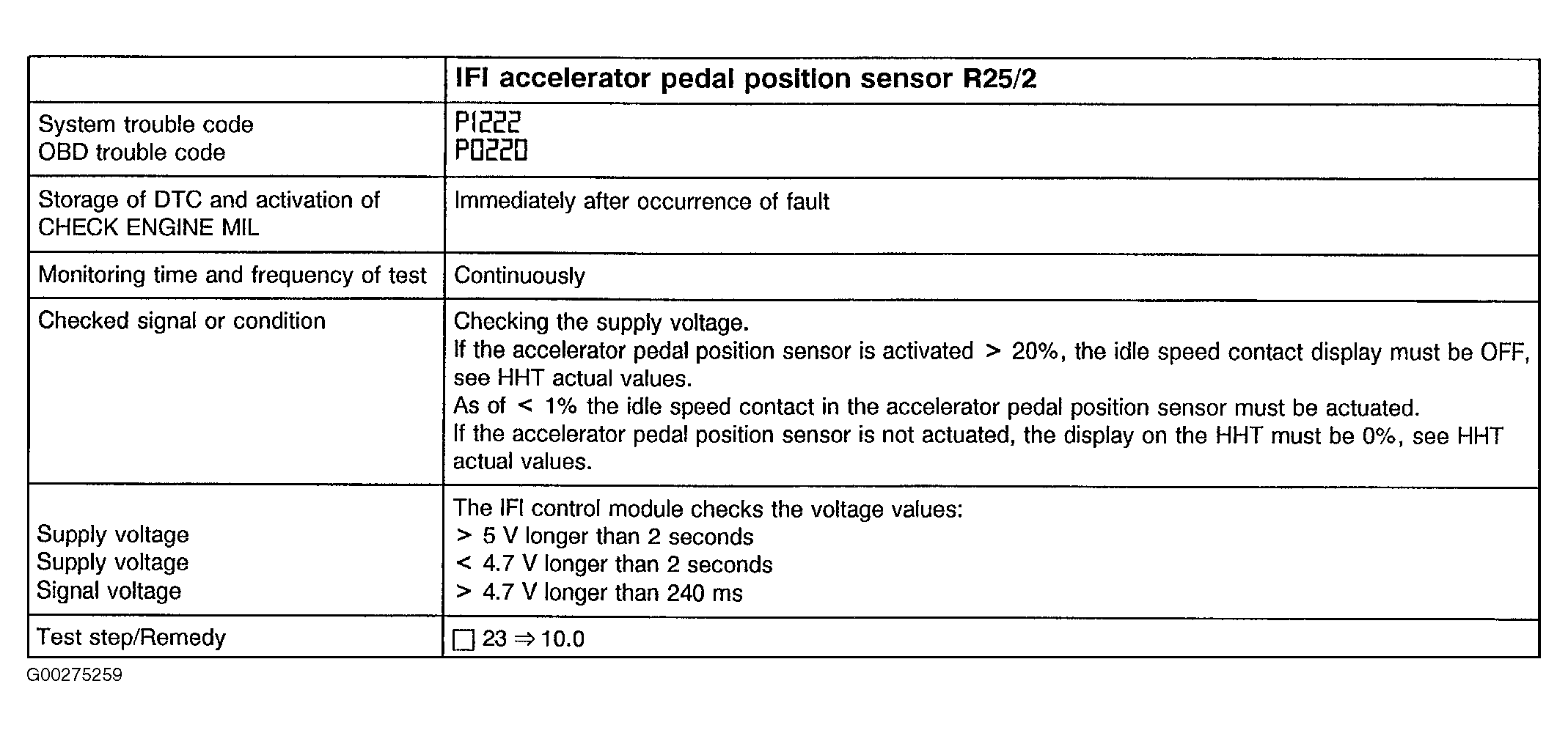

Fig 8: DTC Description For P1222 Or P0220: IFI Accelerator Pedal Position Sensor (R25/2)

G00275259

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

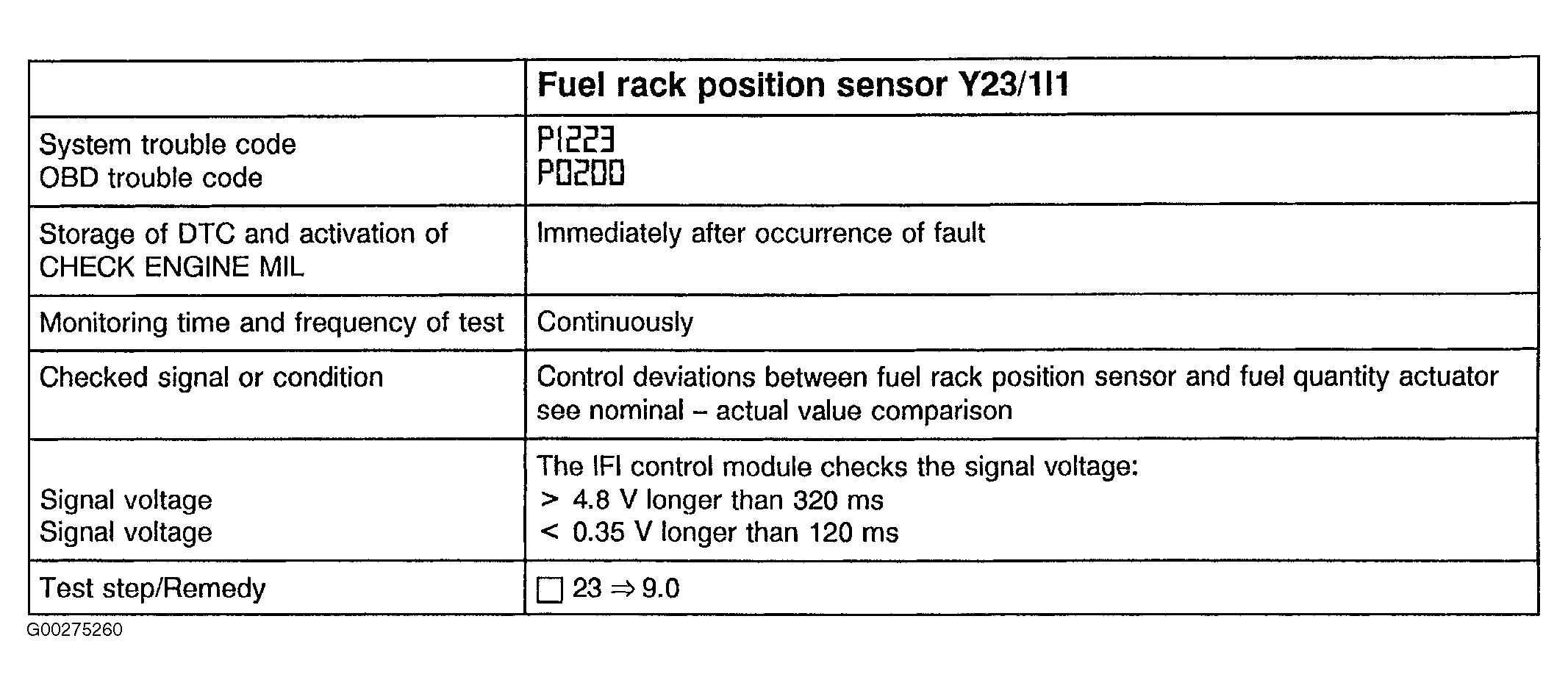

Fig 9: DTC Description For P1223 Or P0200: Fuel Rack Position Sensor (Y23/1l1)

G00275260

Courtesy of MERCEDES-BENZ OF NORTH AMERICA..

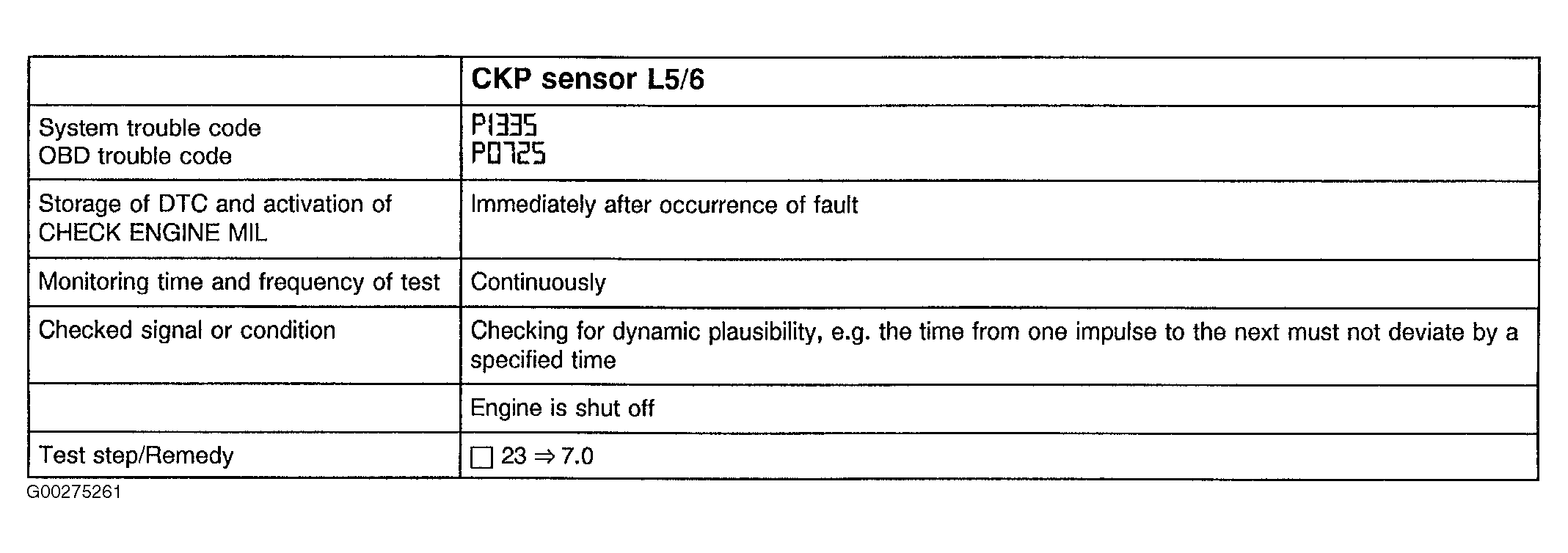

Fig 10: DTC Description For P1335 Or P0725: CKP Sensor (L5/6)

G00275261

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

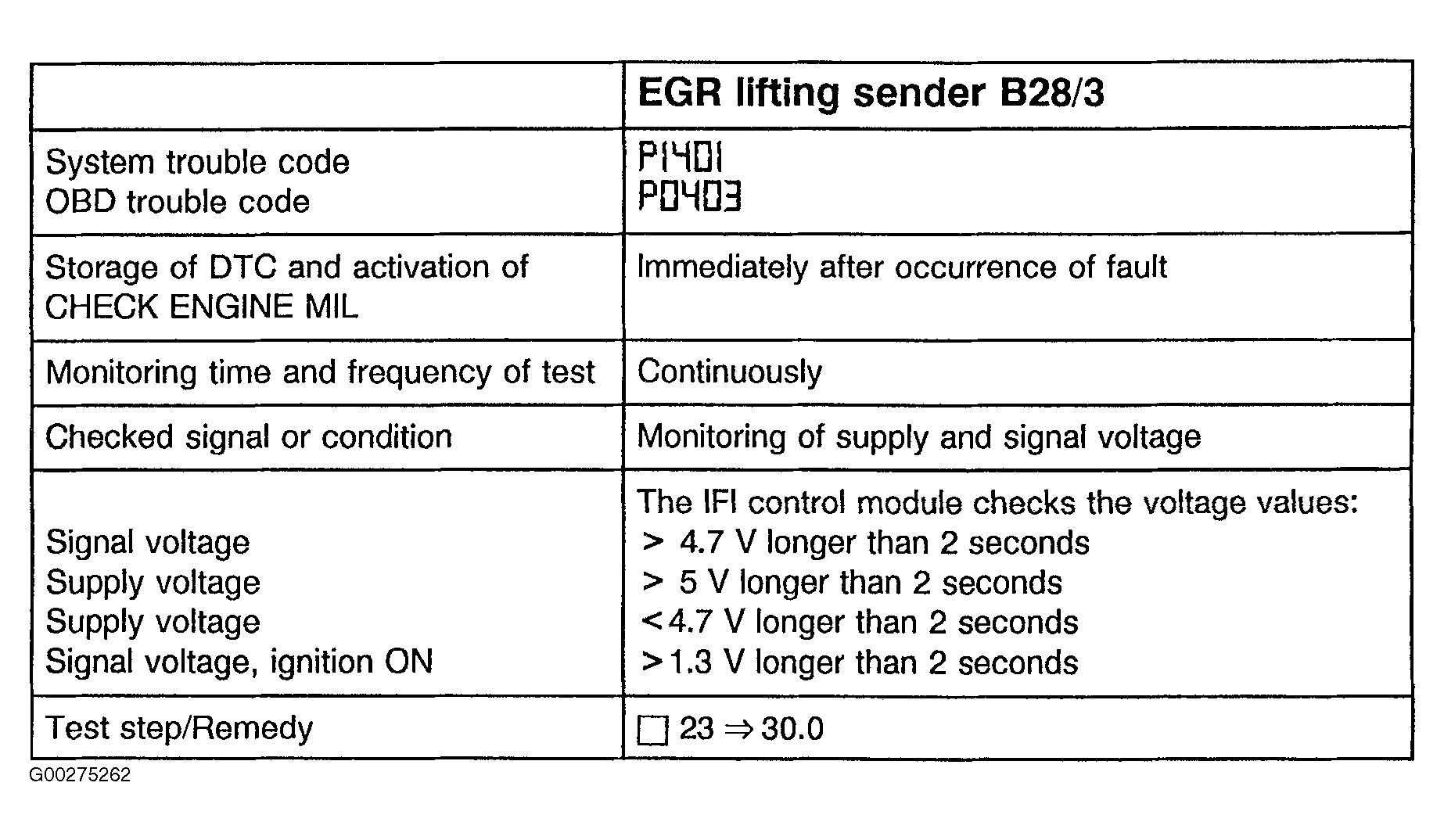

Fig 11: DTC Description For P1401 Or P0403: EGR Lifting Sender (B28/3)

G00275262

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

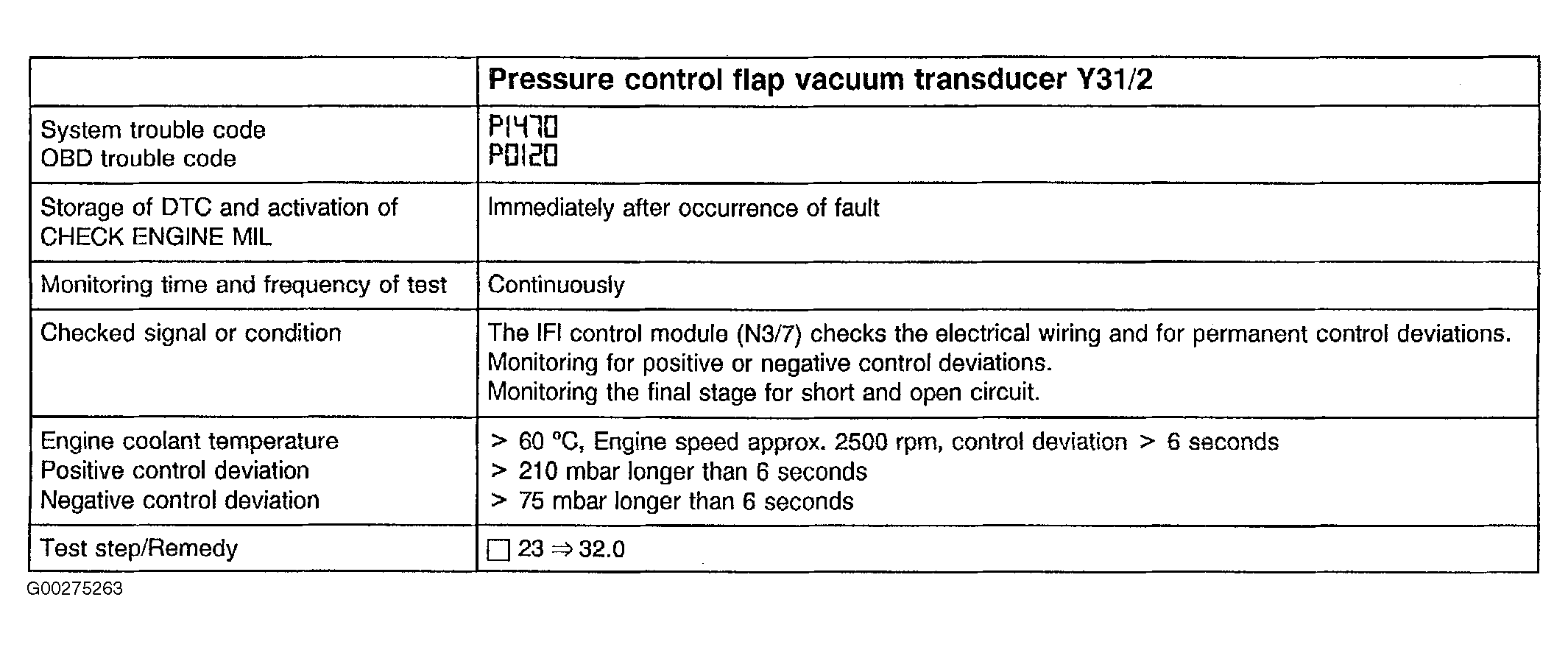

Fig 12: DTC Description For P1470 Or P0120: Pressure Control Flap Vacuum Transducer (Y31/2)

G00275263

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

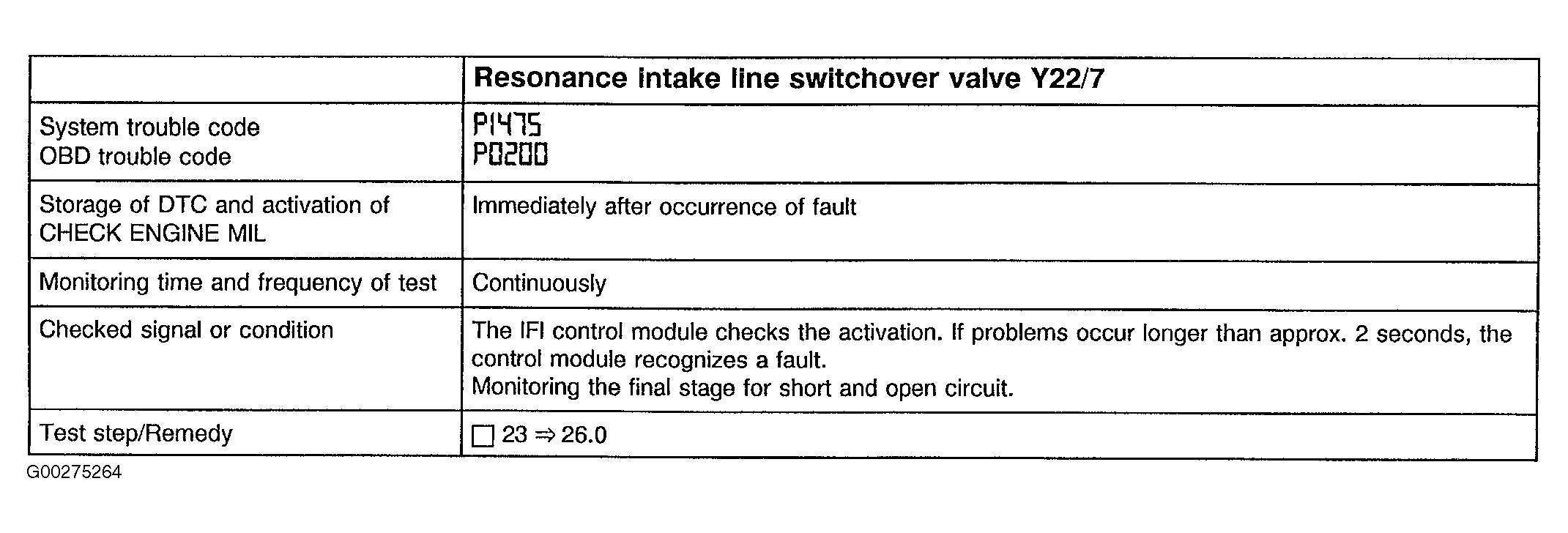

Fig 13: DTC Description For P1475 Or P0200: Resonance Intake Line Switchover Valve (Y22/7)

G00275264

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

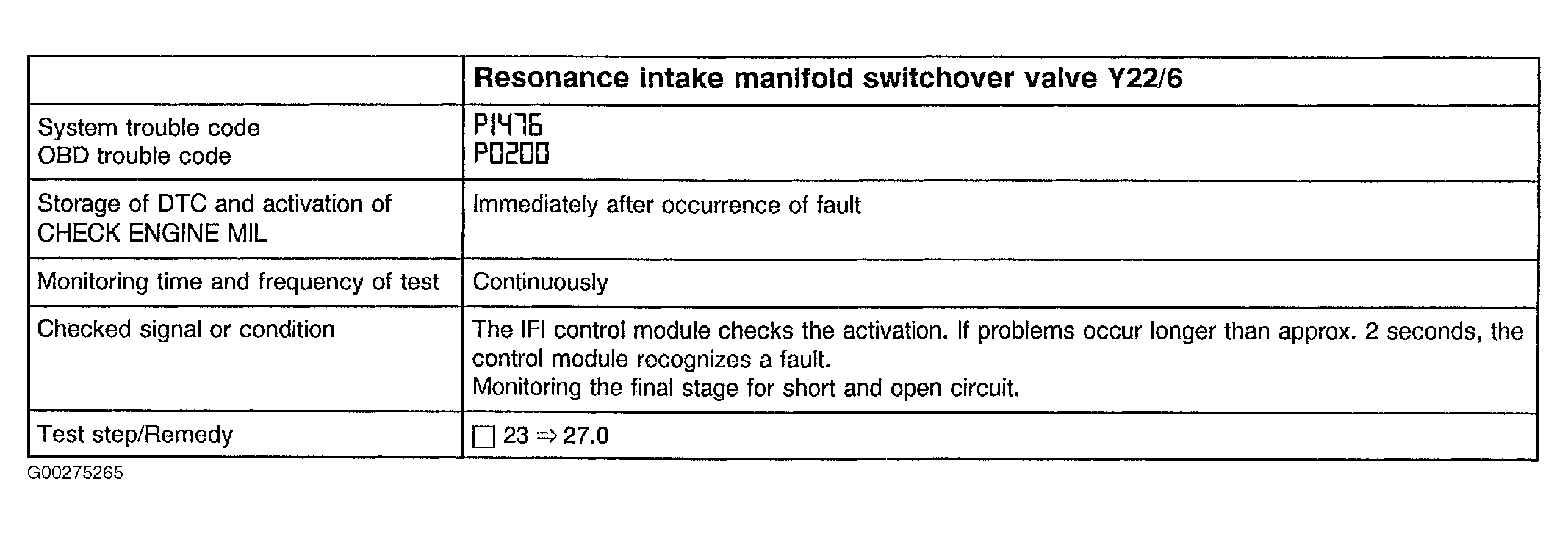

Fig 14: DTC Description For P1476 Or P0200: Resonance Intake Manifold Switchover Valve (Y22/6)

G00275265

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

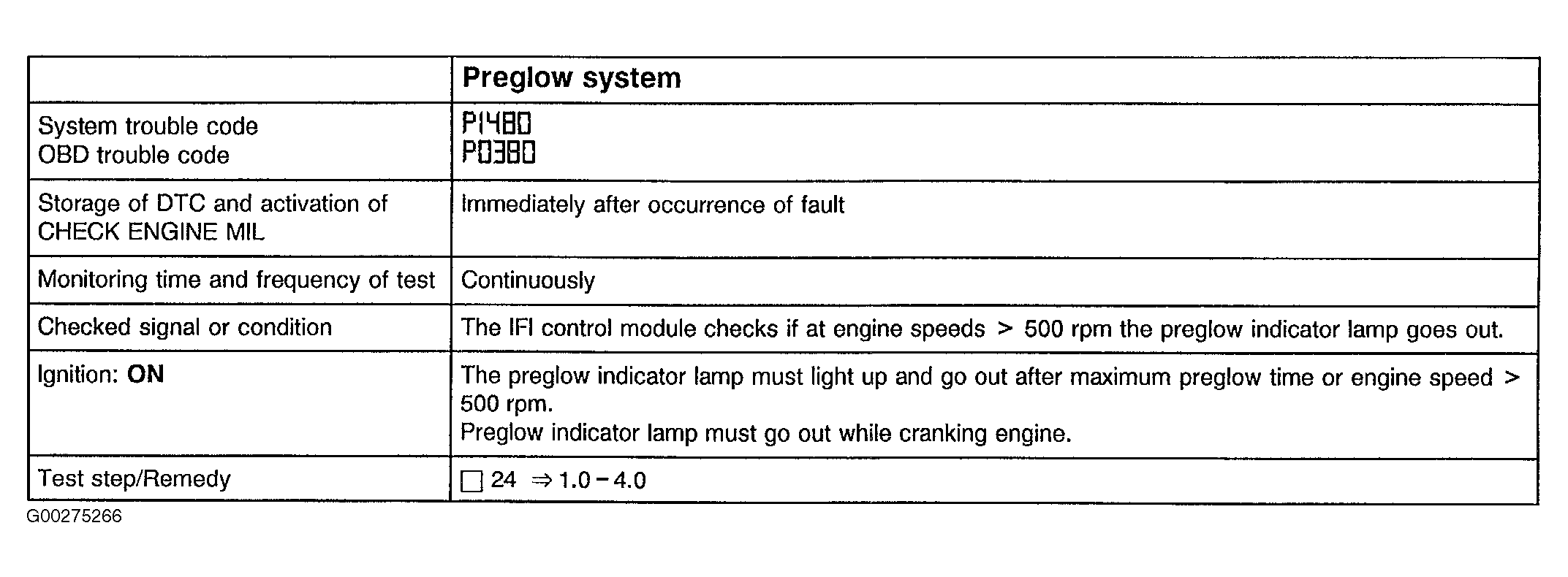

Fig 15: DTC Description For P1480 Or P0380: Preglow System

G00275266

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

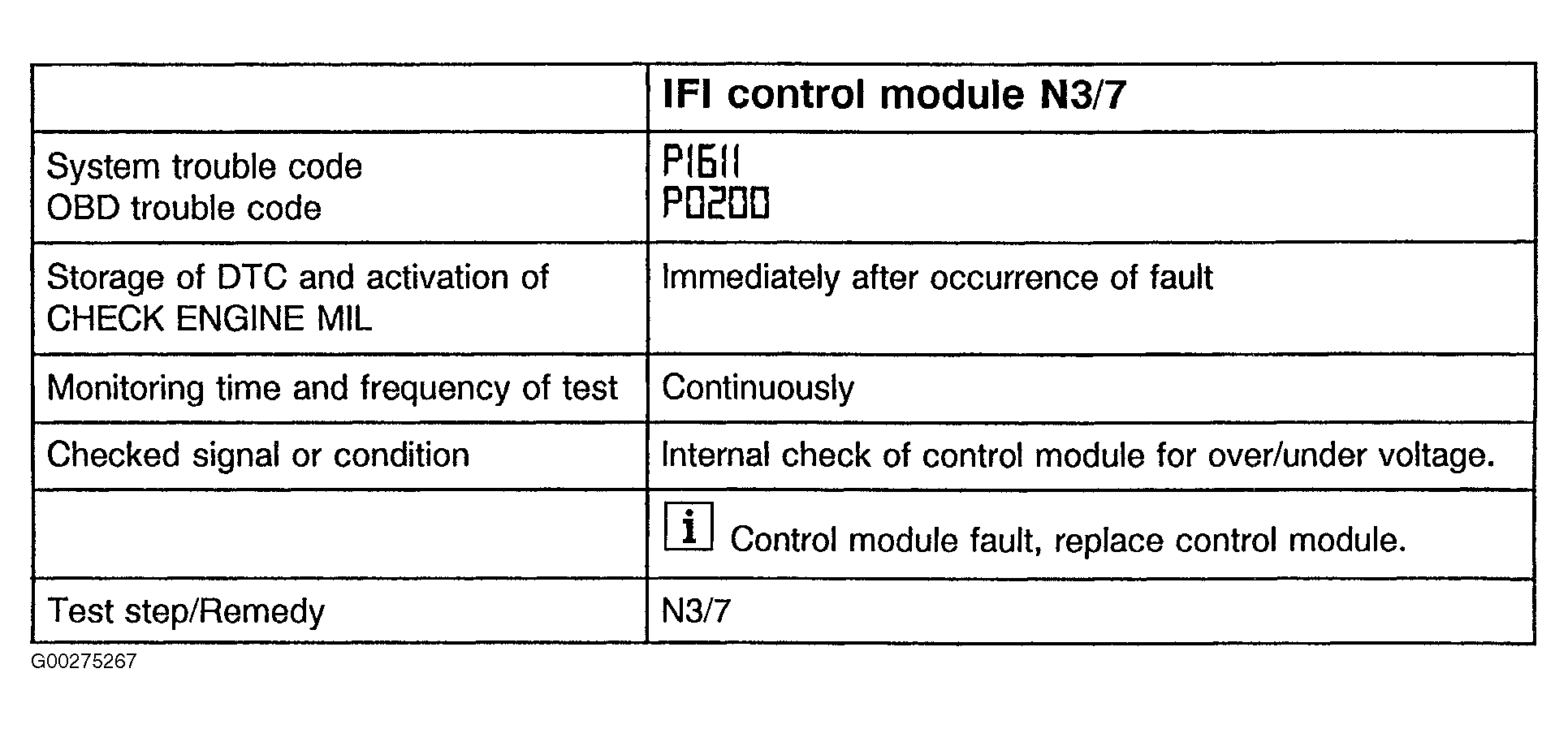

Fig 16: DTC Description For P1611 Or P0200: IFI Control Module (N3/7)

G00275267

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

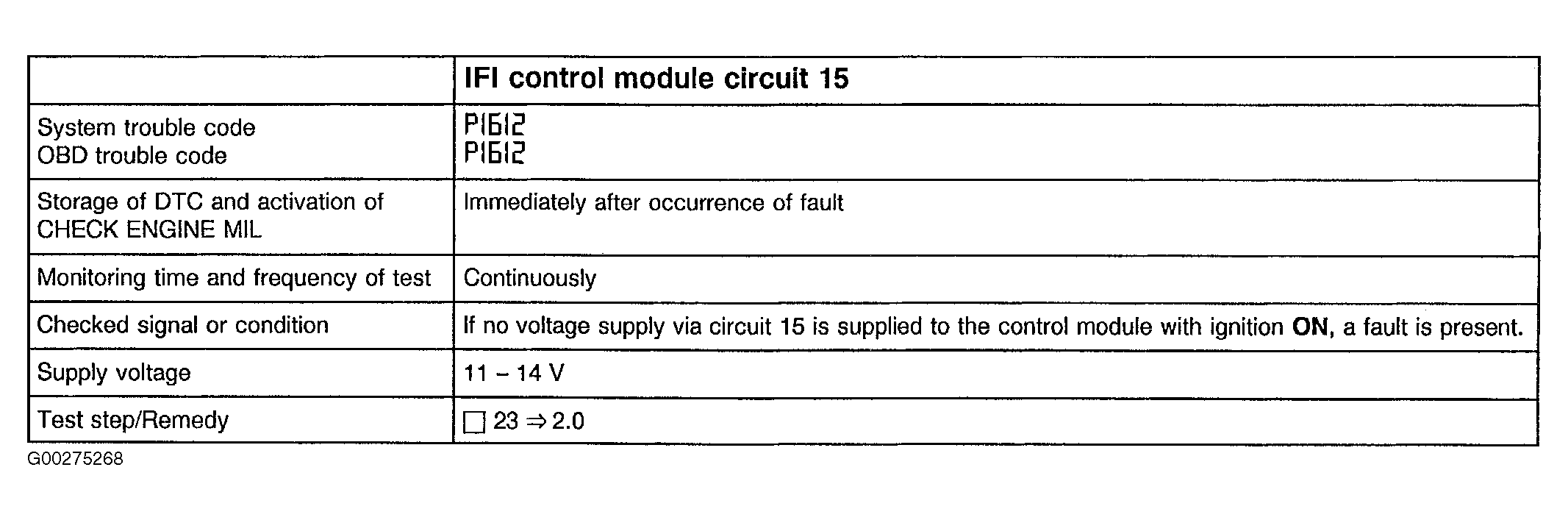

Fig 17: DTC Description For P1612: IFI Control Module Circuit 15

G00275268

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

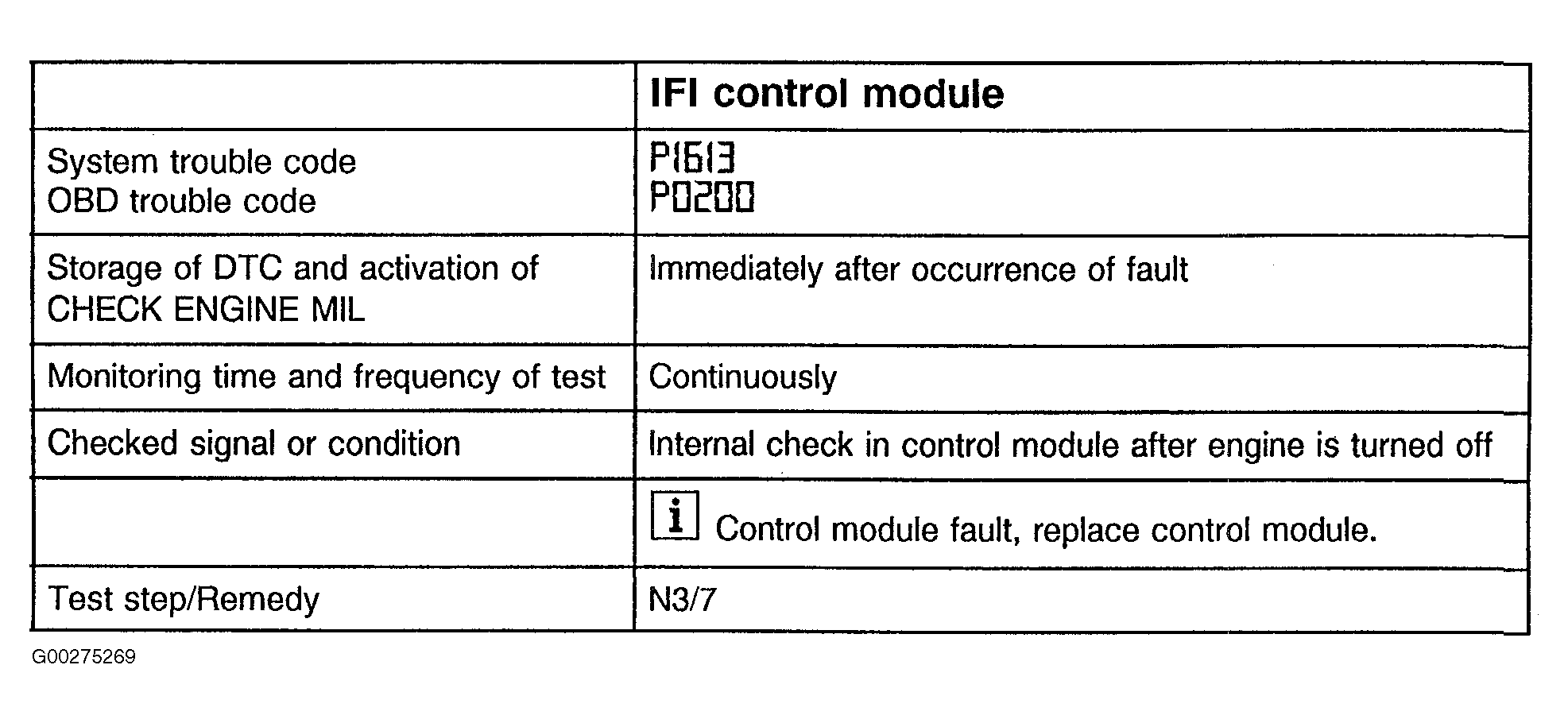

Fig 18: DTC Description For P1613 Or P0200: IFI Control Module

G00275269

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

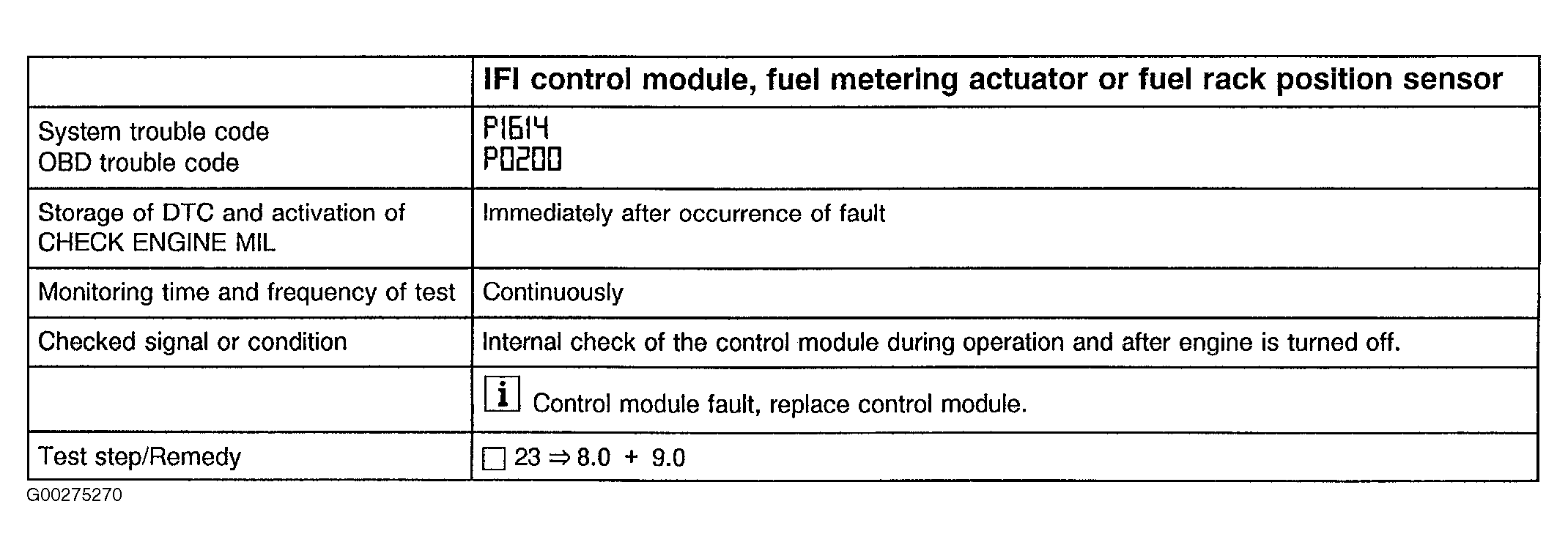

Fig 19: DTC Description For P1614 Or P0200: IFI Control Module, Fuel Metering Actuator Or Fuel Rack Position Sensor

G00275270

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

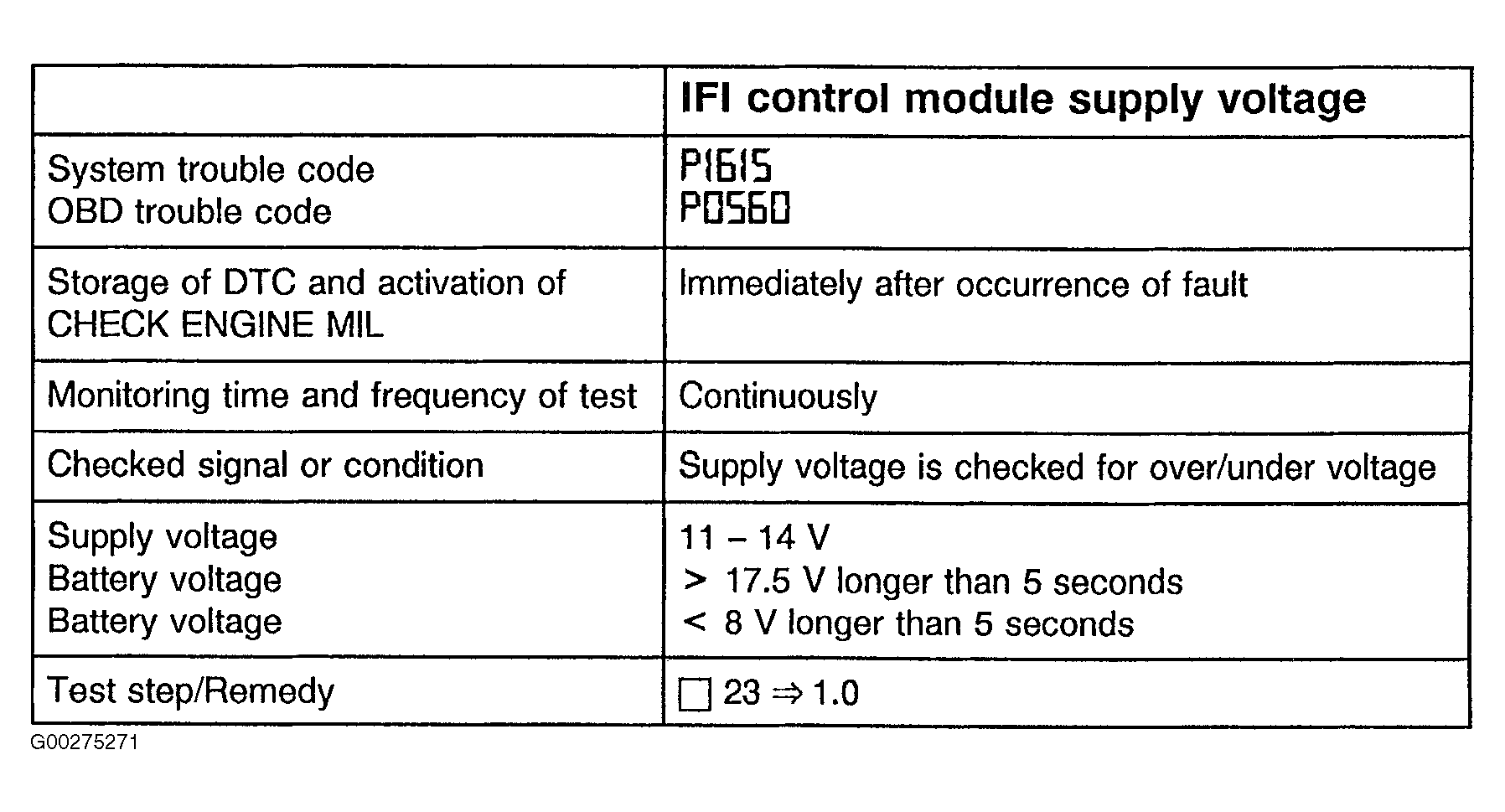

Fig 20: DTC Description For P1615 Or P0560: IFI Control Module Supply Voltage

G00275271

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

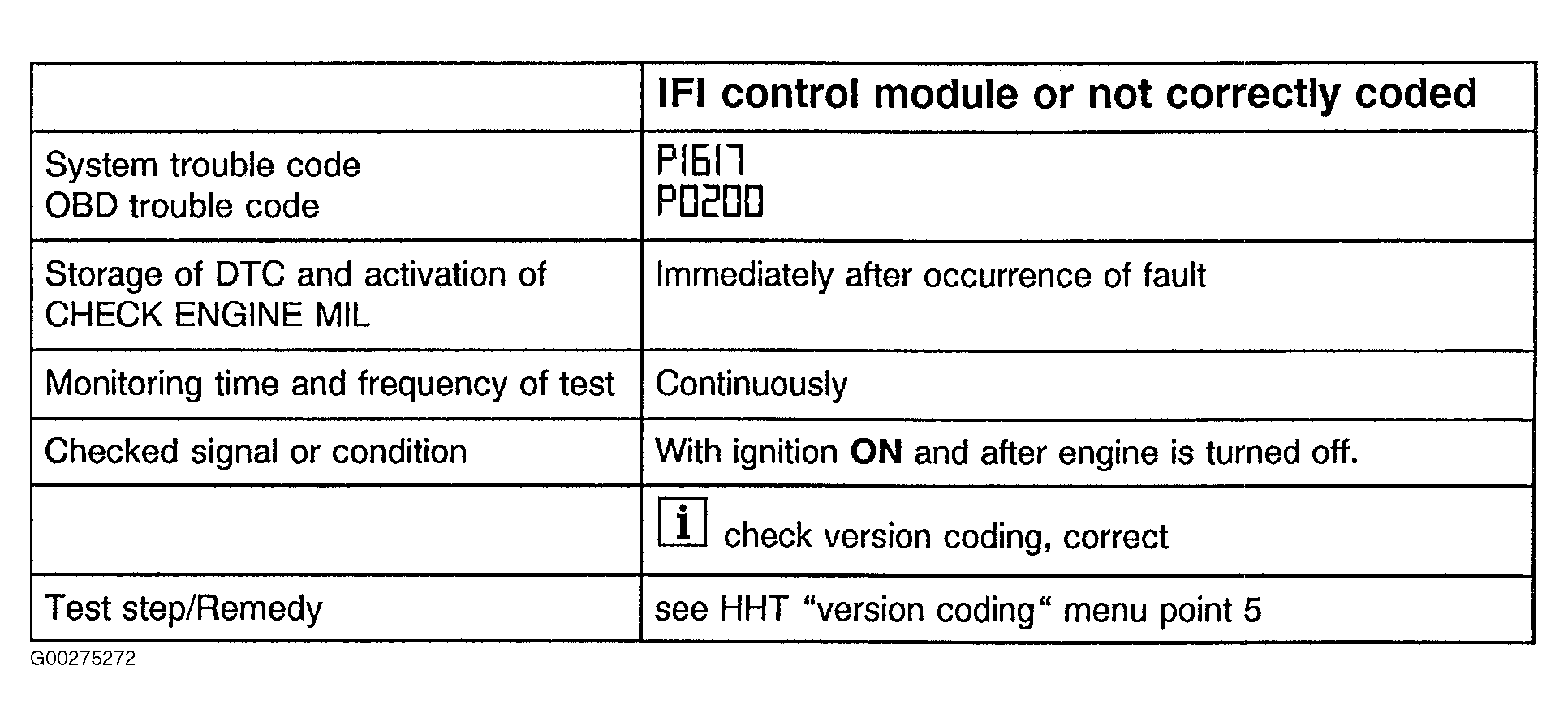

Fig 21: DTC Description For P1617 Or P0200: IFI Control Module Or Not Correctly Coded

G00275272

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

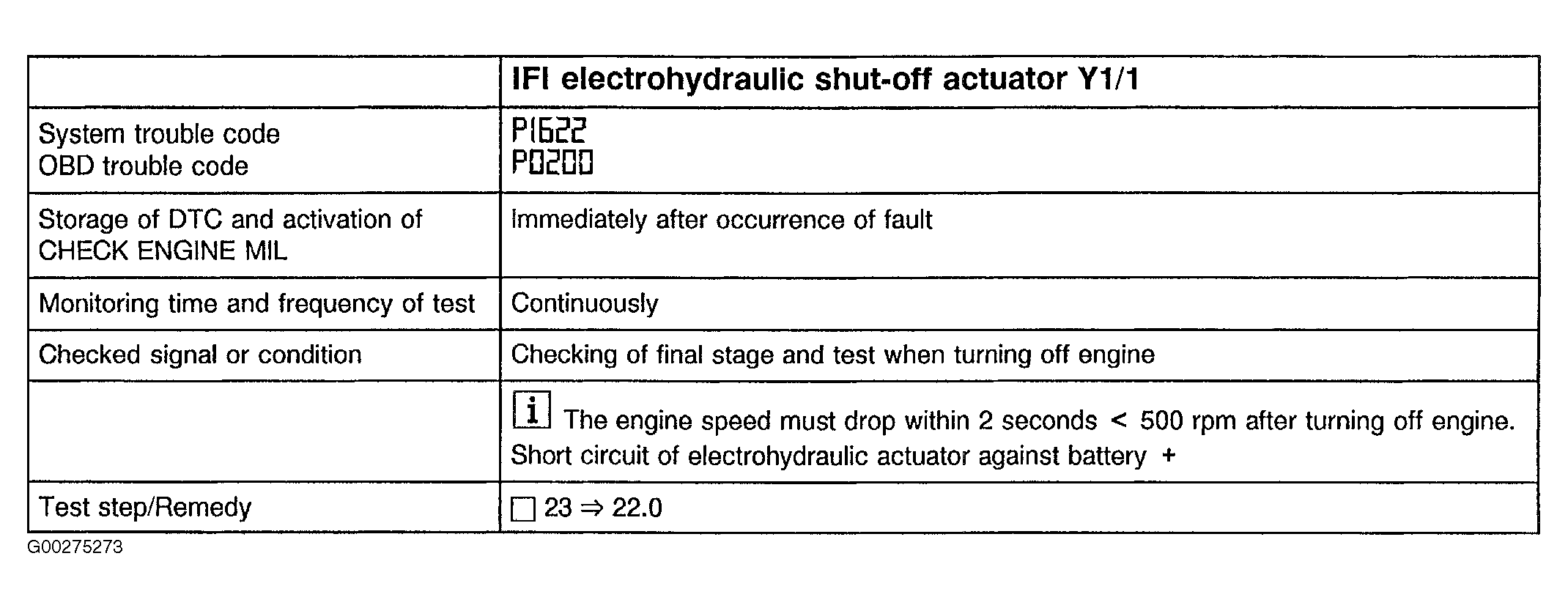

Fig 22: DTC Description For P1622 Or P0200: IFI Electrohydraulic Shut-Off Actuator (Y1/1)

G00275273

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
