Vacuum Line Routing

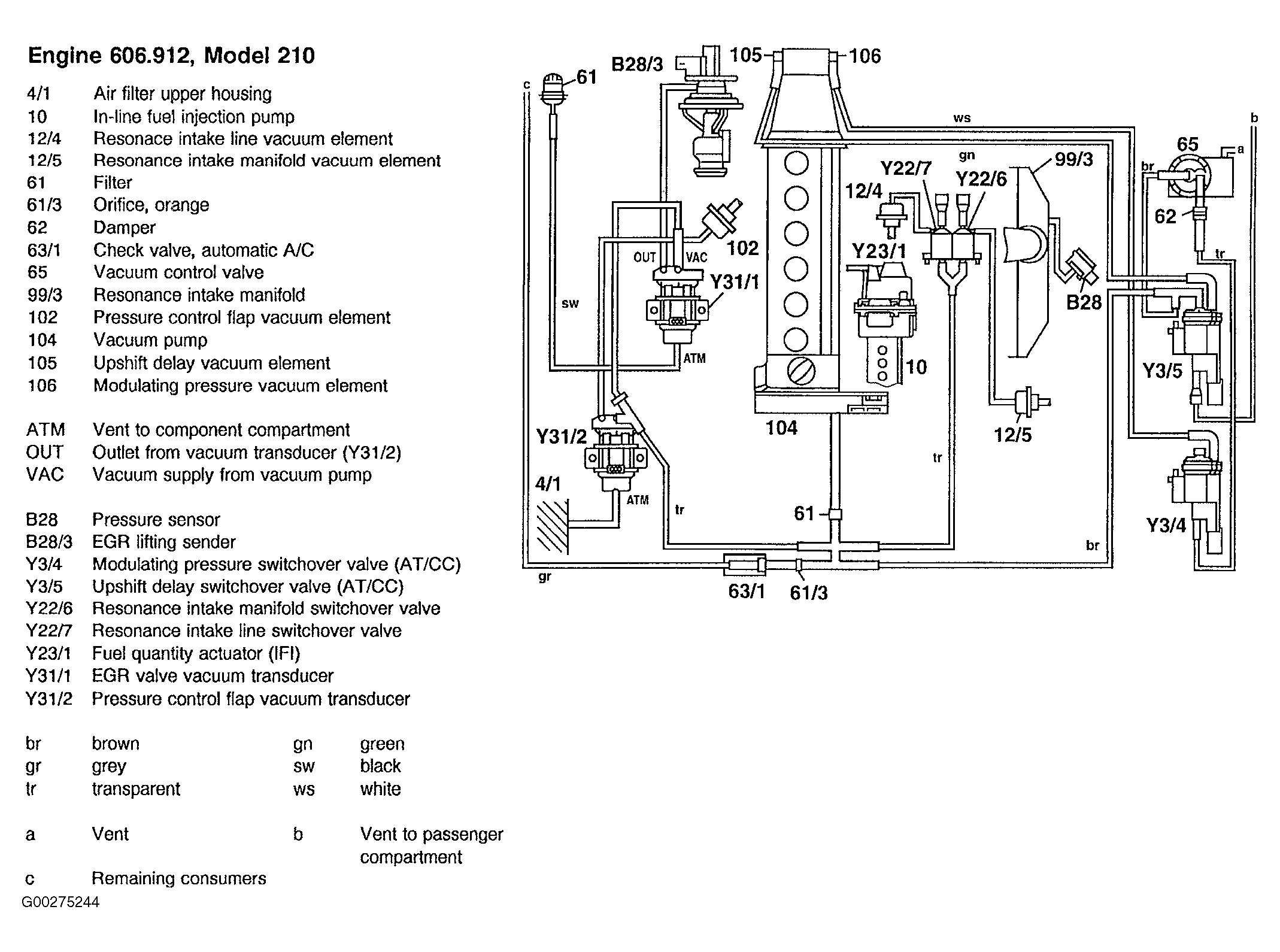

Fig 1: Vacuum Line Routing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
