Electrical System Tests Illustrations (Section 23)

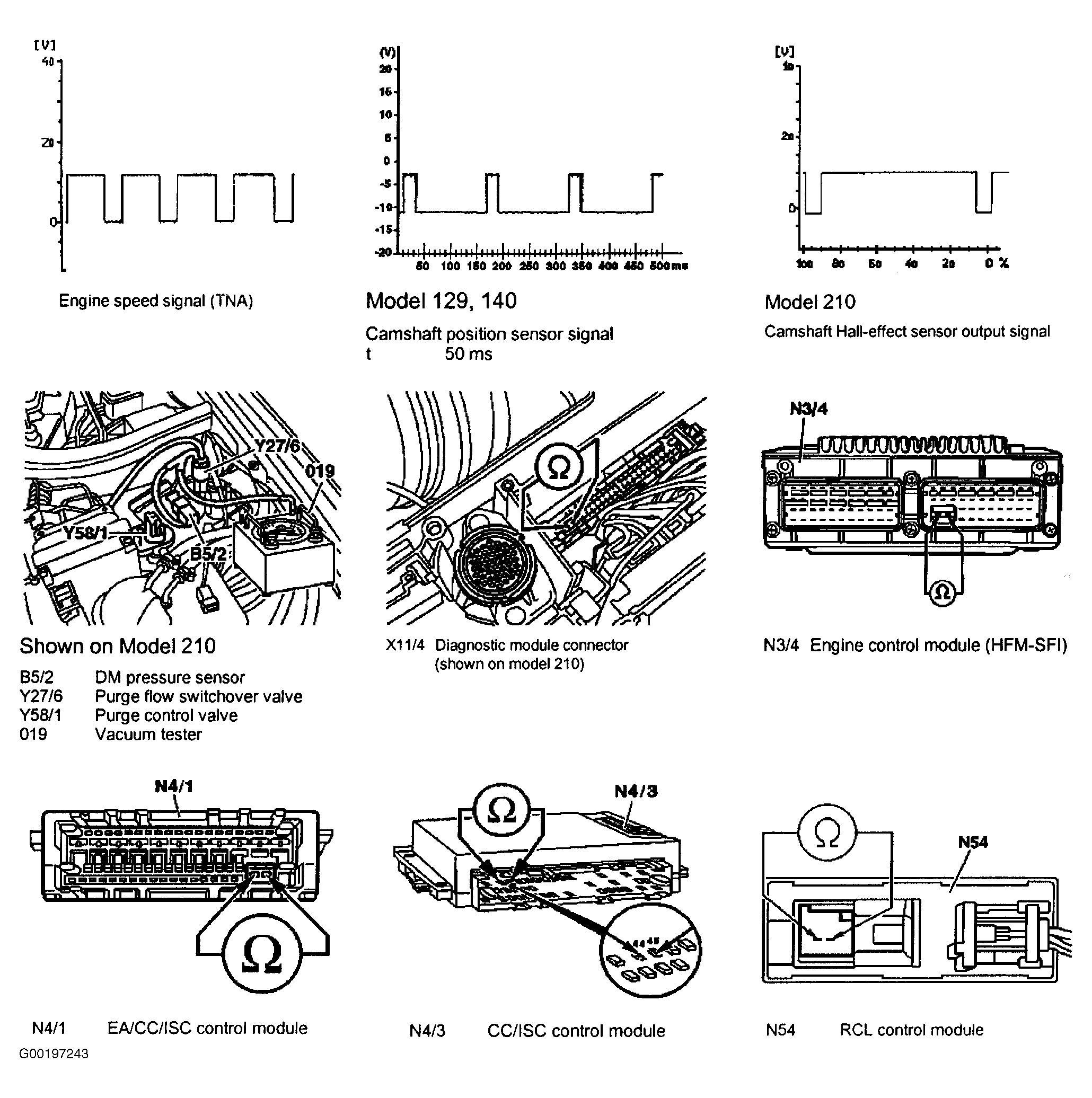

Fig 1: Electrical System Tests Illustrations (Section 23)
G00197243Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
