IFI System Test Steps 4.0-6.0

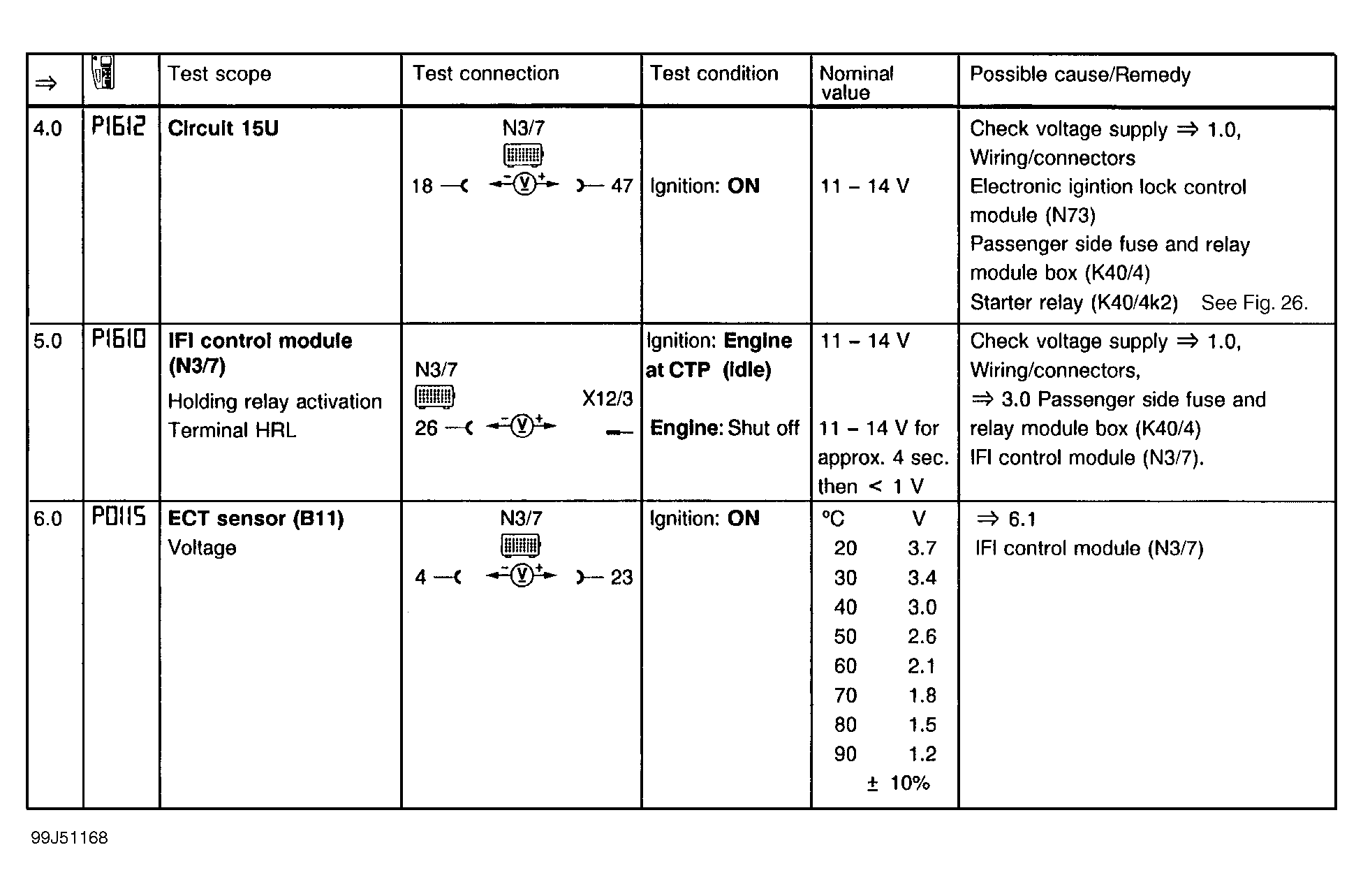

Fig 1: IFI System Test Steps 4.0-6.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
