IFI System Test Steps 6.1-7.0

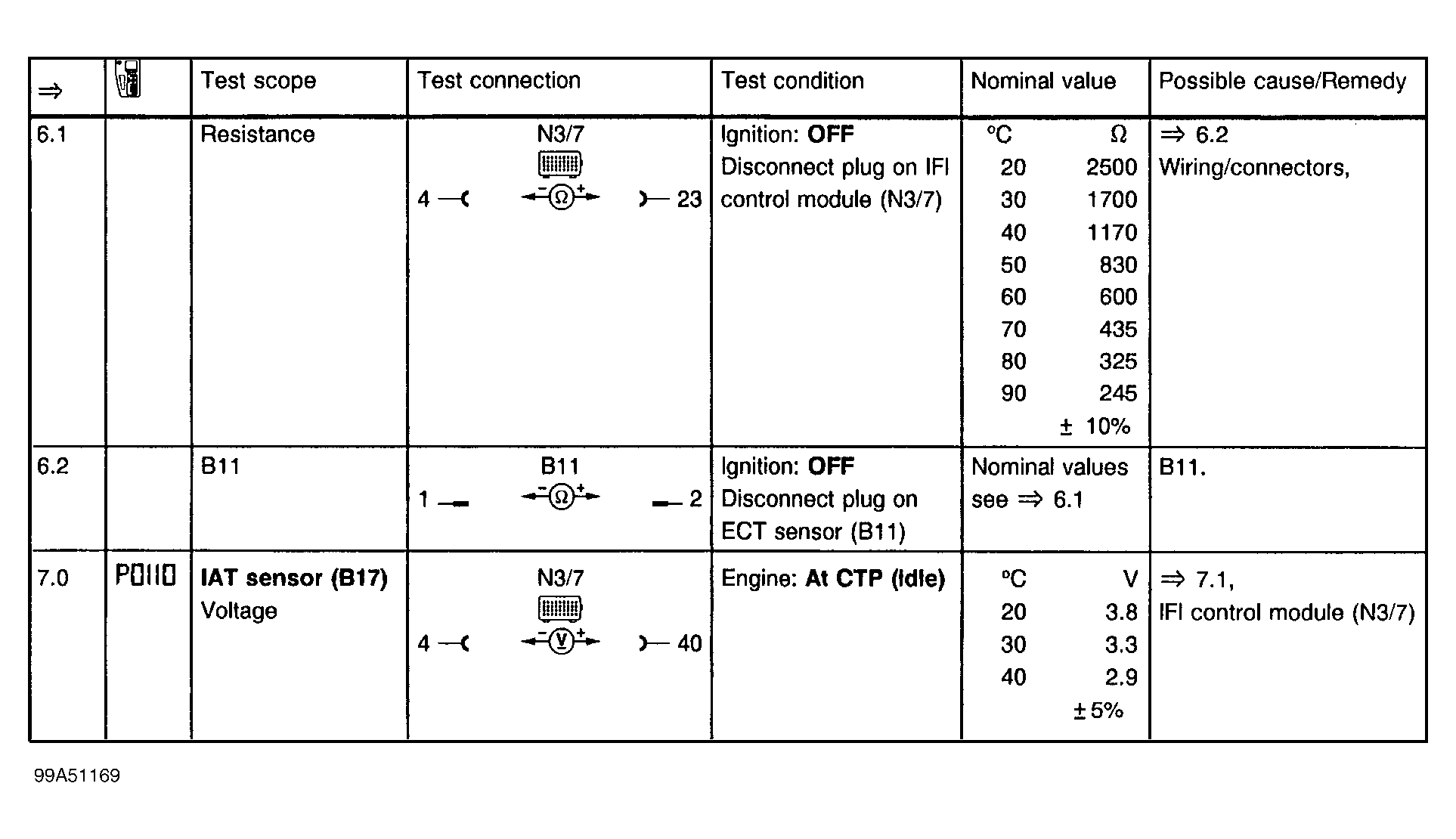

Fig 1: IFI System Test Steps 6.1-7.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
