Test 11: Central Locking System Safety Switch Time

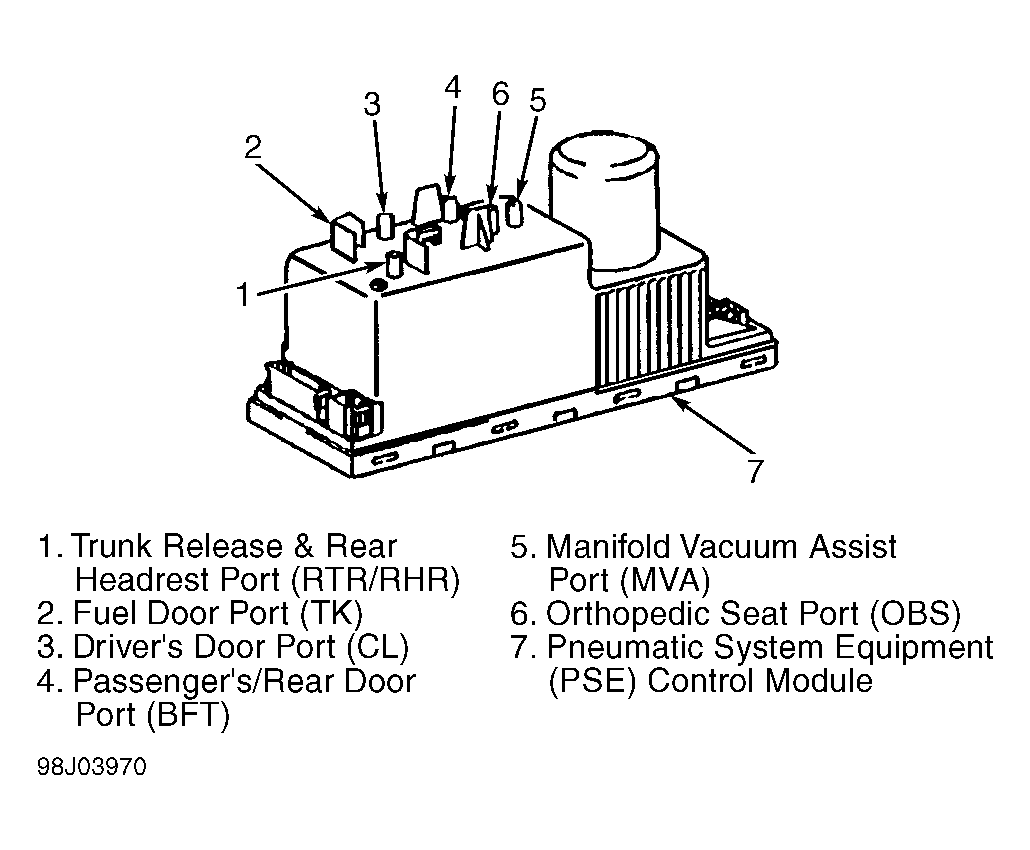

Disconnect Pneumatic System Equipment (PSE) control module pneumatic connector. See VACUUM DIAGRAMS . Cap pneumatic ports RHR/RTR, MVA and OSB on PSE control module. See Figure. Close all doors. Press interior central locking switch to unlock position. If vacuum pump in PSE control module runs for approximately 10 seconds, central locking system safety switch time is functioning properly. If vacuum pump in PSE control module does not run for approximately 10 seconds, check the following as possible cause and repair as necessary:

• Perform central locking TEST 1: INTERIOR CENTRAL LOCKING SWITCH. See CENTRAL LOCKING under SYSTEM TESTING .
• Replace PSE control module.
