TELE AID pushbutton, location/task/design/function - GF82.95-P-4101P

MODELS 203, 210, 220 up to 31.8.03 with CODE (855) TELE AID with CODE (930) Taxi emergency call for telediagnosis

MODELS 208.3, 215 up to 31.8.03 with CODE (855) TELE AID

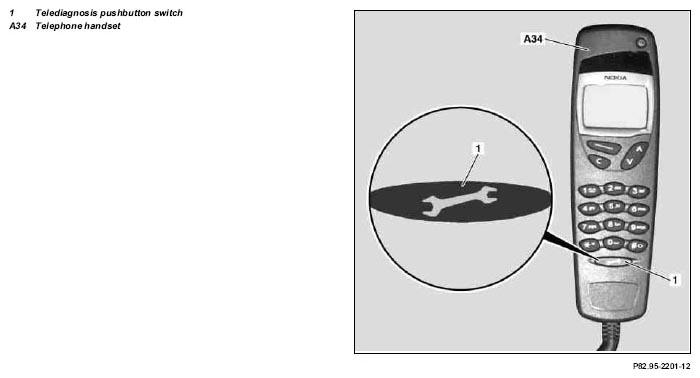

Fig 1: Identifying Telediagnosis Pushbutton Switch And Telephone Handset
G04633705Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  TELE AID pushbutton, task
  • Activating a manual telediagnosis call

  TELE AID pushbutton, design
  • The pushbutton switch for activating a telediagnosis call is integrated in the handset of the fixed installation cellular phone
