Inclination sensor arrangement/purpose/design/function - GF80.50-P-4105A

MODEL 170 up to 31.5.98 with CODE (882d) Towing sensor

MODELS 202 as of 1.6.97 up to 31.5.98, 208, 210 up to 31.5.98 with CODE (882a) Interior motion sensor (infrared)

MODELS 170, 202, 208, 210 as of 1.6.98, 215, 220 with CODE (551a) Anti-theft alarm system (ATA)

MODELS 215, 220 with CODE (491) U.S. version

Version up to 06/00

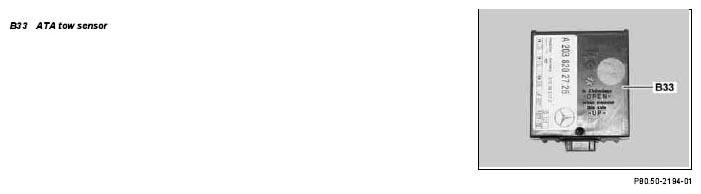

Fig 1: Identifying ATA Tow Sensor (Version Up To 06/00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Version as of 06/00

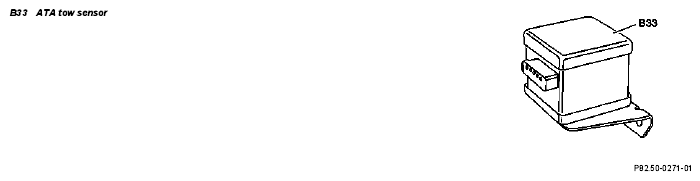

Fig 2: Identifying ATA Tow Sensor (Version As Of 06/00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ATA anti-towing sensor - location	Model 170	GF80.50-P-4105-02C
	Models 202, 208	GF80.50-P-4105-02E
	Model 210	GF80.50-P-4105-02F
	Models 215, 220	GF80.50-P-4105-02S
Inclination sensor - task	Monitoring position change of vehicle
Inclination sensor - design	The inclination sensor for ATA (B33) is fitted with electrodes in an electrolyte (electrically conductive liquid).
ATA anti-towing sensor, function		GF80.50-P-4105-01A
