Locking/unlocking vehicle with interior switch function - GF80.20-P-3009A

MODEL 202 as of 1.6.97, 208, 210.081 /281, 210 (except 210.081 /281) as of 1.3.97

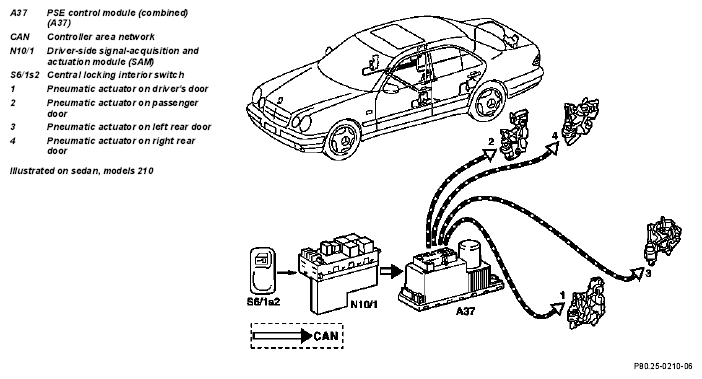

Fig 1: Identifying Locking/Unlocking Vehicle With Interior Switch Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

With the central locking interior switch (S6/1s2)  it is possible to lock or unlock the vehicle with the exception of the tank flap. This does not activate or deactivate the anti-theft alarm (ATA)  .

Actuation of the interior switch is recognized by the signal acquisition and actuation module (SAM) (N10/1)  . If the function of the switch is released the SAM transmits to the PSE control module (combined) (A37)  the command to unlock or lock the vehicle via the CAN bus.

The PSE unlocks or locks pneumatically.

The interior switch is enabled via the CAN bus by the central locking or unlocking functions.

The following situations are possible:

• Driver or passenger door open:

  Only unlocking is allowed

• Locking from outside with key:

  Only locking is allowed.

• Unlocking from outside with key:

When none of the doors is open, complete function.

If the vehicle is locked with the remote control key  and the remote control key is then inserted into the ignition lock the vehicle is in the same state as if it has been locked with switch S6/1s2.
