Accelerator position sensor location/task/design/function - GF07.04-P-5029H

ENGINE 604.910 in MODEL 202.121 to 31.7.96

ENGINE 605.910 in MODEL 202.125

ENGINE 605.960 in MODEL 202.128 /188

ENGINE 604.912 in MODEL 210.004 to 31.5.96

ENGINE 605.912 in MODEL 210.010 /210 /610

ENGINE 606.912 in MODEL 210.020

ENGINE 602.982 in MODEL 210.017 /217 /617

ENGINE 606.961 in MODEL 140.135

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 605.962 in MODEL 210.015 /215

Shown on model 202 to 11/94

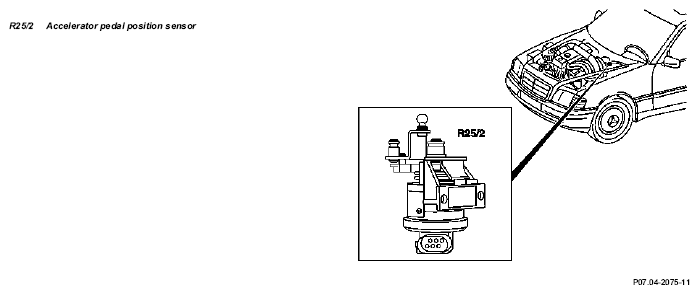

Fig 1: Identifying Accelerator Pedal Position Sensor - Shown On Model 202 To 11/94

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Accelerator pedal position sensor task	To detect the position of the accelerator pedal To detect closed throttle position To supply the corresponding signals to the IFI [ERE] control module (N3/7) or the DFI [EVE] control module (N3/8)
Accelerator pedal position sensor design	Comprises a variable resistor (rotary potentiometer), which is linked to the accelerator pedal via a Bowden cable, and a CTP switch
Accelerator pedal position sensor function		GF07.04-P-5029-01H
