IFI [ERE] control module location/task/function - GF07.12-P-3102H

ENGINE 605.910 in MODEL 202.125

ENGINE 605.960 in MODEL 202.128 to 31.3.96

ENGINE 605.912 in MODEL 210.010 to 31.5.96

ENGINE 606.912 in MODEL 210.020 except CODE (491) U.S. version

ENGINE 606.912 in MODEL 210.020 to 31.5.96 with CODE (491) U.S. version

Shown on model 202

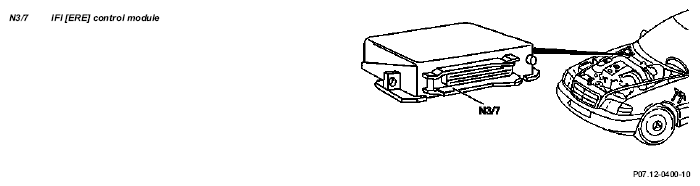

Fig 1: Identifying IFI (ERE) Control Module Location - Shown On Model 202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

IFI [ERE] control module task	To control the operation of the following systems in response to input signals: Fuel supply Injection quantity control Exhaust gas cleaning Boost pressure control (engine 605.960) Cruise control (AT only) Modulator pressure switchover (AT with CC only) A/C compressor shutoff To monitor inputs and outputs, test plausibility and record faults in memory To generate substitute values in the event of signal failure (limp-home mode) To perform diagnosis (output of faults stored in memory)
IFI [ERE] control module function	The IFI [ERE] control module (N3/7) is supplied with voltage from the overvoltage protection relay (K1) or the relay module (K40) (circuit 87 unfused). It detects the input signals and actuates the outputs in line with the operating conditions
Electronic inline injection system (IFI [ERE]) control module input/output signals	Engine 605 to 11/94	GF07.12-P-0001-03H
	Engine 605 as of 12/94	GF07.12-P-0001-03HA
	Engine 606	GF07.12-P-0001-03HB
IFI [ERE] fault storage function	Engine 605 to 11/94	GF07.12-P-3101HA
	Engine 605 as of 12/94	GF07.12-P-3101HB
	Engine 606	GF07.12-P-3101HC
Reading fault memory function		GF07.12-P-3103H
Electronic inline injection system (IFI [ERE]) formation of substitute value if no signal/ emergency start		GF07.12-P-0001-04H
CAN databus function		GF54.00-P-0005H
Overvoltage protection relay location/task/design/function	Model 202	GF07.13-P-3100H
Relay module location/task/design/function	Model 210	GF07.13-P-3101H
