IFI [ERE] control module location/task/function - GF07.12-P-3102HA

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

Shown on model 202

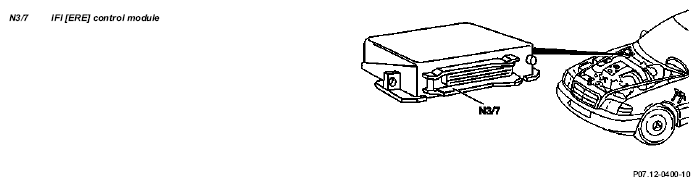

Fig 1: Identifying IFI (ERE) Control Module Location - Shown On Model 202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

IFI [ERE] control module task	To control the operation of the following systems in response to input signals: Fuel supply Injection quantity control Exhaust gas cleaning Boost pressure control (engine 605.960/962, 606.961/962) Cruise control (AT only) A/C compressor shutoff To monitor inputs and outputs, test plausibility and record faults in memory To generate substitute values in the event of signal failure (limp-home mode) To perform diagnosis (DTC readout)
IFI [ERE] control module function	The IFI [ERE] control module (N3/7) is supplied with voltage from the overvoltage protection relay (K40/4), the relay module (K40) or the base module (circuit 87 unfused). It detects the input signals and actuates the outputs in line with the operating conditions
Electronic inline injection system (IFI [ERE]) function diagram	Engine 605.912	GF07.12-P-0001-01HA
	Engine 605.960 except code 923: low emission D3, Engine 605.962	GF07.12-P-0001-01HB
	Engine 605.960 with code 923: low emission D3,	GF07.12-P-0001-01HJ
	Engine 606.912	GF07.12-P-0001-01HC
	Engine 606.961	GF07.12-P-0001-01HD
	Engine 606.962	GF07.12-P-0001-01HE
IFI [ERE] fault storage function	Engine 606.912	GF07.12-P-3101HD
Notes on DTC memory in electronic inline injection system (IFI [ERE])	Engine 605	AD07.12-P-2000-01A
	Engine 606	AD07.12-P-2000-01B
Reading fault memory function		GF07.12-P-3103H
CAN databus function		GF54.00-P-0005HA
Fuse and relay module location/task/design/function	Model 202 Model 210 as of 03/97	GF07.13-P-3141H
Relay module location/task/design/function	Model 210 to 02/97	GF07.13-P-3101H
