IFI [ERE] quantity control function - GF07.12-P-3015H
ENGINE 605.910 in MODEL 202.125
ENGINE 605.960 in MODEL 202.128 to 31.3.96
ENGINE 605.912 in MODEL 210.010 to 31.5.96
ENGINE 606.912 in MODEL 210.020 except CODE (491) U.S. version
ENGINE 606.912 in MODEL 210.020 to 31.5.96 with CODE (491) U.S. version

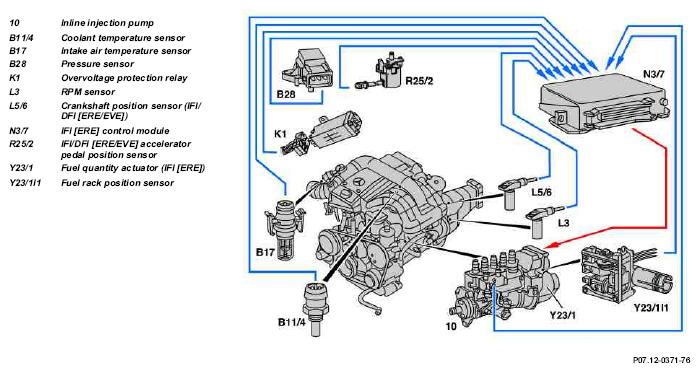

Model 202 to 11/94

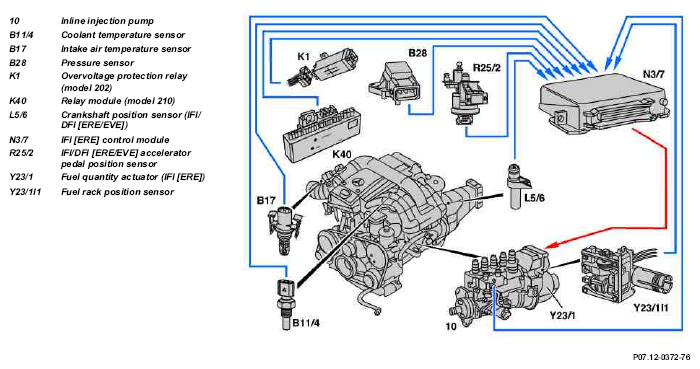

Model 202 as of 12/94, model 210
Task
To increase or decrease fuel supply in relation to the position of the accelerator pedal.
Function
The IFI [ERE] control module (N3/7) receives the required signals from the components listed below and regulates the fuel quantity via the fuel quantity actuator (IFI [ERE]) (Y23/1) and the control rod.
| Overvoltage protection relay location/task/design/function | Model 202 | GF07.13-P-3100H | |
| Relay module location/task/design/function | Model 210 | GF07.13-P-3101H | |
| IFI [ERE] control module location/task/function | GF07.12-P-3102H | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| Starter ring gear speed sensor (L3) location/task/function | Model 202 to 11/94 | GF07.04-P-5024H | |
| Fuel quantity actuator (IFI [ERE]) location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H | ||
| Accelerator pedal position sensor location/task/design/function | GF07.04-P-5029H | ||
| Coolant temperature sensor location/design/task/function | GF07.04-P-5026H | ||
| Intake air temperature sensor location/design/task/function | GF07.04-P-2100H | ||
| Pressure sensor location/design/task/function | GF07.04-P-5014H |
