IFI engine stop function - GF07.12-P-2004HA
ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610
ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
To shut down engine when ignition is set to "OFF", i.e. to place the control rod of the IFI [ERE] fuel quantity actuator (Y23/1) and the IFI [ERE] electrohydraulic shutoff actuator (Y1/1) into the STOP position.
Function

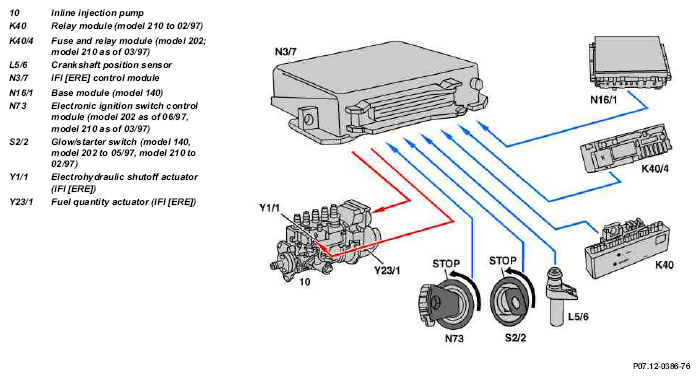

Upon turning the key to the "STOP" position, the self-holding circuit in the IFI [ERE] control module (N3/7) energizes the IFI [ERE] electrohydraulic shutoff actuator (Y1/1). The IFI [ERE] control module (N3/7) checks whether the engine has stopped. The IFI [ERE] electrohydraulic shutoff actuator (Y1/1) is then brought back into circuit. This sequence is necessary in order to check the function of the IFI [ERE] electrohydraulic shutoff actuator (Y1/1).
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module location/task/design/function | Model 210 to 02/97 | GF07.13-P-3101H | |
| Base module (N16/1) | Model 140 | ||
| Electronic ignition switch control module location/task/design/function | Model 202 as of 06/97 Model 210 as of 03/97 |
GF80.57-P-4102A | |
| IFI [ERE] control module location/task/function | GF07.12-P-3102HA | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| IFI [ERE] electrohydraulic shutoff actuator location/task/design/function | GF07.12-P-3133H | ||
| Fuel quantity actuator (IFI [ERE]) location/task/function | GF07.12-P-3131H | ||
| Fuel quantity actuator (IFI [ERE]) function | GF07.12-P-3131-01H |
