IFI smooth running control function - GF07.12-P-3003HA
ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610
ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
Reducing irregular engine running produced in the idle speed phase (vibrations).
Operation

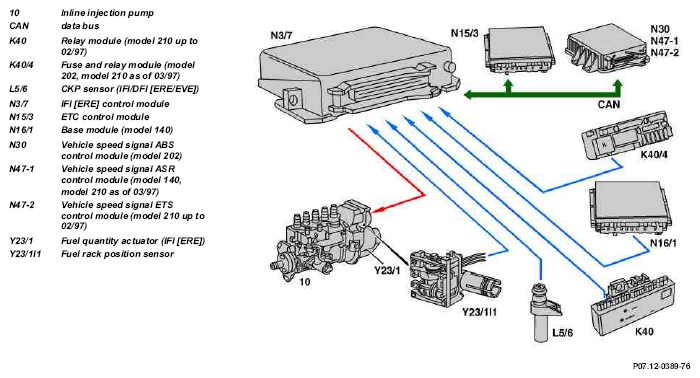

The IFI control module (N3/7) receives from the IFI/DFI crankshaft position sensor (L5/6) an engine speed signal and detects irregularities in engine speeds. These irregularities in engine speed are rectified by controlling the quantity of fuel injected at the specific cylinders. Idle speed in this case remains constant.
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module position / task / design / function | Model 210 up to 02/97 | GF07.13-P-3101H | |
| IFI control module, location/task/function | GF07.12-P-3102HA | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116H | ||
| ETC control module, location/task | Transmission 722.6 | GF27.19-P-4012G | |
| ABS control module, location/task/design/function | Model 202 | GF42.30-P-4500A | |
| ETS control module position / task / design / function | Model 210 up to 02/97 | GF42.35-P-4500A | |
| Location / task / design / function of ASR V control module | Model 140 Model 210 as of 03/97 |
GF42.40-P-4500A | |
| CAN databus function | GF54.00-P-0005HA |
