Pump element task/design/function - GF07.02-P-5004H
ENGINE 605.910 in MODEL 202.125
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 605.912 in MODEL 210.010 /210 /610
ENGINE 606.912 in MODEL 210.020
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Design
| Pump element task | To deliver fuel | ||

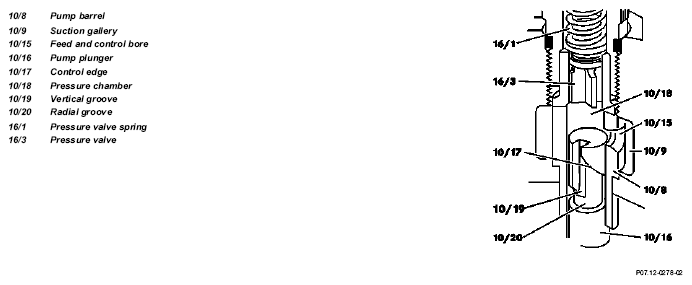

| Pump element design | The pump plunger (10/16) is provided with a vertical groove (10/19) and a helical cut in its side. This plunger helix forms a control edge (10/17) that serves to regulate the quantity of fuel for injection. The pump barrel is provided with a bore (10/15) (feed and control bore), through which the fuel travels from the suction gallery to the pressure chamber and through which it can flow back again at the end of delivery. |
||
| Pump element function | GF07.02-P-5004-01H |
