Correction programming function - GF07.61-P-3031F

ENGINE 104.941 as of 1.6.96

ENGINE 104.943 /944 /991 /994 as of 1.6.95

ENGINE 104.945/995

ENGINE 111.921 /943 /944 /947 /951 /952 /955 /956 /957 /958 /973 /975 /977 /982 /983

ENGINE 111.945 /961 /974 as of 1.8.96 111.970 as of 1.5.96

ENGINE 111.942 as of 1.9.98

ENGINE 111.946 as of 1.6.98

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980/981/982/985

ENGINE 120.982/983

ENGINE 137.970

ENGINE 166.940 /960 /990 /995

ENGINE 166.960 with CODE (922) Power-reduced

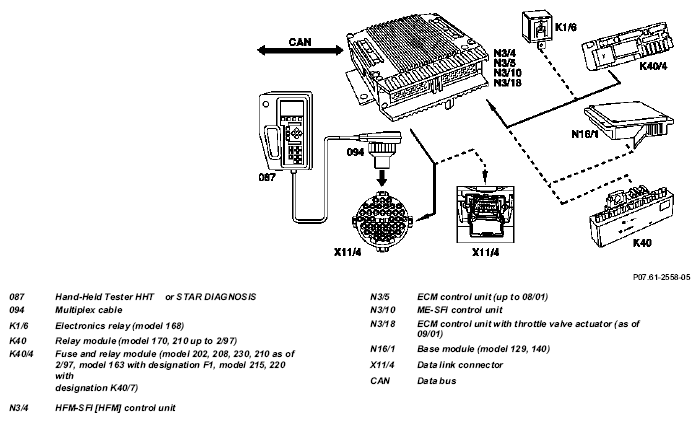

Fig 1: Identifying Correction Programming Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

With the correction programming it is possible to activate different maps of the engine management system in the engine control unit.

The coding is performed with the Hand-Held Tester (HHT) or with STAR DIAGNOSIS. The following maps can be influenced:

Ignition maps for adapting to different fuel quality (except )
Mixture maps for enriching the fuel/air mixture in different operating states (except )
Idle speed on automatic transmission and engaged selector lever position
CO setting on models without TWC (except )
Fault setting conditions for rendering smooth operation identification less sensitive
Cylinder shutoff threshold (on engines fitted with cylinder shutoff)

Motor electronics control unit, location/task/ design/function	other than engine 111 EVO	GF07.61-P-5000F
	Engine 111 EVO	GF07.61-P-5000GS
HFM-SFI control unit, location/task/design/ function	Engine 104, 111 HFM-SFI	GF07.51-P-4103D
ECM control unit, location/task/design/function	Engine 166 up to 08/01 (hot film mass air flow sensor and intake air temperature sensor integrated)	GF07.53-P-4103GC
ECM control unit, location/task/design/function	Engine 166 as of 09/01 (throttle valve actuator integrated)	GF07.53-P-4103GD
