Relay module location/task/design/function - GF07.13-P-3101H

ENGINE 602.982 in MODEL 210.017 /217 /617 to 28.2.97

ENGINE 604.912 in MODEL 210.004 to 28.2.97

ENGINE 604.917 in MODEL 210.003 to 28.2.97

ENGINE 605.912 in MODEL 210.010 /210 /610 to 28.2.97

ENGINE 606.912 in MODEL 210.020

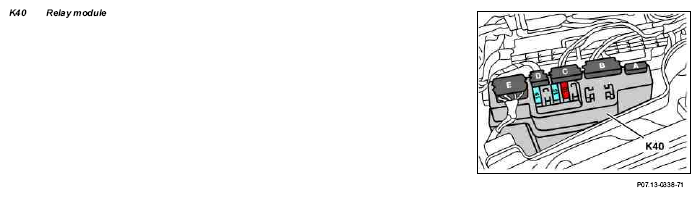

Fig 1: Identifying Relay Module Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Relay module position	In the control module box in the engine compartment
Relay module task	To supply power to the control modules and electrical components To protect the circuit of control modules and electrical components To energize the IFI [ERE] control module (N3/7) or DFI [ERE] control module (N3/8) when the ignition is OFF (self-holding control)
Relay module design		GF07.13-P-3101-01H
Relay module function		GF07.13-P-3101-02H
