Rear-end collision, function - GF91.60-P-2004A
MODEL 129, 140, 170, 202, 208, 210 up to 1.6.98
MODEL 210 as of 1.6.98 up to 30.6.99 except CODE (290) Windowbag except CODE (293) Left and right rear sidebag except CODE (491) U.S. version except CODE (498) Japanese version
Illustrated on model 140

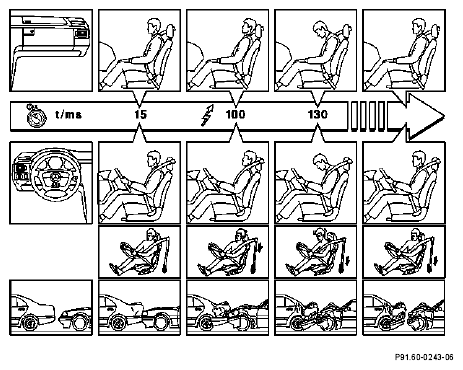

Triggering of the emergency tensioning retractor during a severe rear-end collision depends on the version of ETR control module with airbag (N2/2).
Control module manufacturer:
Bosch from beginning of production
Temic without side airbag as of 9/95
Temic with side airbag as of introduction of side airbag
The ETR control module with airbag (N2/2) evaluates the acceleration caused by the rear-end collision and upon exceeding a certain value triggers the squibs in the emergency tensioning retractors (R12/1, R12/2).
On vehicles with:
version (code 491) or
- up to 6/93.
A check is made whether the belts are fastened. If the seat belt is not fastened the emergency tensioning retractor is not triggered .
On vehicles with OSR (front passenger seat occupied recognition sensor) or ACSR (front passenger seat occupied recognition sensor with automatic child seat recognition) a check is made whether the passenger seat is occupied.
If the passenger seat is not occupied or a child seat not recognized the emergency tensioning retractor on the passenger side is not triggered.
| ETR control module with airbag, location/purpose/design/function | GF91.60-P-4006A | ||
| Emergency tensioning retractor, location/purpose/design/function | GF91.40-P-4000A | ||
| Seat belt buckle switches, location/purpose | Models 129, 140, 202 up to 31.5.93, U.S. version : Models 129, 140, 170, 202, 208, 210 |
GF91.60-P-4013A | |
| Front passenger seat occupied recognition sensor, location/purpose/design/function | GF91.60-P-4010A | ||
| Front passenger seat occupied recognition sensor with automatic child seat recognition, location/purpose/design/function | Models 170 and 208 and model 210 as of 6/98 Models 129, 140, 202 as of 6/97 Model 210 from 3/97 up to 6/98 Model 202 as of 12/97 |
GF91.60-P-4008A | |
| Automatic child seat recognition sensor malfunction indicator lamp, location/purpose | Model 170 and 208 and Model 210 as of 6/98 Models 129, 140, 202 as of 6/97 Model 210 from 3/97 up to 6/98 Model 202 as of 12/97 |
IGF91.60-P-4012A | |
| Triggering system of supplemental restraint system (SRS) | Model 129 | GF91.60-P-0002-08F | |
| Model 140 | GF91.60-P-0002-08E | ||
| Model 170 | GF91.60-P-0002-08D | ||
| Model 202 | GF91.60-P-0002-08C | ||
| Model 208 | GF91.60-P-0002-08B | ||
| Model 210 | GF91.60-P-0002-08A |
