Component Locations

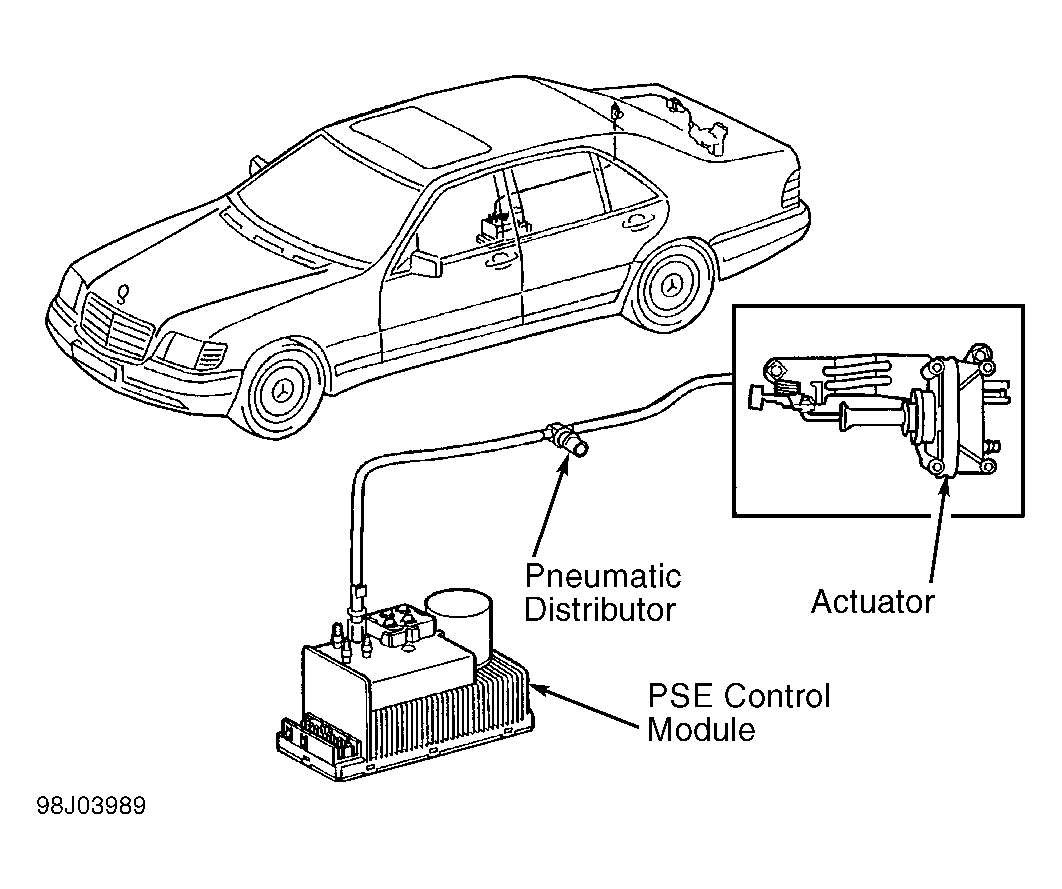

For electrical component locations, refer to illustration. See Fig 1, Fig 2 or Fig 3 . For pneumatic component locations, refer to illustration under VACUUM DIAGRAMS . See Figure-Figure .

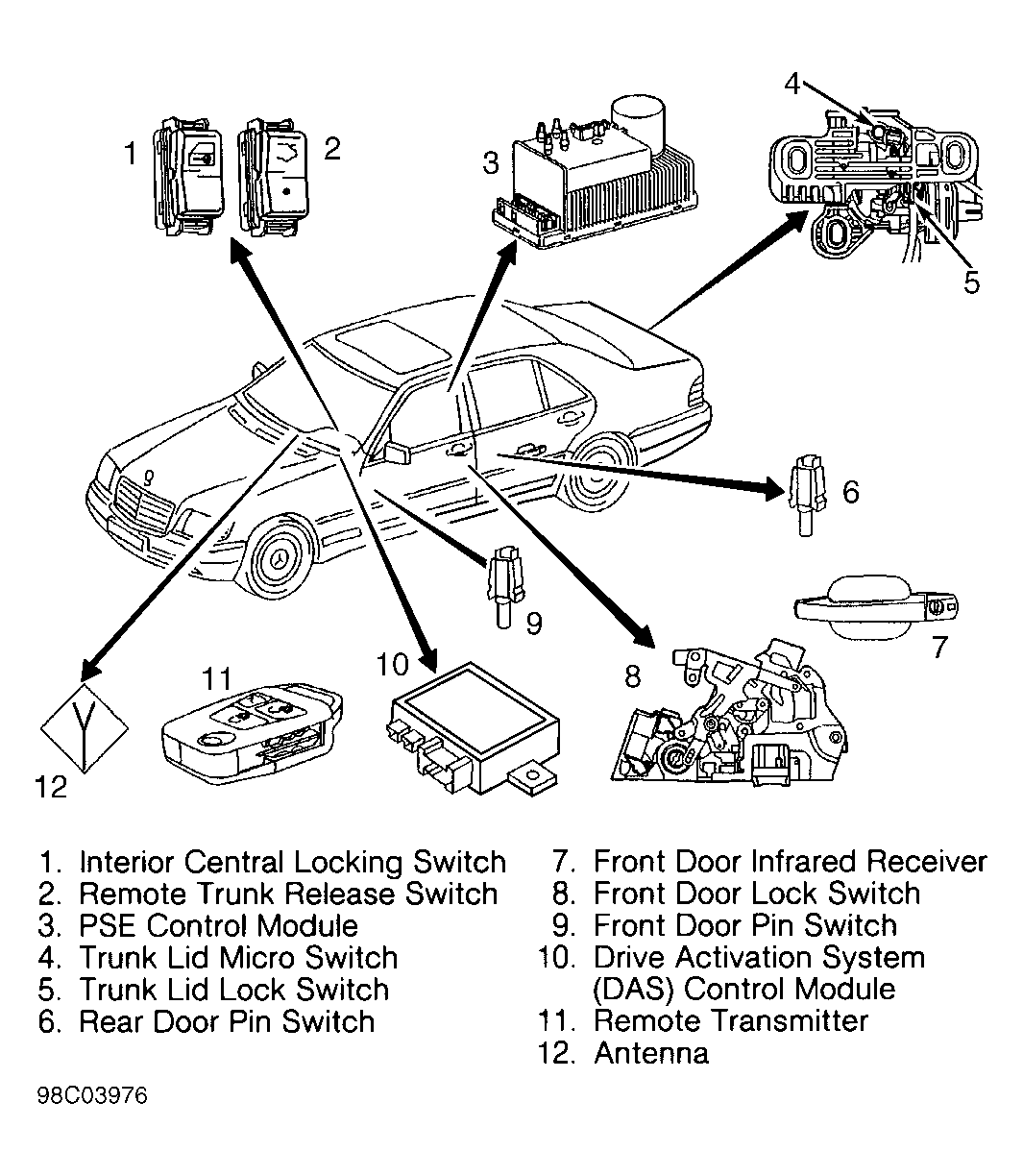

Fig 1: Location Pneumatic System Electrical Components (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

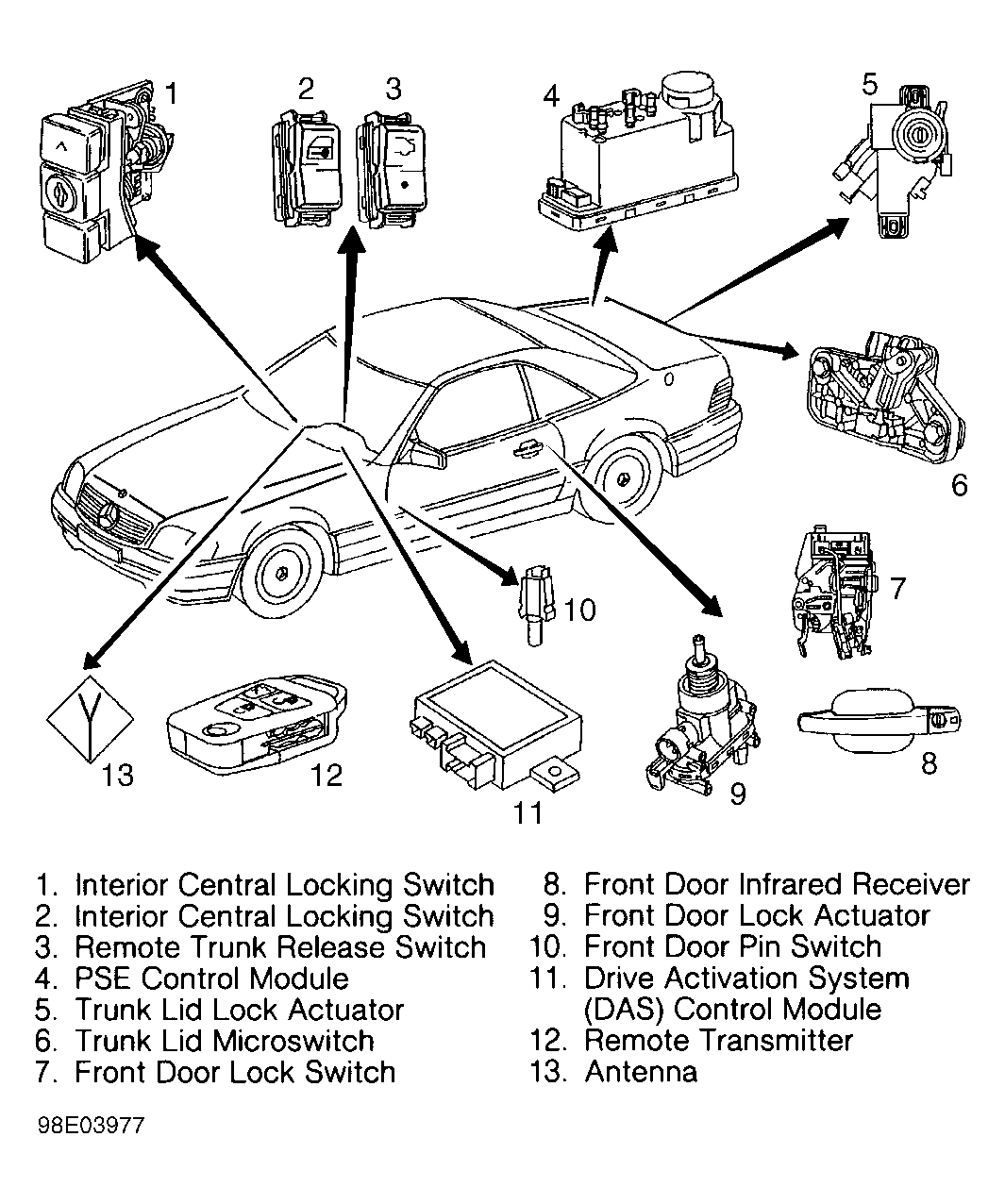

Fig 2: Location Pneumatic System Electrical Components (SL500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

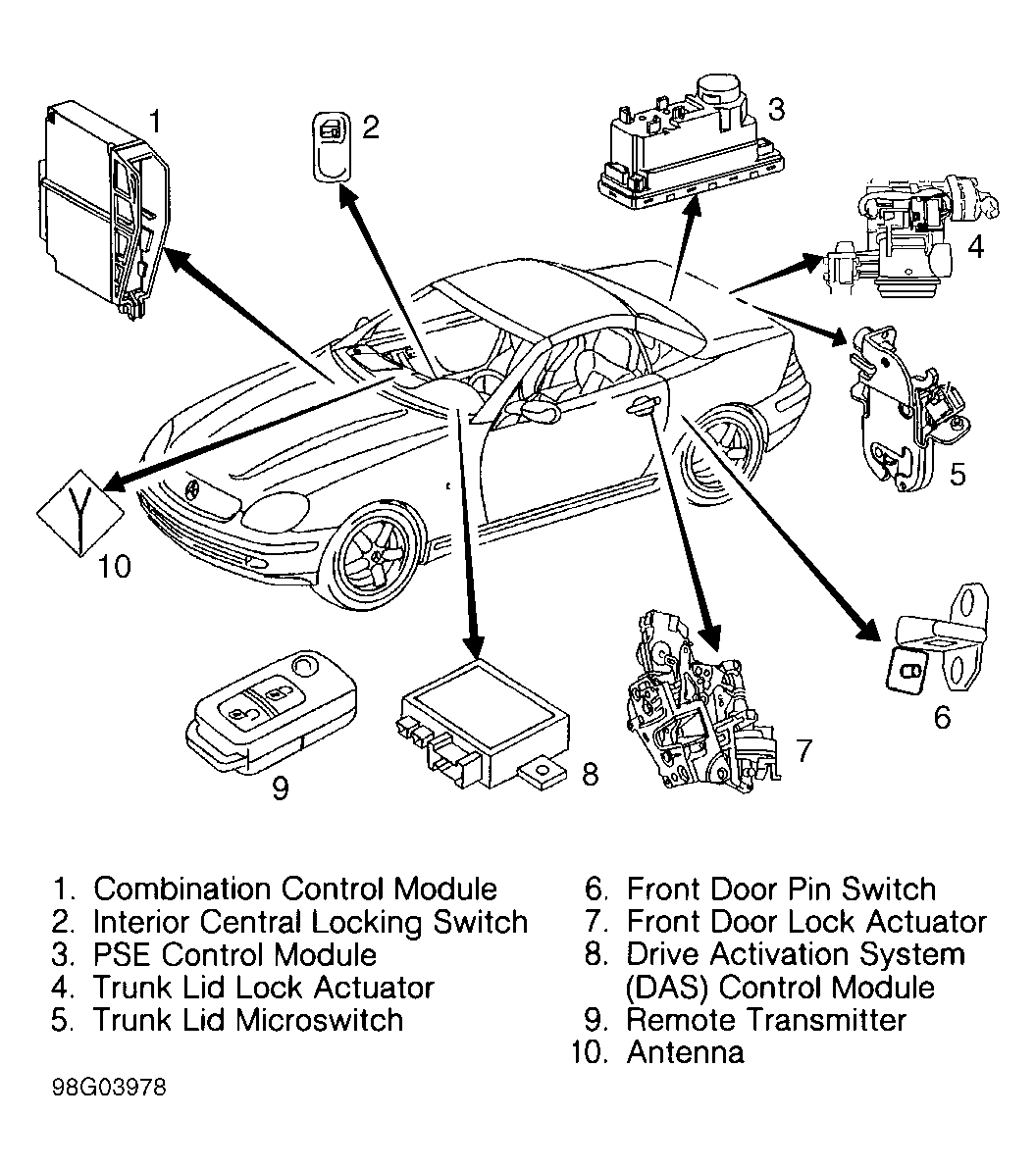

Fig 3: Location Pneumatic System Electrical Components (SLK230)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
