Open trunk lid manually function - GF80.20-P-3013KA
MODELS 208.435 /444 /445 /447 /448 /465 /470

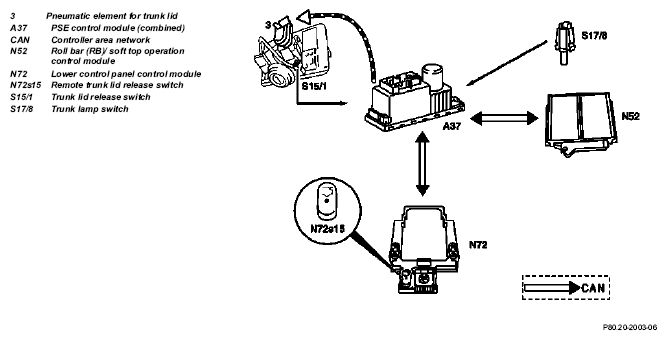

Networking of components
Function prerequisites:
The soft top must be fully opened or closed.
The pneumatic system equipment (PSE), combination functions (A37) receives the corresponding information from the roll bar (RB)/soft top operation control module (N52) over the CAN data bus.
When the lock cylinder in the trunk lid lock is in position 0° (1), the trunk lid release switch (S15/1) is activated when the lock cylinder is pushed in. Actuation of the switch is detected by the pneumatic system equipment (PSE), combination functions (A37) . If the central locking is in unlocked condition, the trunk lid is pneumatically opened by the PSE.
| Trunk lid status indicator | GF80.20-P-4015A | ||
| Open trunk lid pneumatically | GF80.20-P-4016A | ||
| Pneumatic system equipment (PSE) | GF80.20-P-4106A | ||
| Roll bar/soft top operation control module, position/task/design/function | GF77.39-P-3100KA |
