Electric steering column locking, data buses, testing electrical system (RFL/RCL) - AD80.35-P-6000-34A

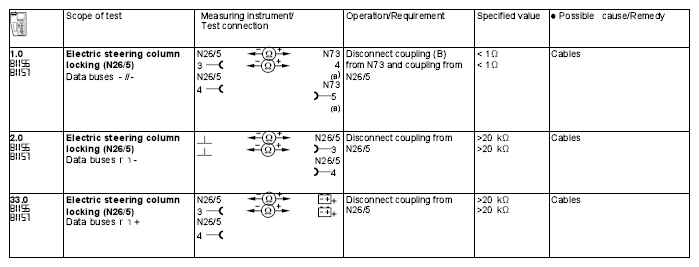

Fig 1: Electric Steering Column Locking, Data Buses, Testing Electrical System (RFL/RCL) Table
