Center console power window switch, function - GF72.29-P-4103-02KA

MODELS 208.435/444/445/447/448/465/470

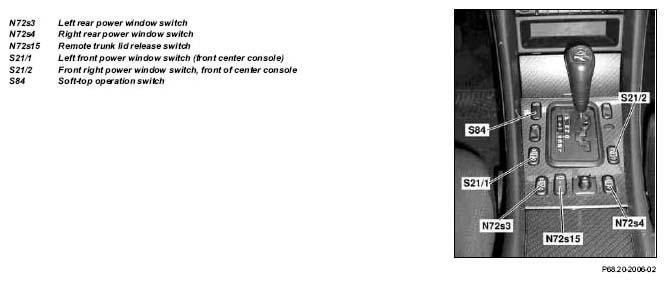

Fig 1: Identifying Center Console Power Window Switches Function

Functions of the power window switch

The five respective mechanical positions of the left rear power window switch (N72s3) and right rear power window switch (N72s4) are input by the lower control panel control module (N72) , the positions of the left front power window switch, front center console (S21/1) and left front power window switch, front center console (S21/1) are input by the roll bar (RB)/soft-top operation control module (N52) .

The switches are voltage-coded - the electrical resistance of the switches assumes different values, corresponding to the position of the switch contact.

second upper detent → automatic window raising (not activated)

first upper detent → manual window raising

center position → neutral

first lower detent → manual window lowering

second lower detent → automatic window lowering

Provided the function prerequisites

no overvoltage/undervoltage
circuit 15 on or circuit 15R on

are satisfied, the lower control panel control module (N72) sends a CAN message with the switch positions of switches N72s3 and N72s4 to N52 . With continuous switch actuation, the CAN message is transmitted for a maximum of 25 sec.

Equally, the N52 sends a CAN message with the switch positions of switches S21/1 and S21/2 to the relevant door control modules.

The rear power windows are actuated directly by the roll bar (RB)/soft-top operation control module (N52) .
