IFI System Test Steps 1.0-3.0

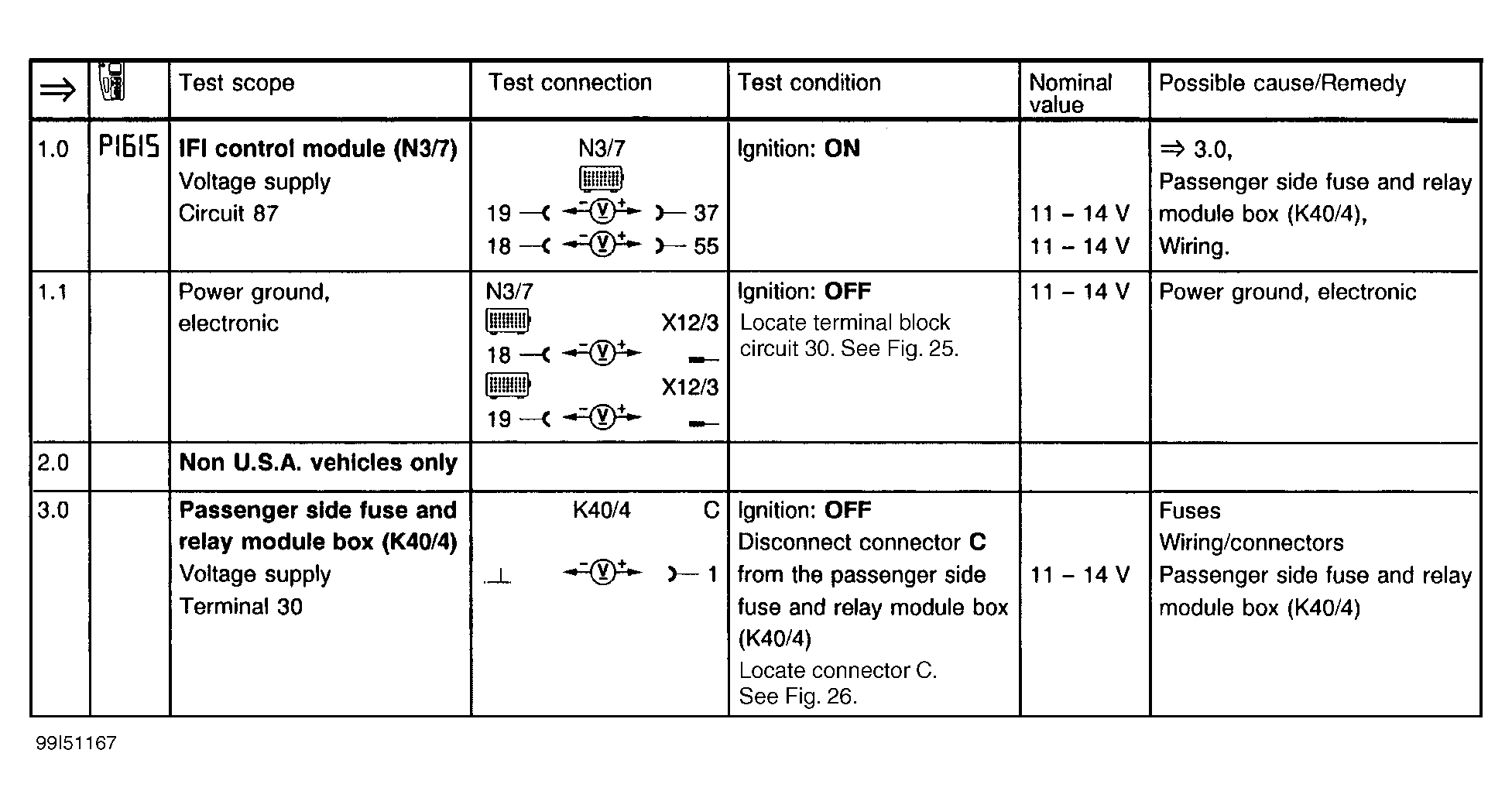

Fig 1: IFI System Test Steps 1.0-3.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
