Connector Identification

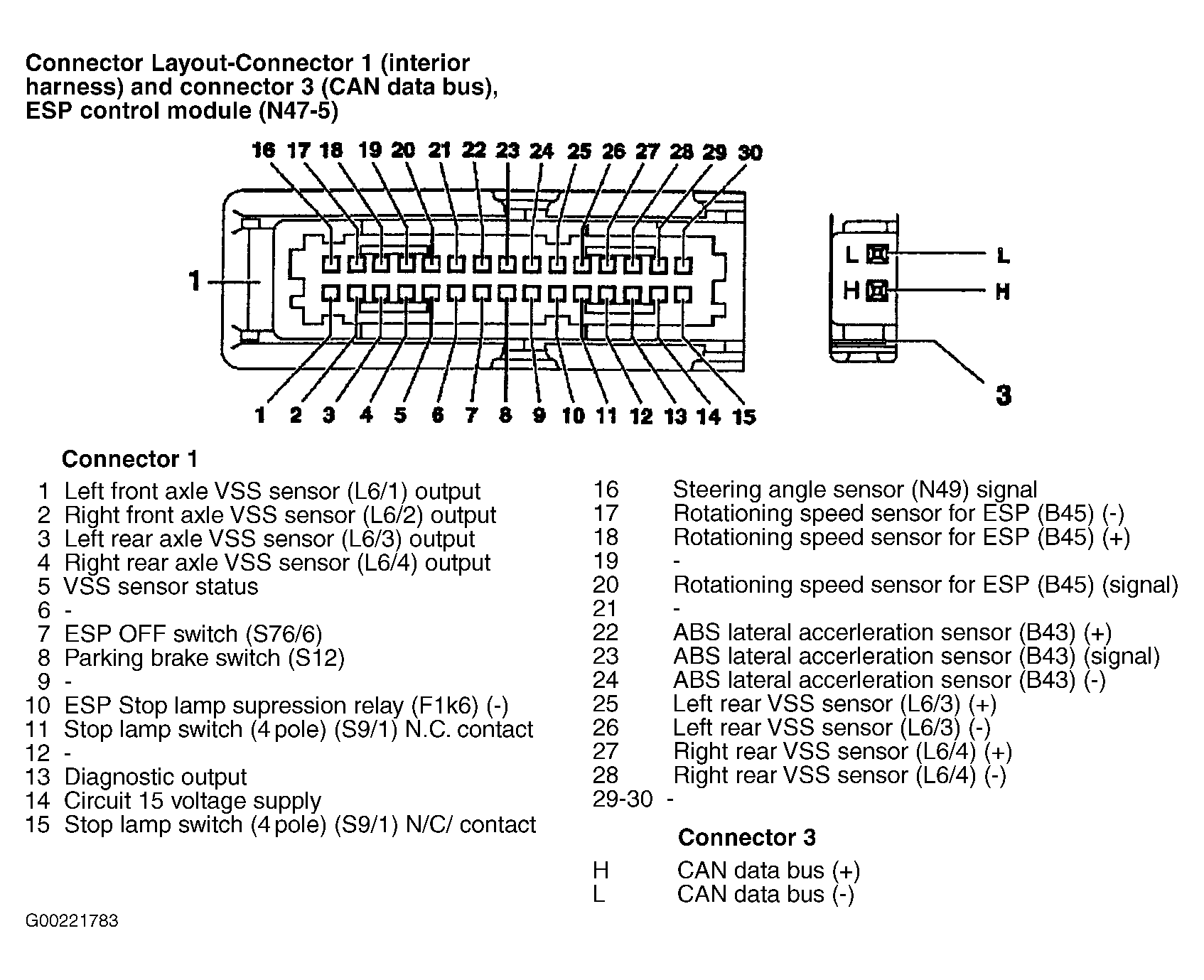

Fig 1: Connector Identification - Connector 1
G00221783Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

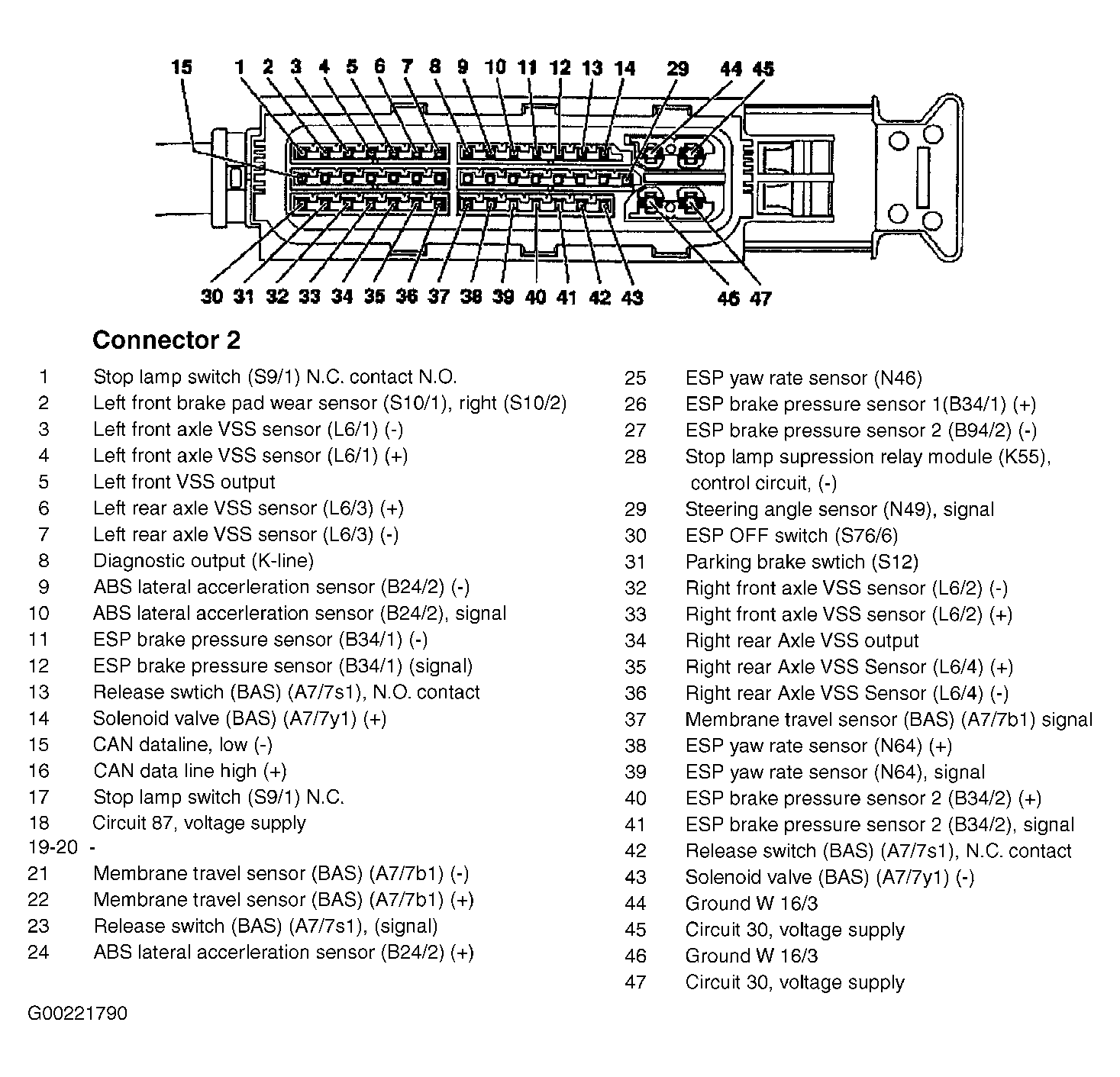

Fig 2: Connector Identification - Connector 2
G00221790Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
