Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Fuse Box In fuse & relay box.

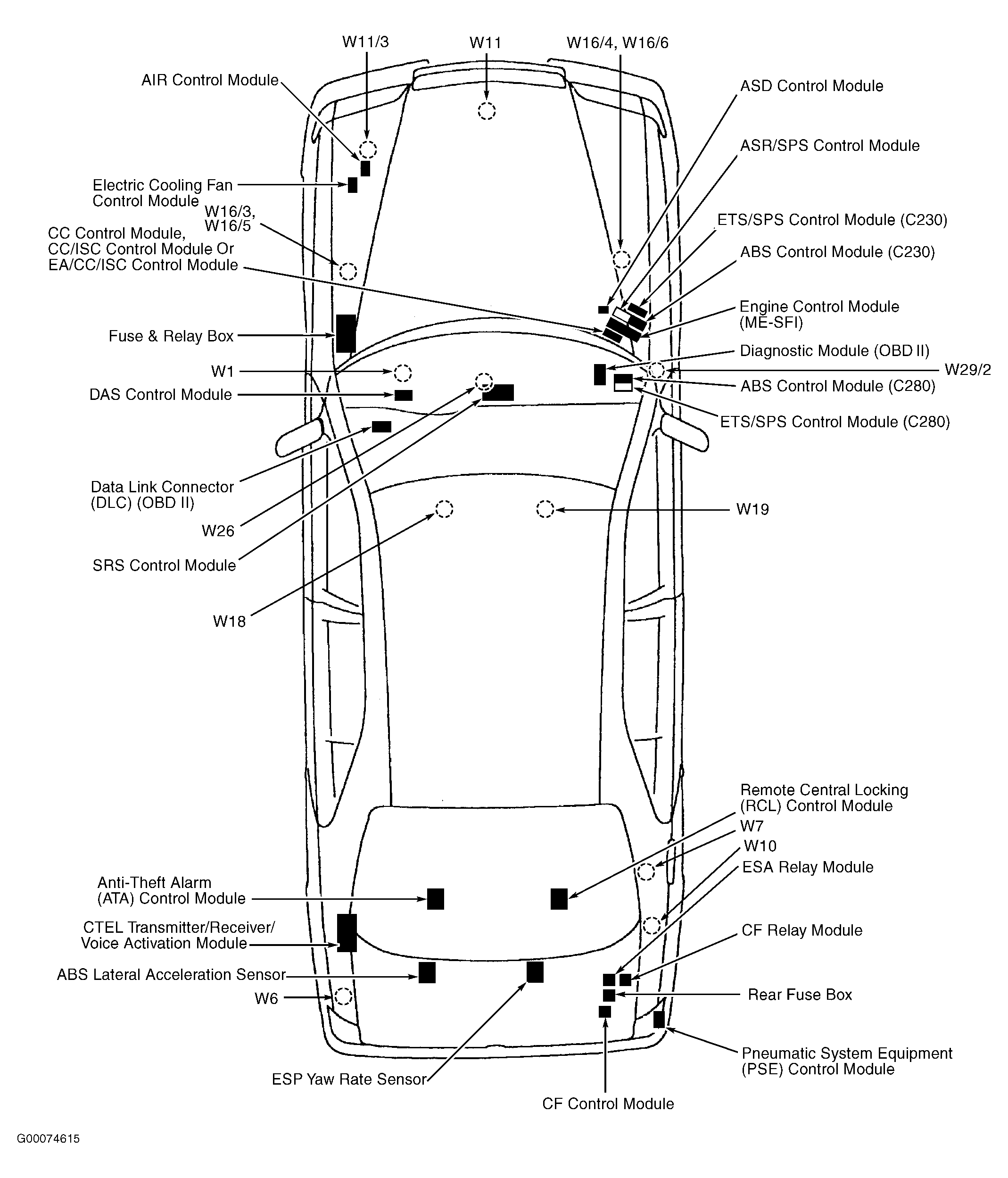

Fuse & Relay Box On left rear of engine compartment. See Figure .
Maxi-Fuse Box In fuse & relay box.
Passenger's Side Fuse & Relay Module Box On right rear of engine compartment.
Rear Fuse Box On right side of trunk. See Figure .
