Electronic ignition switch control module, testing electrical system (RFL/RCL) - AD80.35-P-6000-35A

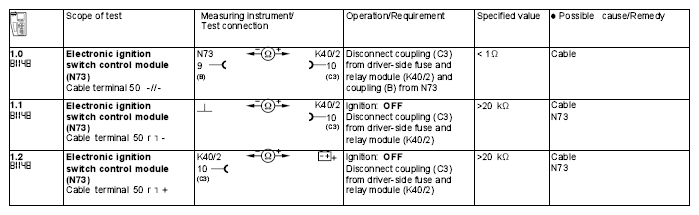

Fig 1: Electronic Ignition Switch Control Module, Testing Electrical System (RFL/RCL) Table
