IFI [ERE] quantity control function - GF07.12-P-3015HA
ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610
ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
To increase or decrease fuel supply in relation to the position of the accelerator pedal.
Function

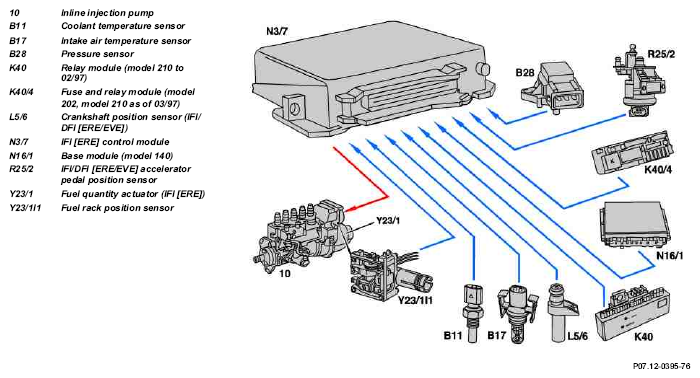

The IFI [ERE] control module (N3/7) receives the required signals from the components listed below and regulates the fuel quantity via the fuel quantity actuator (IFI [ERE]) (Y23/1) and the control rod.
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module location/task/design/function | Model 210 to 02/97 | GF07.13-P-3101H | |
| IFI [ERE] control module location/task/function | GF07.12-P-3102HA | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| Fuel quantity actuator (IFI [ERE]) location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H | ||
| Accelerator pedal position sensor location/task/design/function | GF07.04-P-5029H | ||
| Coolant temperature sensor location/task/design/function | GF07.04-P-5026C | ||
| Intake air temperature sensor location/task/design/function | GF07.04-P-2100H | ||
| Pressure sensor location/task/design/function | GF07.04-P-5014H |
