Heated seats (HS), function - GF91.30-P-0003S
MODEL 220 with CODE (872) Electrically heated left and right rear seats
MODEL 220 with CODE (873) Heated left and right front seats

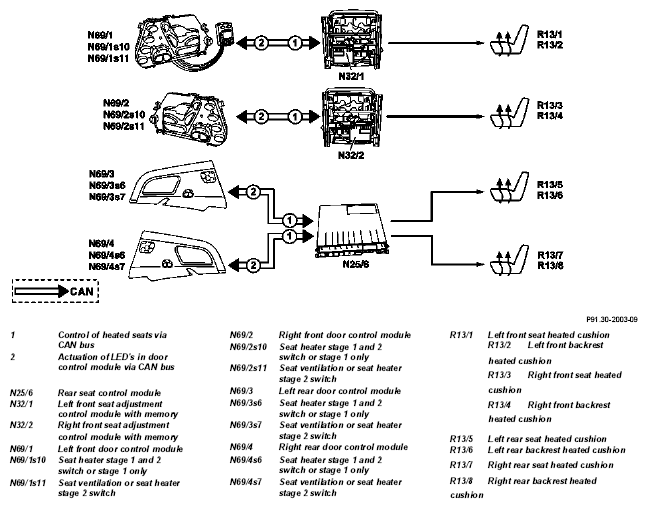

Front heated seats
The left/right front heated seats allow the seat cushion and backrest to be heated in two heating stages.
The heated seats can be controlled with one of the two switches on the left front door control module (N69/1)/right front door control module (N69/2) . The operating states are indicated by two (three) LED's located above the switches. The resistors are heated by a pulsed voltage (20 - 30 Hz) from the left front seat adjustment control module with memory (N32/1)/right front seat adjustment control module with memory (N32/2) . The ON/OFF ratio for the voltage is 27 % in heating stage I and 100 % in heating stage II.
Switch-off can be accomplished either manually by pressing the switch or time controlled by the associated control module.
Rear heated seats
(The rear heated seat function is identical to the front heated seats). Control is possible with one (two) switch(es) in the left rear door control module (N69/3)/right rear door control module (N69/4) . The heater resistors are heated by a pulse voltage from the rear seat control module (N25/6) (see front heated seats).
| Heating mode, function | GF91.30-P-2003S | ||
| Terminating heating mode, function | GF91.30-P-2004S | ||
| Heated seat switch/seat ventilation switch, location/purpose | GF91.30-P-3004S | ||
| Left front door control module, location/ purpose/design/function | GF72.29-P-4105S | ||
| Right front door control module, location/ purpose/design/function | GF72.29-P-4106S | ||
| Rear door control module, location/purpose/ design/function | GF72.29-P-4102S | ||
| Left front seat adjustment control module with memory, location/purpose | GF91.29-P-2106S | ||
| Right front seat adjustment control module with memory, location/purpose | GF91.29-P-2107S | ||
| Rear seat control module, location/purpose/ design/function | GF91.29-P-2108S |
