ME-SFI control unit position / task / design / function - GF07.61-P-5000H: Notes

ENGINE 112.960 in MODEL 170.466

ENGINE 112.961 in MODEL 203.065 /265

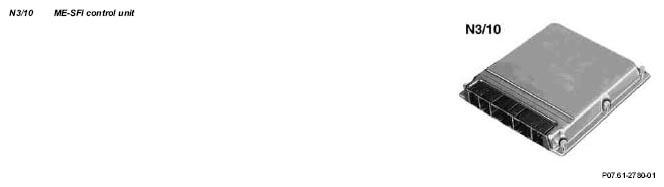

Fig 1: Identifying ME-SFI Control Unit - Engine 112.960

	ME-SFI control unit position	Model 170	GF07.61-P-5000-01H
		Model 203	GF07.61-P-5000-01HP
	ME-SFI control unit task	Controls in line with the input signals the functions of: Ignition system Injection system Electronic accelerator (EA) Emission control system Diagnosis/fault storage Drive authorization system
	ME-SFI control unit design		GF07.61-P-5000-03H
	ME-SFI control unit function		GF07.61-P-5000-02H
