Control Module & Switches

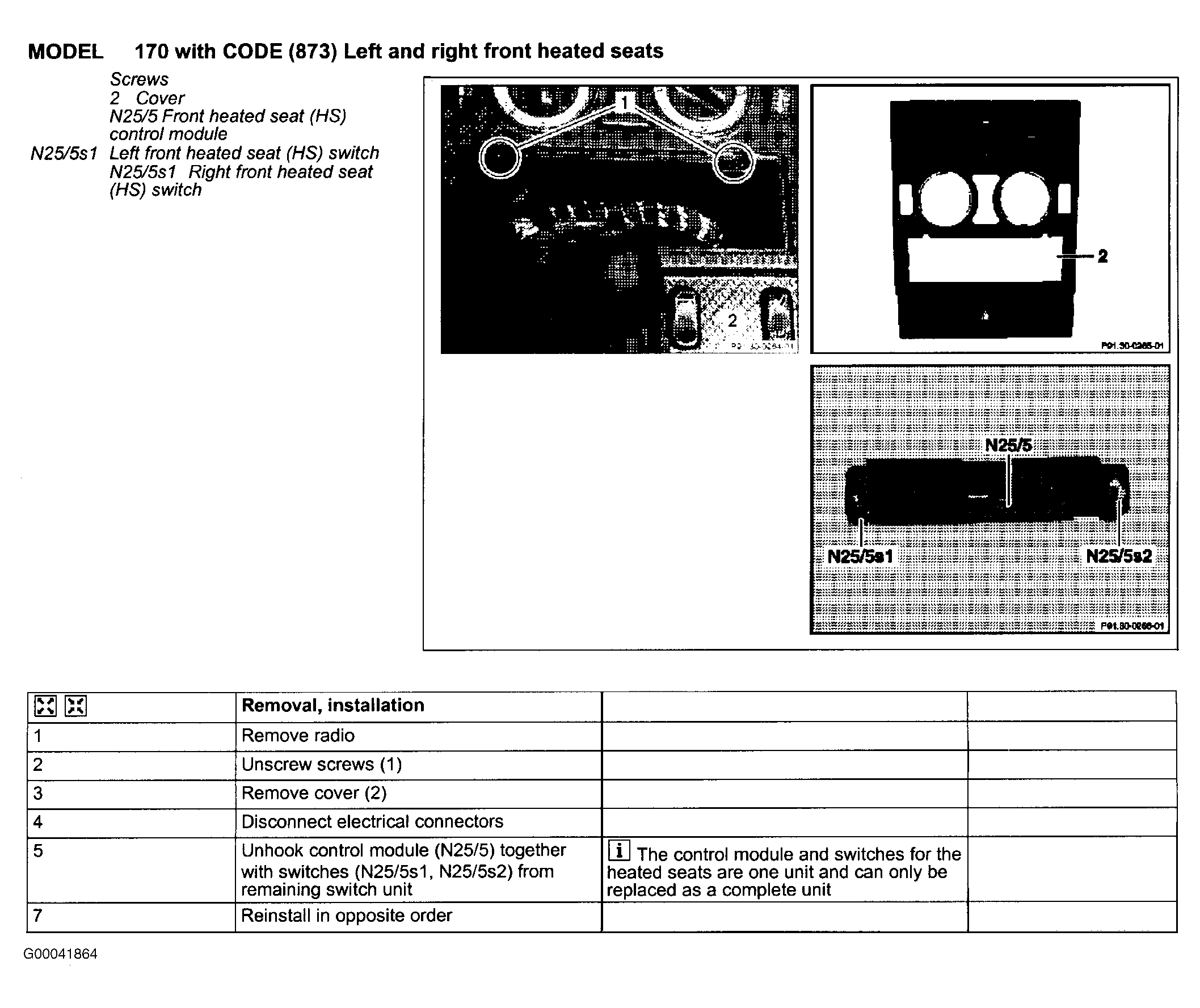

Fig 1: Removing & Installing Control Module & Switches
G00041864Courtesy of DAIMLERCHRYSLER CORPORATION
