Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Right rear of engine compartment. |
| ASR/SPS Control Module | Right rear of engine compartment. See Figure. |
| BAS Control Module | Below master cylinder. |
| Combination Control Module | Right rear of engine compartment. See Figure. |
| Crash Separation Relay Module | In right rear of engine compartment, forward of battery. See Figure. |
| Engine-A/C Cooling Fan Control Module | On left front inner fender panel. See Figure. |
| Engine Control Module (ME-SFI) | Right rear of engine compartment. See Figure. |
| ESP/SPS/BAS Control Module | Right rear of engine compartment. |
| ETC Control Module | At front of passenger's footwell. |
| Garage Door Opener Control Module | Top center of windshield header. See Figure. |
| High Pressure/Return Pump Relay Module | Under fuse & relay box. |
| Illumination Control Module | Integral with headlight switch. |
| Left Front Brake Pad Wear Sensor | On left front brake caliper. |
| Locking Confirmation Relay Module | At rear of fuse & relay box. |

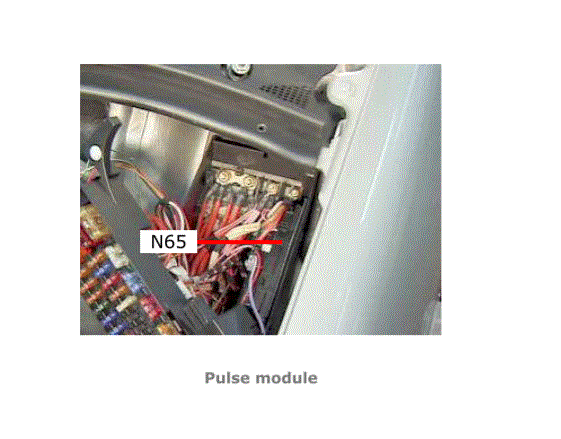

| Pulse Module | At rear of fuse & relay box. See Figure. |
| Radio Frequency DAS Control Module | Behind instrument cluster, above steering column. See Figure. |
| Relay Module | In right rear of engine compartment, near battery. See Figure. |
| Right Front Brake Pad Wear Sensor | On left front brake caliper. |
| SRS Control Module | Beneath center console, near shifter lever. See Figure. |

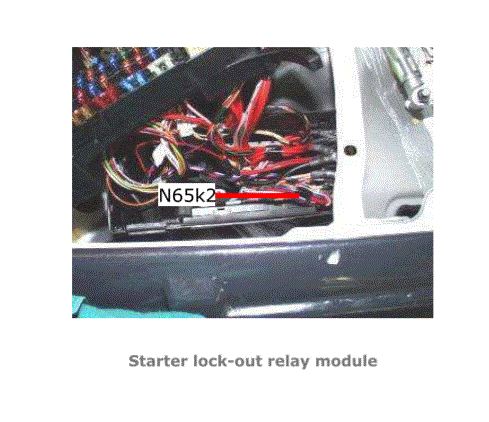

| Starter Lockout Relay Module | Under fuse & relay box. See Figure. |
| Transmission Control Module | On plate at front of passenger's footwell. See Figure. |
