R/P Lock, Location/Task/Design/Function: Notes
- R/P Lock, Location

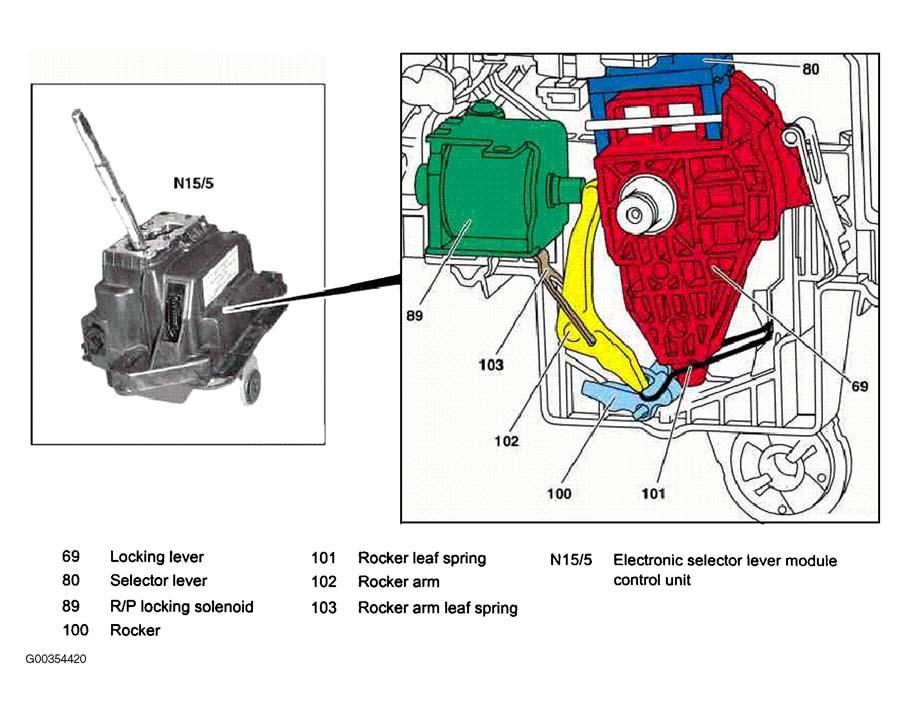

The R/P lock is integrated in the electronic selector lever module control unit (N15/5). See Fig 1.
- R/P Lock, Task
Depending on the prerequisite, the R/P-lockout prevents a shift out of selector lever position "P" or a changeover to selector lever position "R" from "N".
- R/P Lock, Design
The R/P lock consists of:
- Locking Lever (69)
- R/P Locking Solenoid (89)
- Rocker (100)
- Leaf Spring Of Rocker (101)
- Rocker Arm (102)
- Leaf Spring Of Rocker Arm (103)
- R/P Lock, Function
See
REVERSE/PARK LOCK, FUNCTION .
